Description

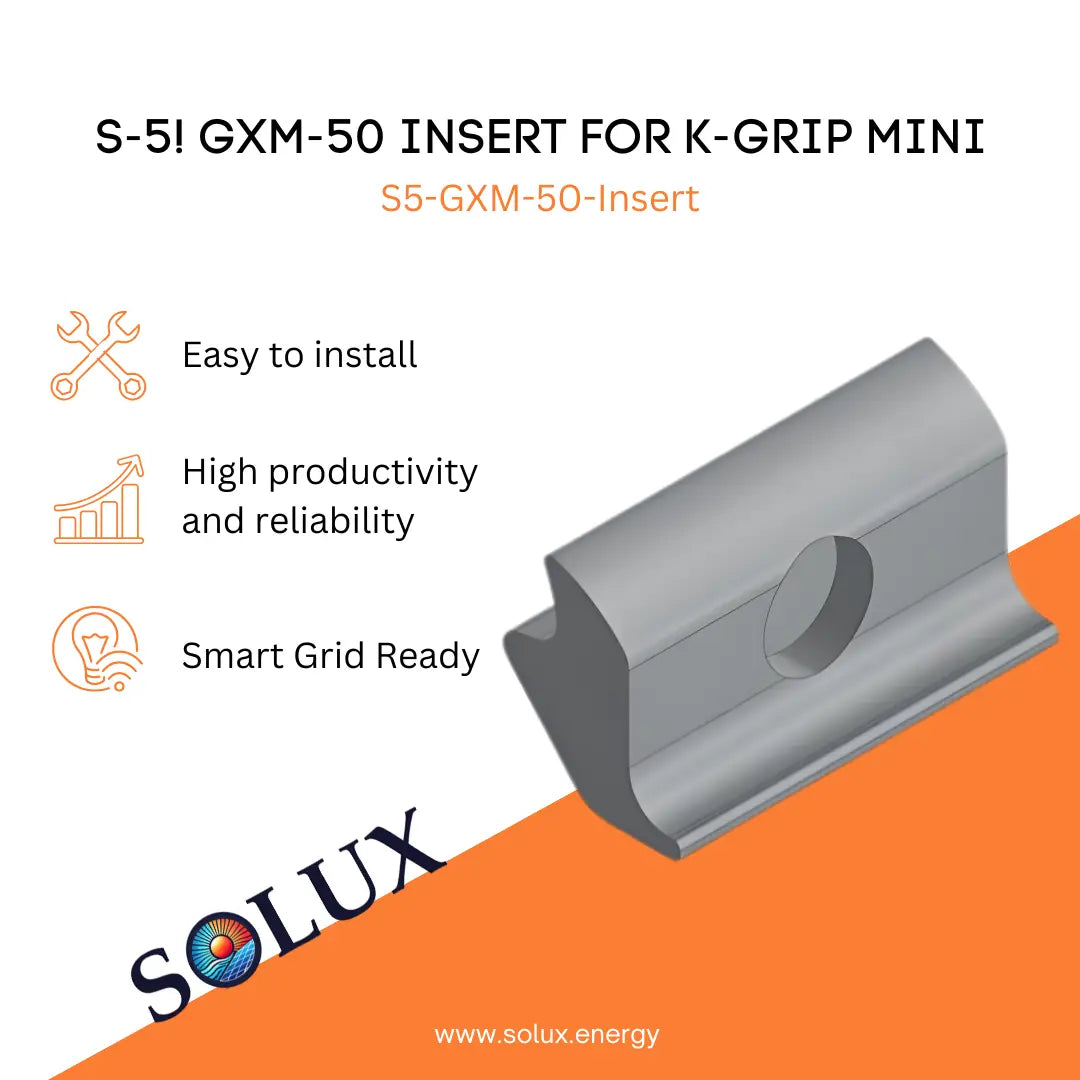

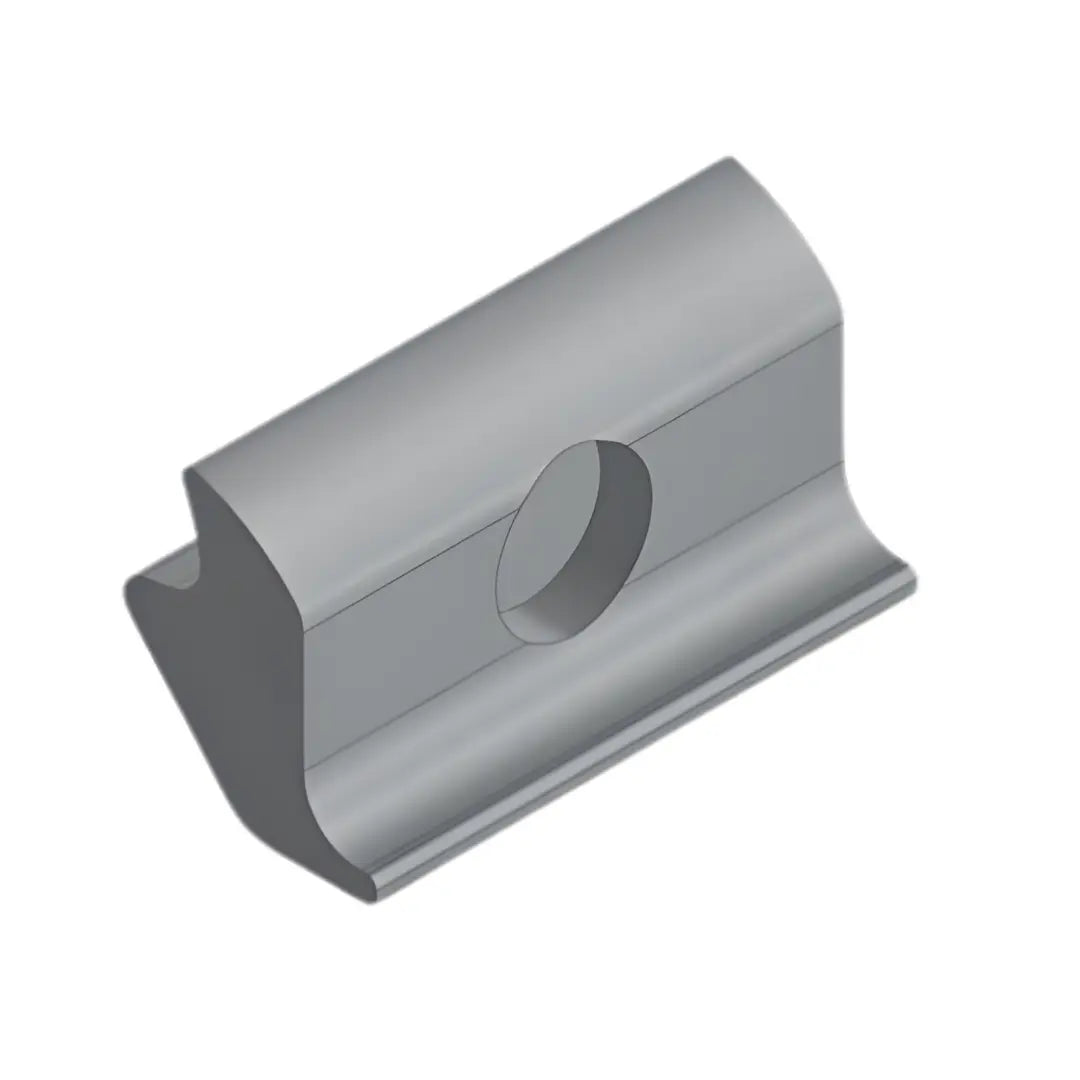

S-5! S-5-GXM 50 Insert Insert for K-Grip Mini products (must be ordered with K-Grip Mini)
The S-5-GXM-50 Insert is a profile-specific aluminum adapter insert designed for use inside the S-5-K Grip Mini clamp system. It allows the clamp to properly engage and secure onto specific standing seam metal roof profiles with larger or differently shaped seam geometries.
Key Specifications:
- Manufacturer Part Number: S-5-GXM 50 Inserts
- Manufacturer Warranty: 50 Years
- Performance Warranty: Lifetime Warranty
- Shipping Weight: 28.6 lb
- Shipping Dimensions: 14 x 10 x 8 in
- Case Qty: 200
-
Downloads

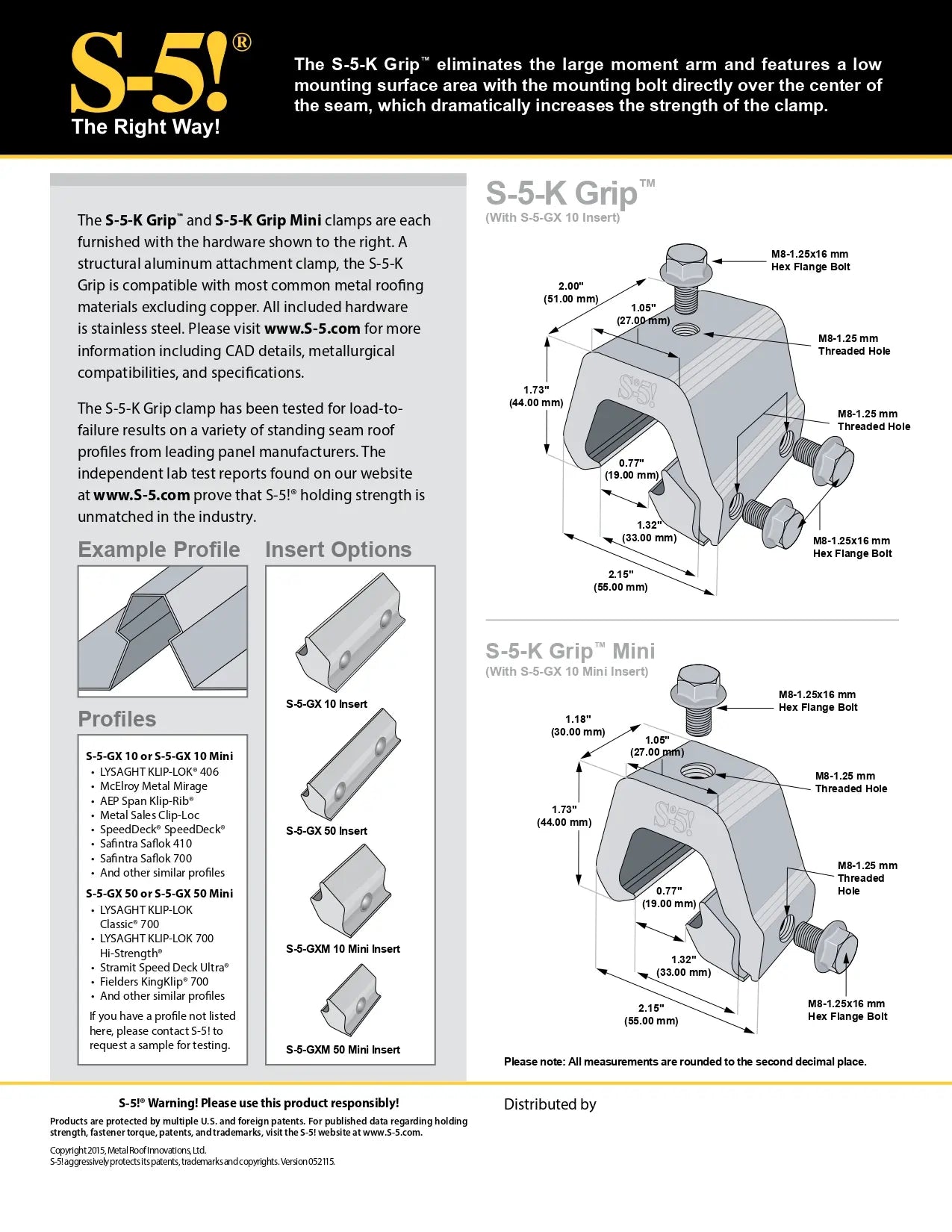

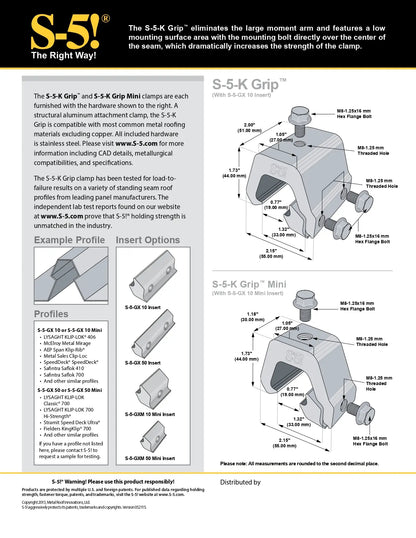

Datasheet
✔️ Datasheet
Quick Installation Guide
No Quick Installation guide available. Email support@solux.energy for file request.
Warranty
✔️ Warranty
Download Spec Sheet
Designed in compliance with applicable BCI, DIN, BS and IEC standards. Tested in compliance to BCI and IEC standards.
