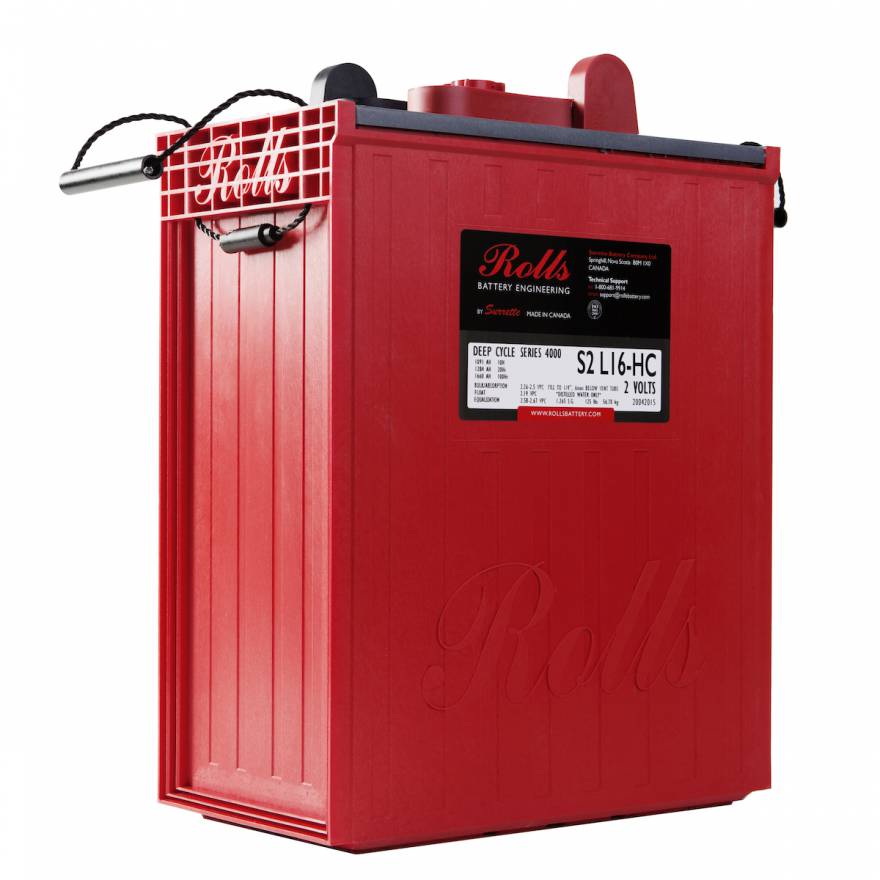

Rolls Surrette S2-L16-HC 2VDC 1335Ah Flooded Deep Cycle Battery

Rolls Surrette Battery S2 L16

Designed in compliance with applicable BCI, DIN, BS & IEC standards. Tested in BCI and IEC standards.

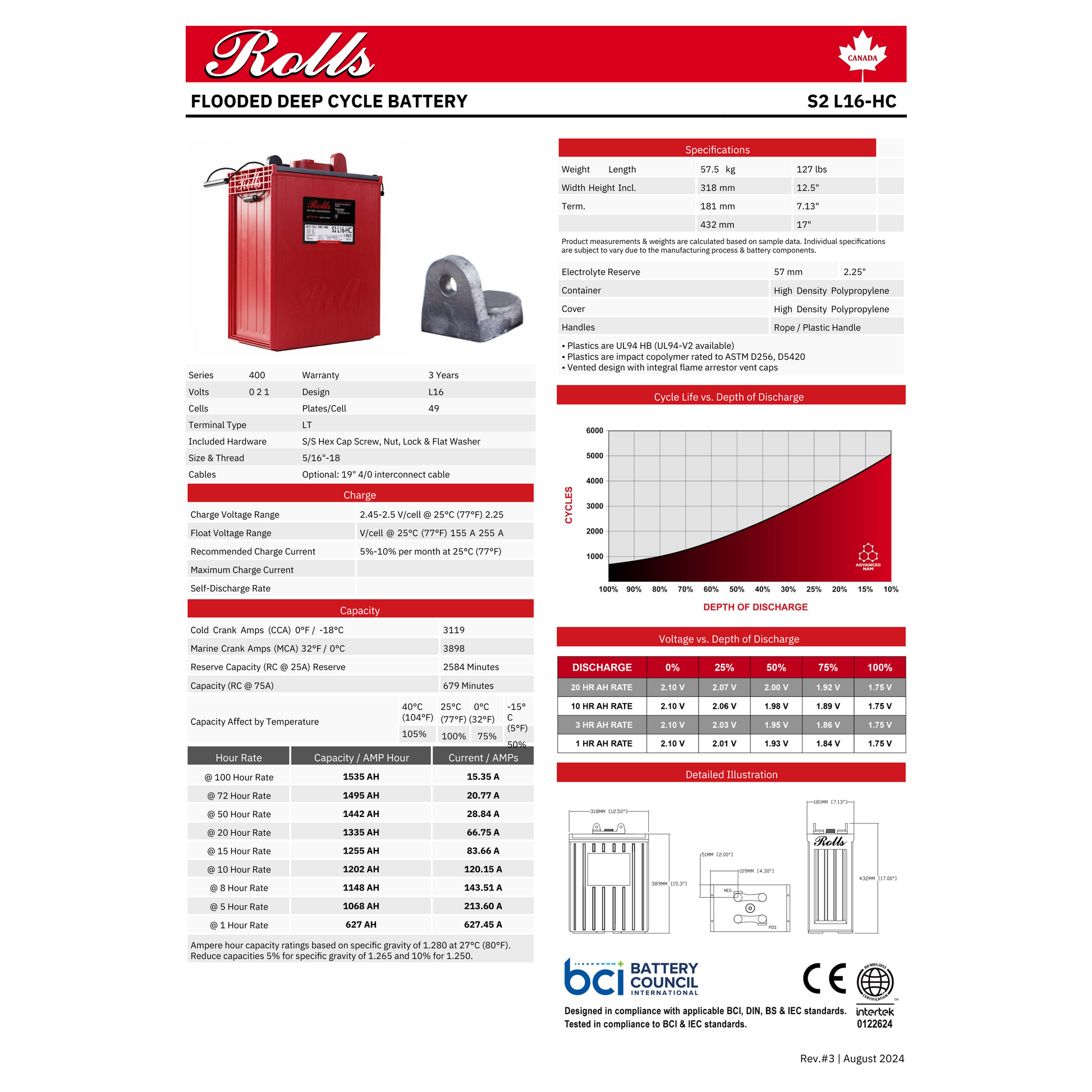

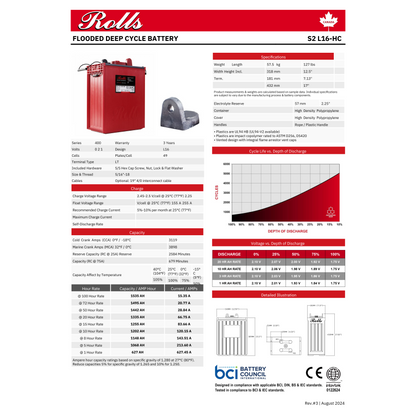

Technical Specifications:

• Weight: 57.5 kg/127 lbs
• Length: 318 mm/12.5"
• Width: 181 mm/7.13"
• Height Incl. Term.: 432 mm/17"
• Electrolyte Reserve: 57 mm/2.25"
• Container: High Density Polypropylene
• Cover: High Density Polypropylene
• Handles: Rope / Plastic Handle
• Series: 4000
• Volts: 2
• Design: L16
• Cells: 1
• Plates/Cell : 49
• Terminal Type: LT
• Included Hardware: S/S Hex Cap Screw, Nut, Lock & Flat Washer
• Size & Thread: 5/16"-18
• Cables: Optional 19" 4/0 interconnect cable
• Charge Voltage Range: 2.45-2.5 V/cell @ 25°C (77°F)
• Float Voltage Range: 2.25 V/cell @ 25°C (77°F)
• Recommended Charge Current: 155 A
• Maximum Charge Current: 255 A
• Self-Discharge Rate: 5%-10% per month at 25°C (77°F)
• Cold Crank Amps (CCA) 0°F / -18°C: 3119
• Marine Crank Amps (MCA) 32°F / 0°C: 3898
• Reserve Capacity (RC @ 25A): 2584 Minutes
• Reserve Capacity (RC @ 75A): 679 Minutes
• Capacity AMP @ 20 Hour Rate: 1335 Ah
