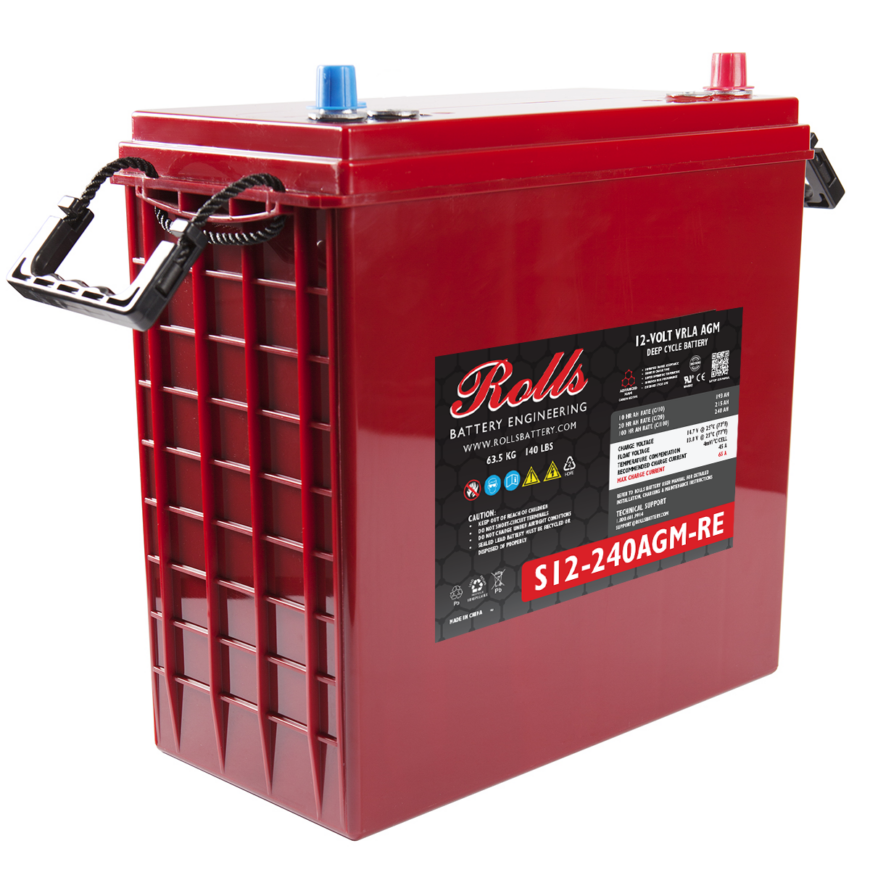

Rolls Surrette Battery S12-240AGM-RE
Designed in compliance with applicable BCI,DIN,BS and IEC standards. Tested in compliance to BCI and IEC standards.
Technical Specifications:
- Weight: 63.5 kg / 140 lbs
- Length: 381 mm / 15"
- Width: 180 mm / 7.09"
- Height Incl. Term.: 370 mm / 14.57"
- Container: ABS
- Cover: ABS
- Handles: Rope / Plastic Handle
- Series: AGM-S
- Volts: 12
- Design: J185
- Cells: 6
- Terminal Type: F23(M8)
- Included Hardware: M8 stainless bolts & washers
- Size & Thread: M8
- Charge Voltage Range: 14.7V @ 25°C (77°F)
- Float Voltage Range: 13.8V @ 25°C (77°F)
- Recommended Charge Current:45 A
- Maximum Charge Current: 65 A
- Self-Discharge Rate: Less than 2% per month at 25°C (77°F)
- Internal Resistance: 2.3 mΩ
- Cold Crank Amps (CCA) 0°F / -18°C: 1000
- Marine Crank Amps (MCA) 32°F / 0°C: 1200
- Reserve Capacity (RC @ 25A): 420 Minutes
- Reserve Capacity (RC @ 75A): 110 Minutes
- Capacity AMP @ 20 Hour Rate: 215 Ah
-
Downloads
Datasheet
✔️ Download Datasheet
Quick Installation Guide
No installation guide available. Email support@solux.energy for file request.
Warranty
See warranty terms.

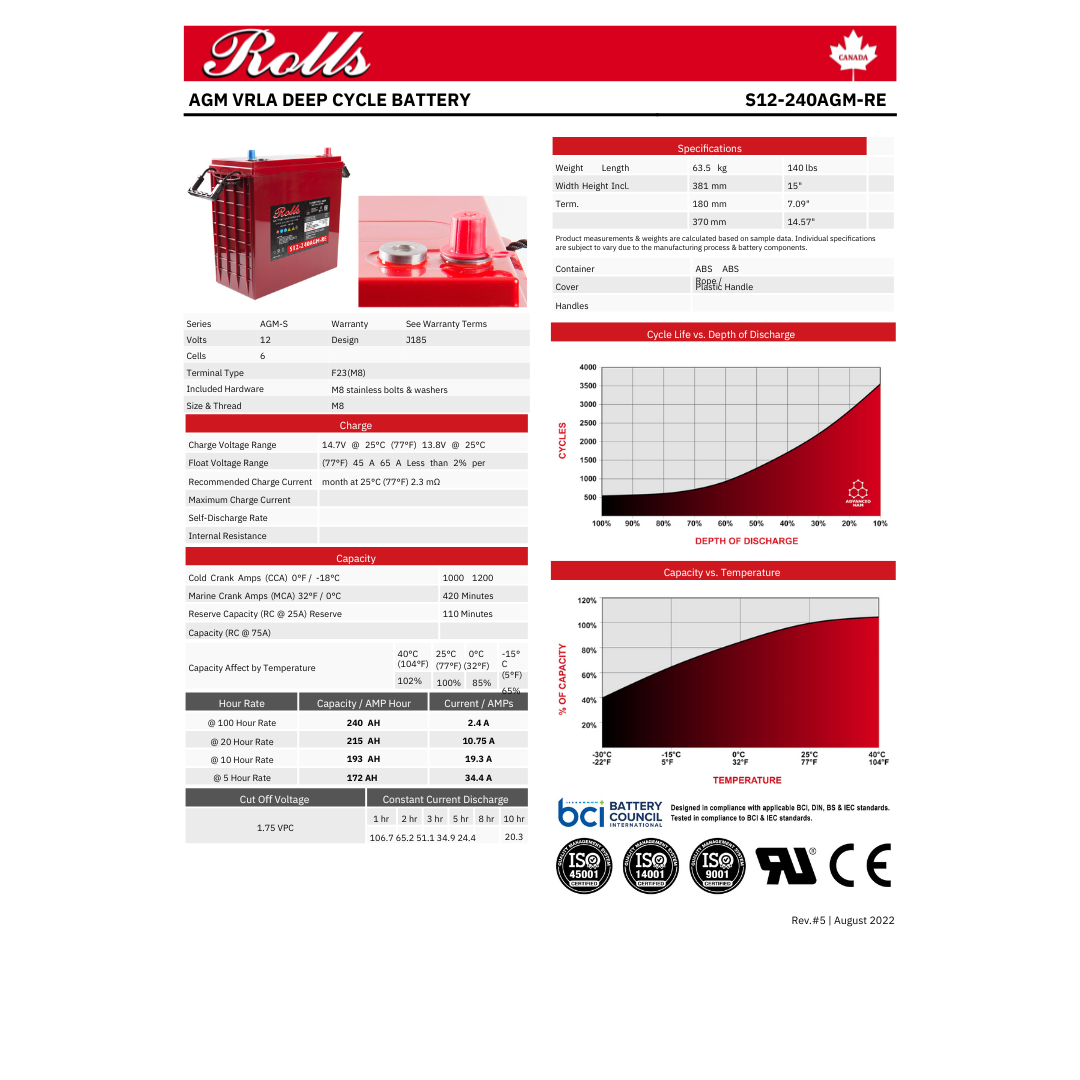

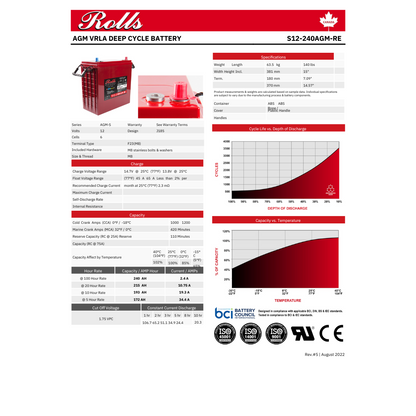

Download Spec Sheet
Designed in compliance with applicable BCI, DIN, BS and IEC standards. Tested in compliance to BCI and IEC standards.
