Description

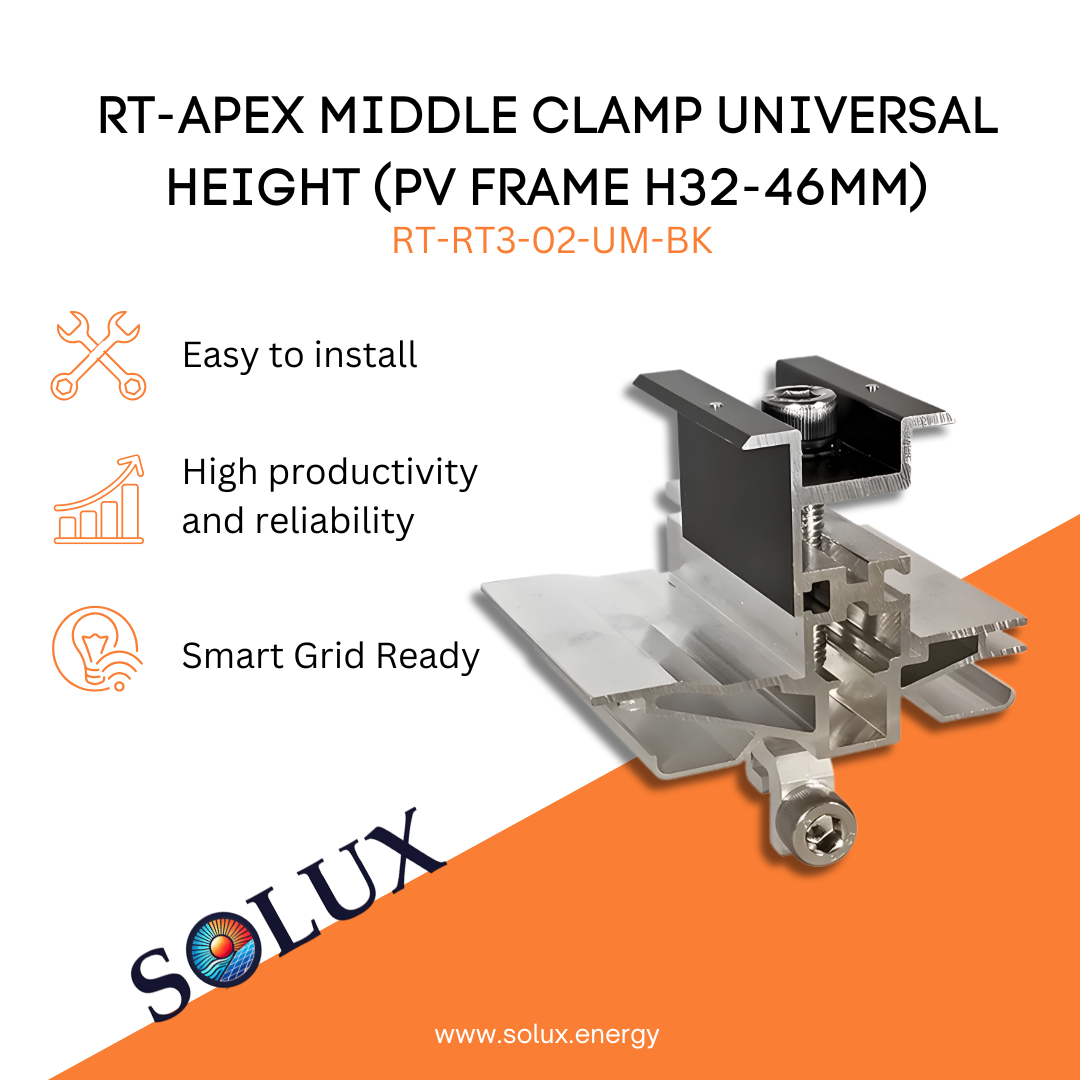

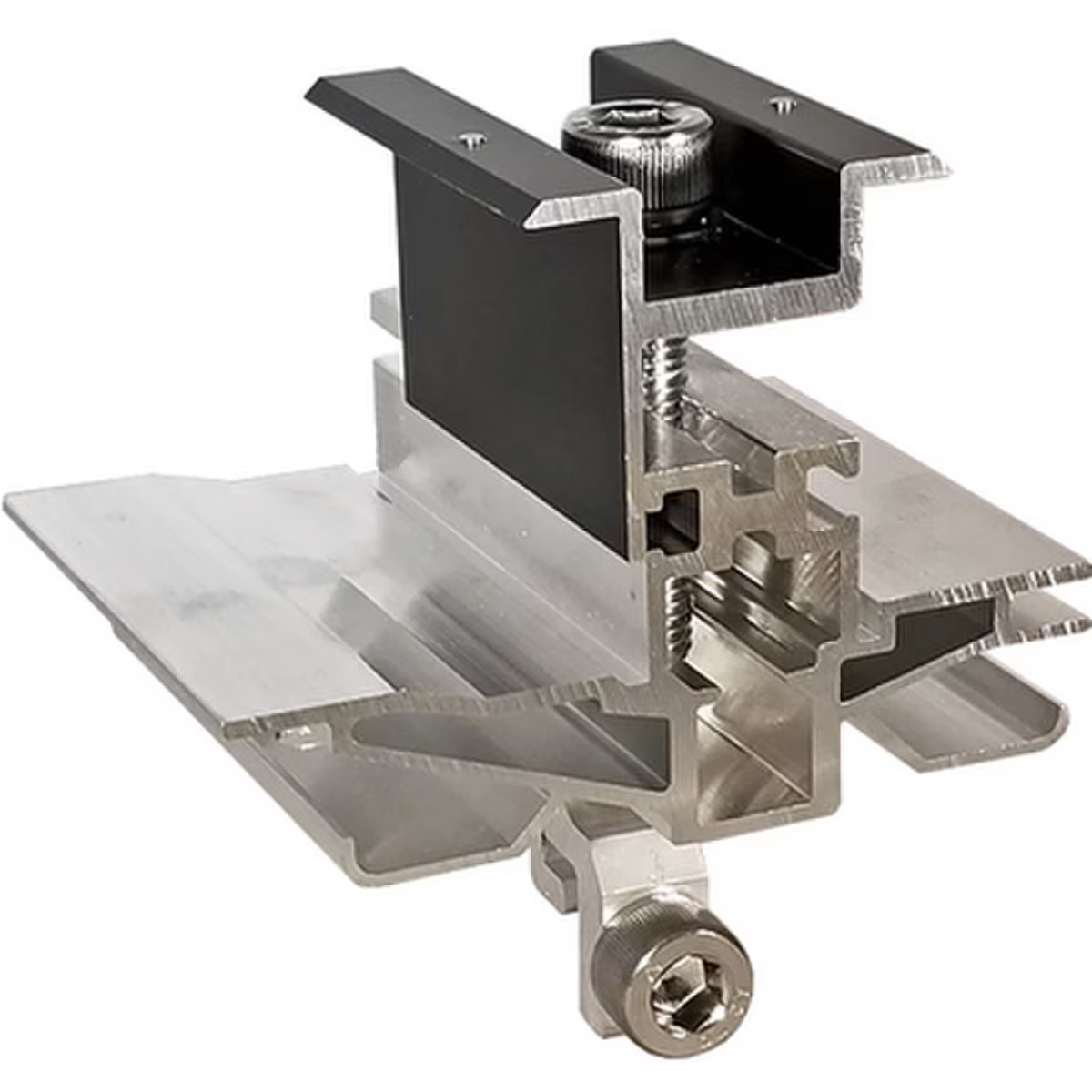

Roof Tech RT-Apex Middle Clamp - (RT3-02-UM-BK)
The core mounting component for secure, rail-less solar arrays. The RT-Apex Middle Clamp is designed to fasten solar modules to the mounting base while providing automatic electrical bonding. Its high-strength, low-profile design ensures a fast installation and a clean, professional appearance.
Product Highlights:
- Universal Clamping: One-size-fits-all design accommodates PV frame heights from 30mm to 46mm.
- Streamlined Install: Simple slide-and-tighten mechanism reduces time spent on the roof.
- Integrated Bonding: Provides automatic electrical continuity between adjacent modules.
- Weather-Resistant: Durable black anodized finish designed for long-term exposure in harsh climates.
- High Load Capacity: Engineered for extreme wind (180 mph) and snow (90 PSF) environments.
Logistics & Ordering Info:
- Manufacturer Part Number: RT3-02-UM-BK
- Shipping Weight: 9.6 lb
- Shipping Dimensions: 18.5 x 9.5 x 5 in
- Case Qty: 3
- Pallet Qty: 96
-
Downloads

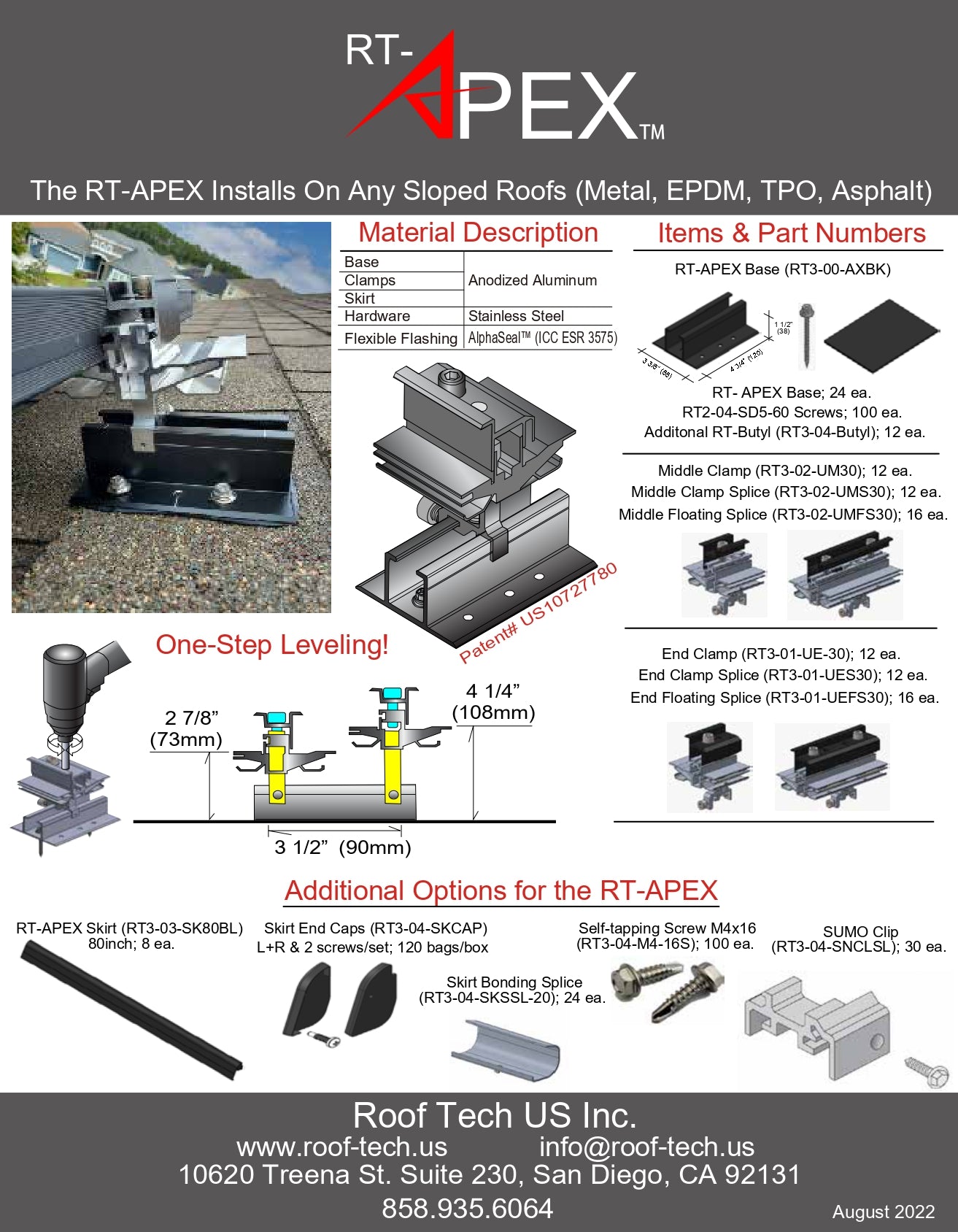

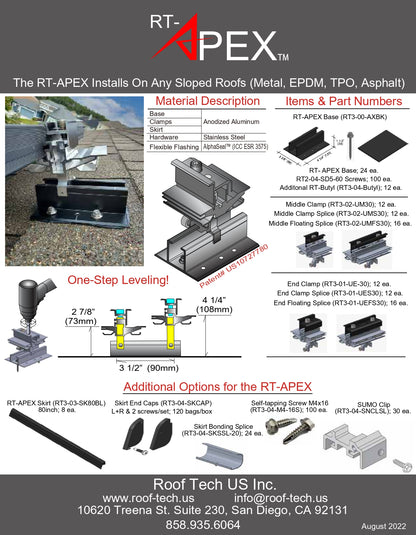

Download Spec Sheet
Designed in compliance with applicable BCI, DIN, BS and IEC standards. Tested in compliance to BCI and IEC standards.
