Yaskawa Solectria Solar RSD-APS-EYEP Multifunctional Rapid Shutdown Signal Detector

SLCT RSD-APS-EYEP MULTIFUNCTIONAL

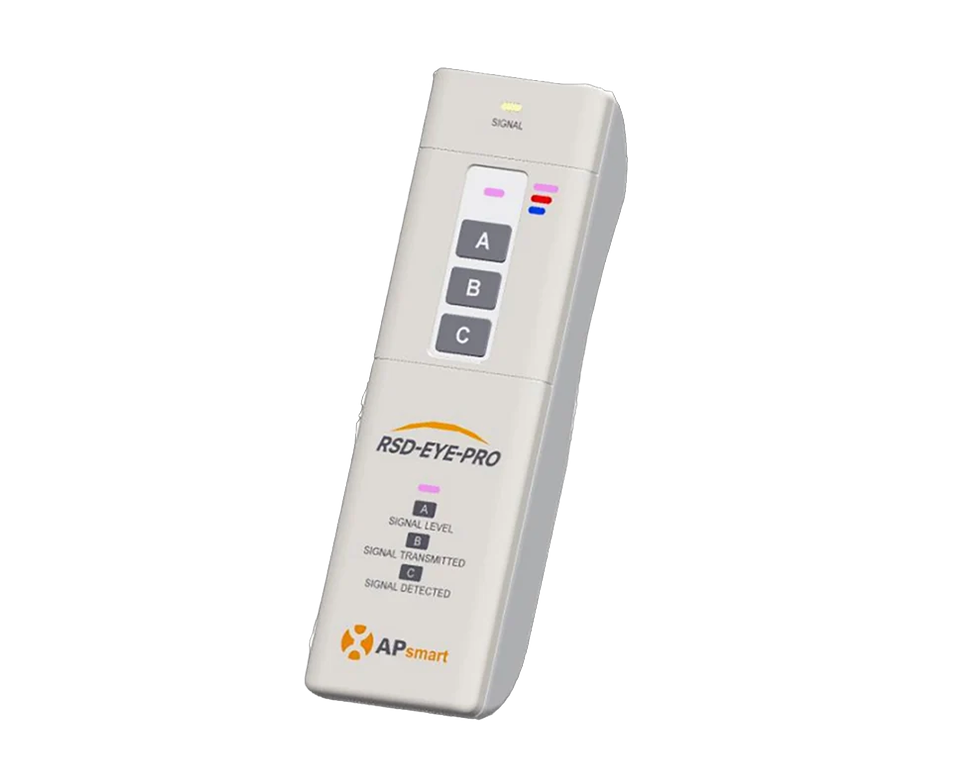

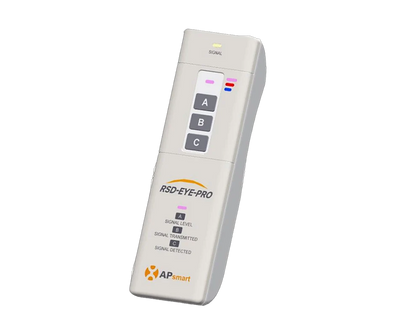

The Yaskawa Solectria RSD-APS-EYEP (OEM: APsmart RSD-EYE-PRO) is a compact, handheld diagnostic tool engineered to verify and troubleshoot SunSpec-compliant Rapid Shutdown (RSD) installations.

Designed for field technicians and solar installers, it senses pulse modulation from Power Line Communication (PLC) signals between the system transmitter and RSD receivers. In addition to signal detection, the RSD-EYE-PRO functions as a handheld transmitter, sending a local keep-alive signal directly to an RSD unit to verify proper operation and pinpoint system fault points.

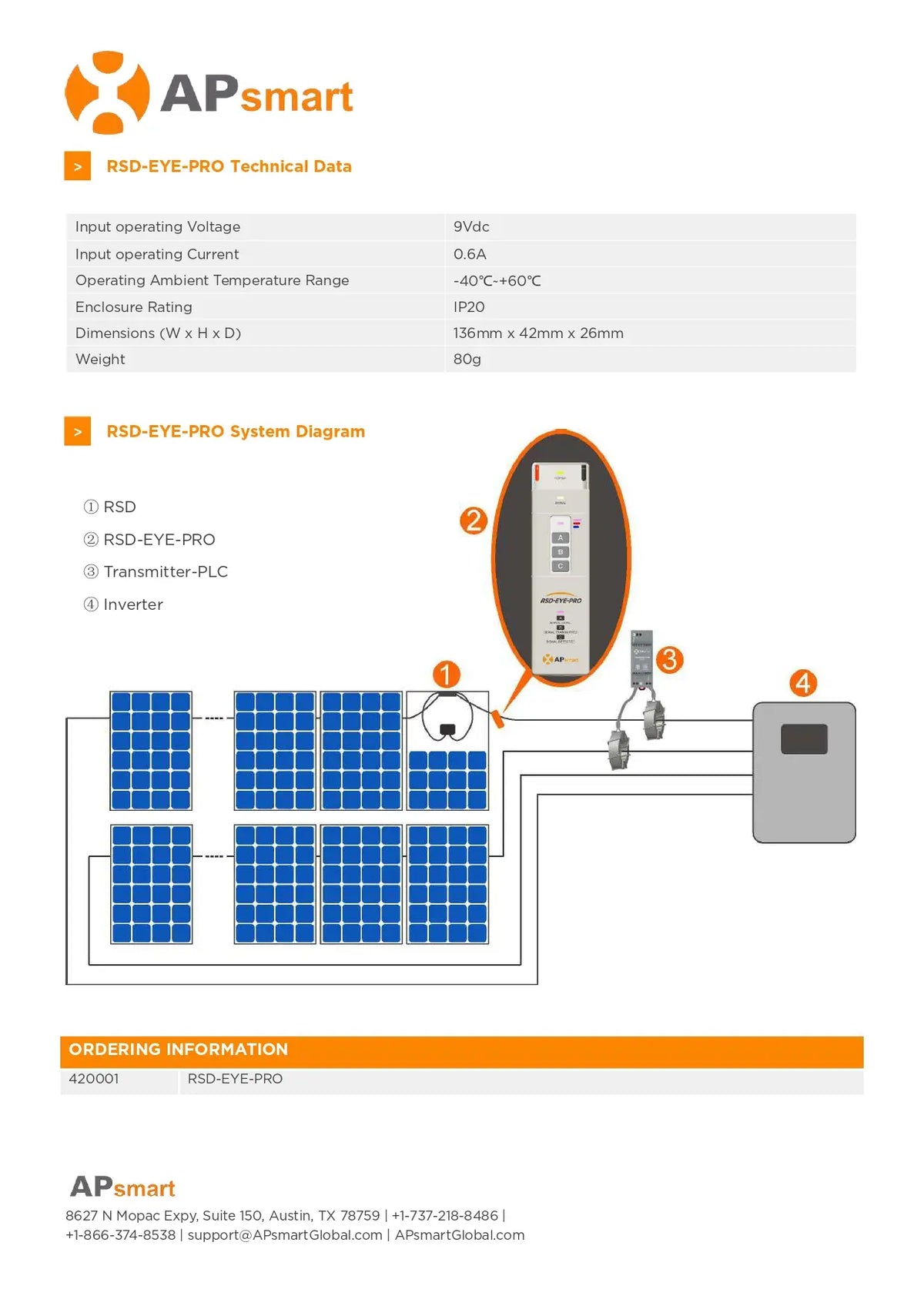

Specifications:

• Manufacturer Part Number: RSD-APS-EYEP
• Product Type: Solar Rapid Shutdown Signal Detector (RSD Signal Detector)

Mechanical:

• Manufacturer Part Number (MPN): RSD-APS-EYEP
• OEM Model: APsmart RSD-EYE-PRO (RSD-EYE+)
• Supported Protocol: SunSpec Alliance Rapid Shutdown PLC
• Operating current: 0.1 A
• Operating temperature: −40°C to +60°C
• Enclosure rating: IP20
• Dimensions: 136 × 42 × 26 mm
• Weight: 240 g
• Power source: 9 V battery
