Rolls Surrette 12-EHG-375P 12VDC 375Ah Deep Cycle Battery

Rolls Surrette Battery 12 EHG 375P

Designed in compliance with applicable BCI,DIN,BS and IEC standards.
Tested in compliance to BCI and IEC standards.

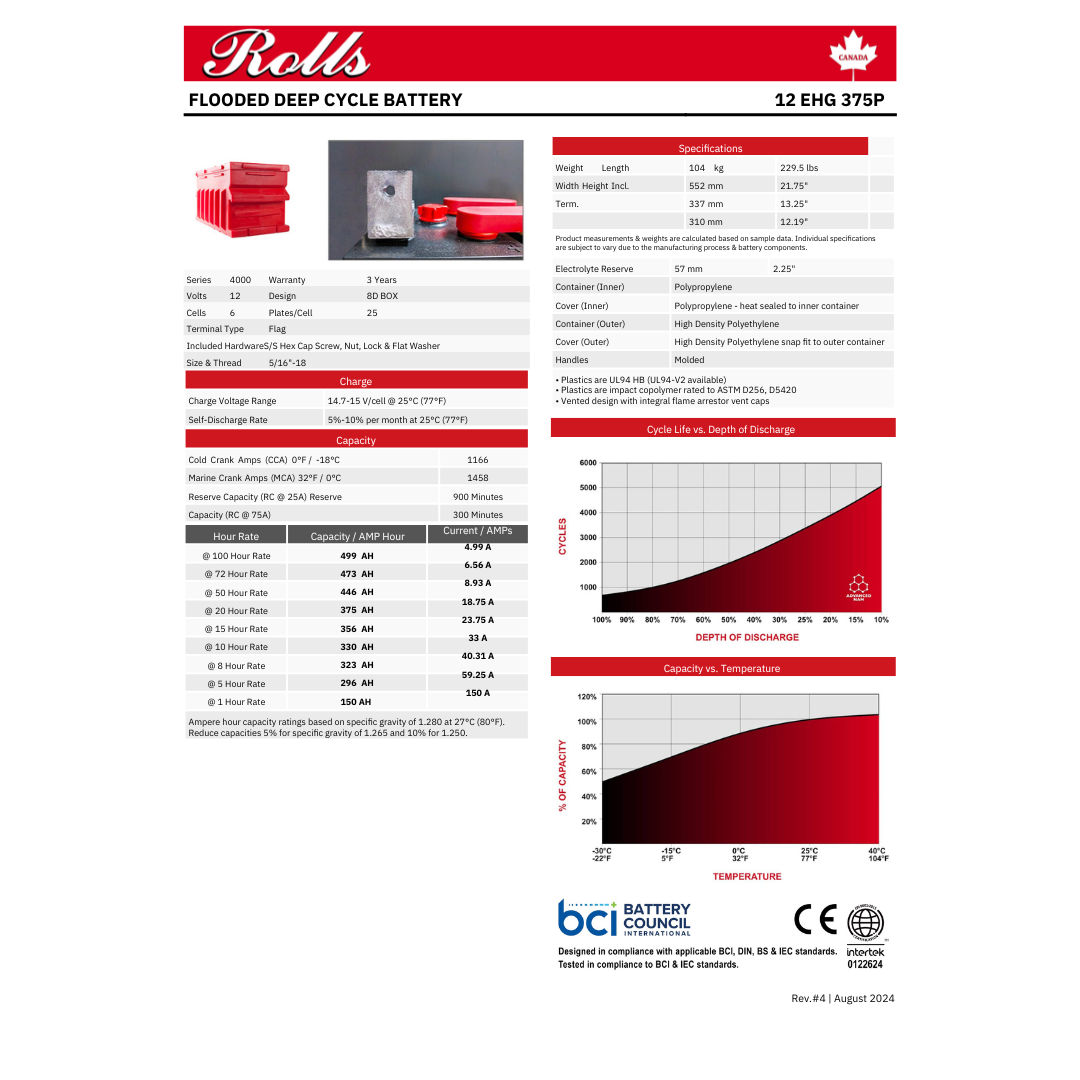

Technical Specifications:

• Weight: 104 kg / 229.5 lbs
• Length: 552 mm / 21.75"
• Width: 337 mm / 13.25"
• Height Incl. Term.: 310 mm / 12.19"
• Electrolyte Reserve: 57 mm / 2.25"
• Container (Inner): Polypropylene
• Cover (Inner): Polypropylene - heat sealed to inner container
• Container (Outer): High Density Polyethylene
• Cover (Outer): High Density Polyethylene snap fit to outer container
• Handles : Molded
• Series: 4000
• Volts: 12
• Design: 8D BOX
• Cells: 6
• Plates/Cell: 25
• Terminal Type: Flag
• Included Hardware: S/S Hex Cap Screw, Nut, Lock & Flat Washer
• Size & Thread: 5/16"-18
• Charge Voltage Range: 14.7-15 V/cell @ 25°C (77°F)
• Self-Discharge Rate: 5%-10% per month at 25°C (77°F)
• Cold Crank Amps (CCA) 0°F / -18°C: 1166
• Marine Crank Amps (MCA) 32°F / 0°C: 1458
• Reserve Capacity (RC @ 25A): 900 Minutes
• Reserve Capacity (RC @ 75A): 300 Minutes
• Capacity AMP @ 20 Hour Rate: 375 Ah
