Description
Rolls Surrette Battery R12-200AGM
Designed in compliance with applicable BCI,DIN,BS and IEC standards. Tested in compliance to BCI and IEC standards.
Technical Specifications:
- Weight: 60 kg / 132 lb
- Length: 522 mm / 20.55"
- Width: 240 mm / 9.45"
- Height Incl. Term.: 225 mm / 8.86"
- Container: ABS
- Cover: ABS
- Handles: Rope
- Series: AGM-R
- Volts: 12
- Design: SPEC
- Cells: 6
- Terminal Type: F10(M8) and TP08 Adapter [+21mm]
- Included Hardware: M8 stainless bolts & washers & TP08 adapter
- Size & Thread: M8
- Recommended Charge Current: 40 A
- Maximum Charge Current: 60 A
- Self-Discharge Rate: Less than 2% per month at 25°C (77°F)
- Cold Crank Amps (CCA) 0°F / -18°C: 1100
- Marine Crank Amps (MCA) 32°F / 0°C: 1380
- Reserve Capacity (RC @ 25A): 380 Minutes
- Reserve Capacity (RC @ 75A): 100 Minutes
- Capacity AMP @ 20 Hour Rate: 200Ah
-
Resources

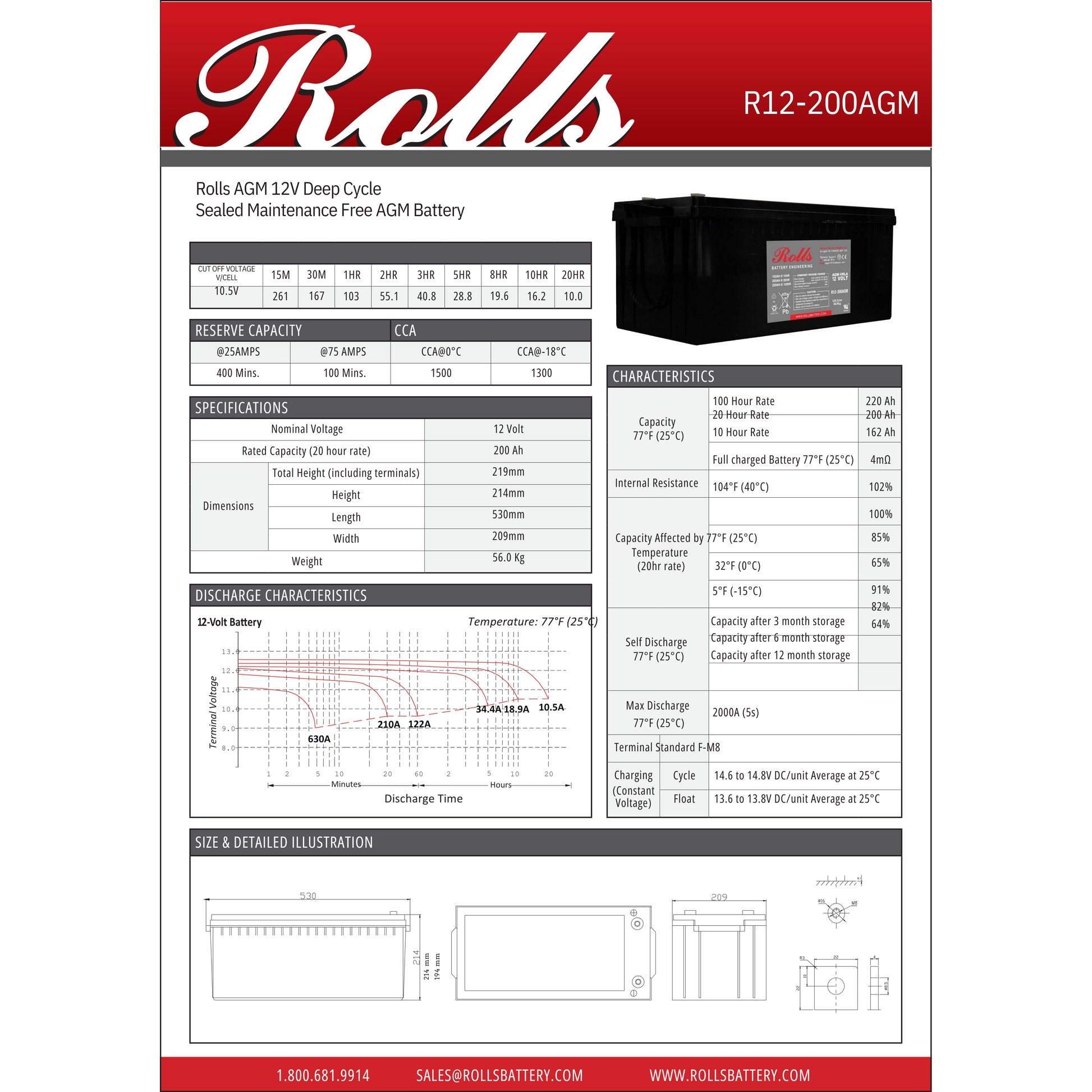

Datasheet
✔️ Download Datasheet
Quick Installation Guide
No installation guide available. Email support@solux.energy for file request.
Warranty
2 Years Warranty
Download Spec Sheet
Designed in compliance with applicable BCI, DIN, BS and IEC standards. Tested in compliance to BCI and IEC standards.
