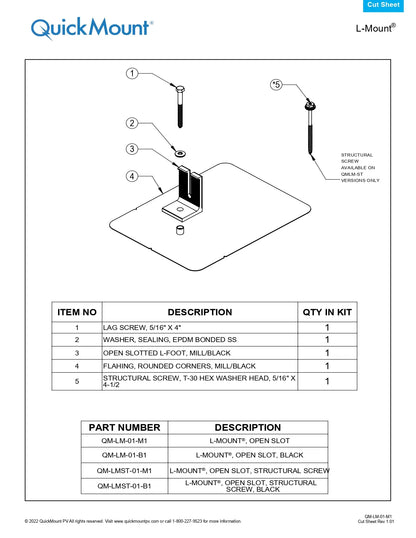

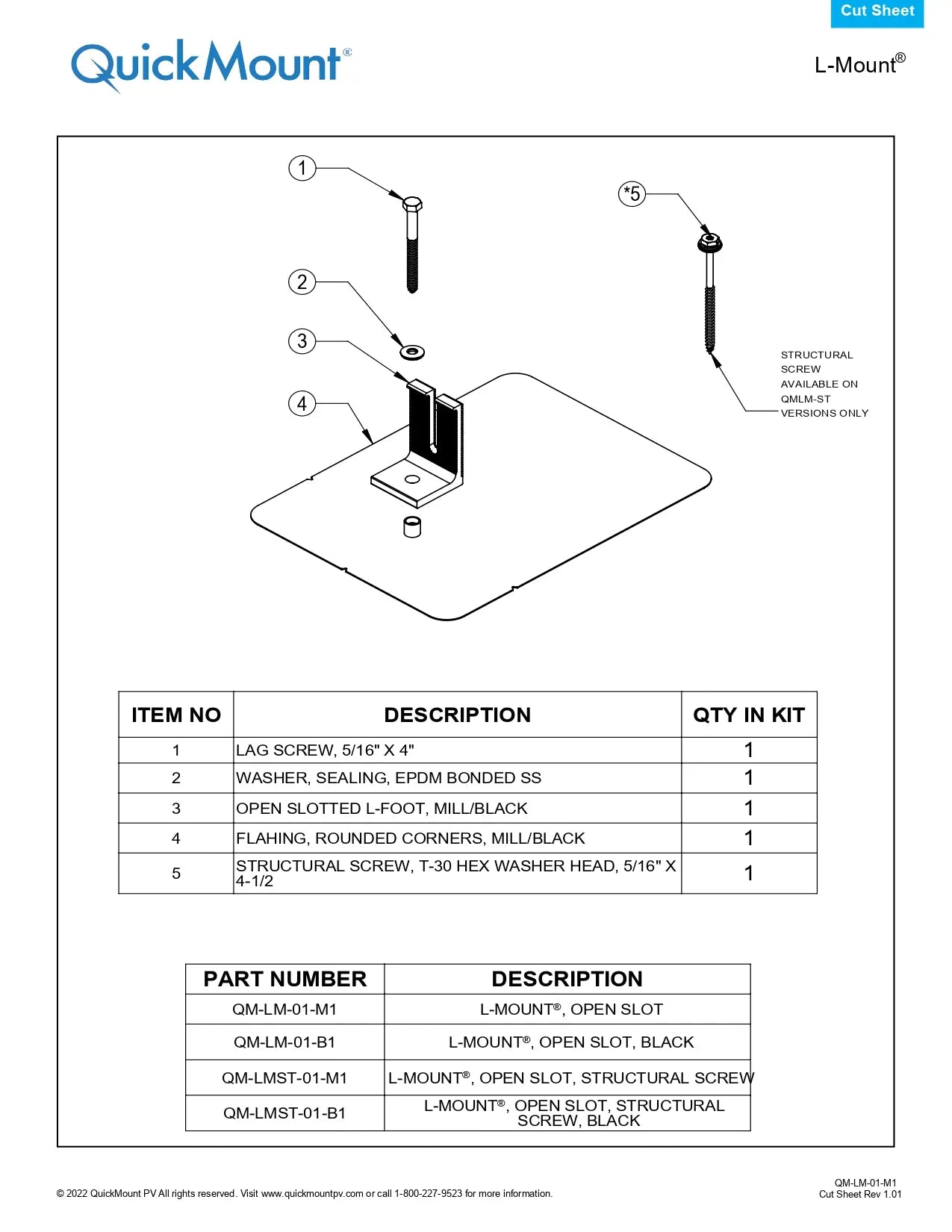

  • Technical engineering cut sheet for the QM-LMST-01-B1 UL 2703 Solar Racking Hardware (L-Mount, Open Slot, Structural Screw, Black), featuring an exploded assembly diagram of the L-foot, flashing plate with rounded corners, and structural wood screw. The document includes a component list specifying the T-30 hex washer head 5/16" x 4-1/2" structural screw and identifies the black-finish part number for residential composition shingle roof applications.

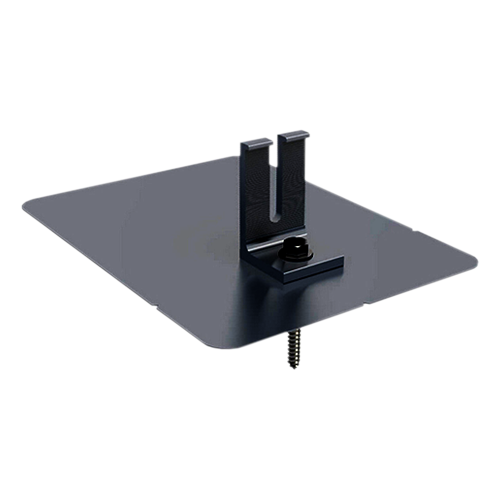

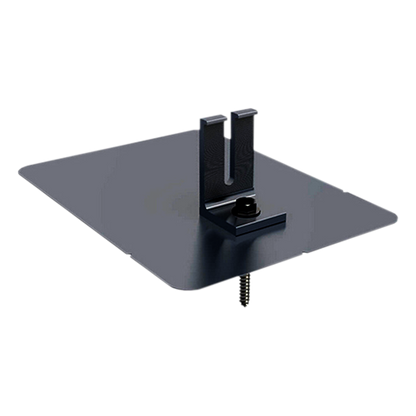

  • Product image of QM-LMST-01-B1: 3D rendering of a black-anodized solar mounting assembly featuring an L-foot bracket with a vertical adjustment slot, secured to a flat square flashing plate with a central bolt and downward-facing screw.
1 3

QuickMount L-Mount, Structural Screw, 9”x12”, Black

$10.82 USD
$10.82 USD
Sale Sold out
Shipping calculated at checkout.

Features / Description:

The L‑Mount, Structural Screw, 9” x 12”, Black (QM‑LMST‑01‑B1) is a roof attachment flashing kit from IronRidge engineered for secure and waterproof mounting of rail‑based solar panel systems on composition (asphalt) shingle roofs. It features an integrated open‑slotted L‑Foot combined with a 9″ × 12″ aluminum flashing and includes a structural screw attachment for improved strength and ease of installation.

All orders are subject to product availability. We will notify you if an item is unavailable or delayed within 24-48 business hours.
Secure checkout with
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Visit our Shipping Policy and Returns Policy page for further details

 View Product Details

QuickMount

  • Description

    QuickMount L-Mount, Structural Screw, 9”x12”, Black

    The L‑Mount, Structural Screw, 9” x 12”, Black (QM‑LMST‑01‑B1) is a roof attachment flashing kit from IronRidge engineered for secure and waterproof mounting of rail‑based solar panel systems on composition (asphalt) shingle roofs. It features an integrated open‑slotted L‑Foot combined with a 9″ × 12″ aluminum flashing and includes a structural screw attachment for improved strength and ease of installation.

    • Manufacturer Part Number: QM-LMST-01-B1
    • Manufacturer Warranty: 25 Years
    • Finish: Black finish

  • Downloads

    Datasheet

    ✔️ Datasheet

    Quick Installation Guide

    No Quick Installation guide available. Email support@solux.energy for file request.

    Warranty

    No Warranty file resource available. Email support@solux.energy for file request.


Download Spec Sheet

Designed in compliance with applicable BCI, DIN, BS and IEC standards. Tested in compliance to BCI and IEC standards.
