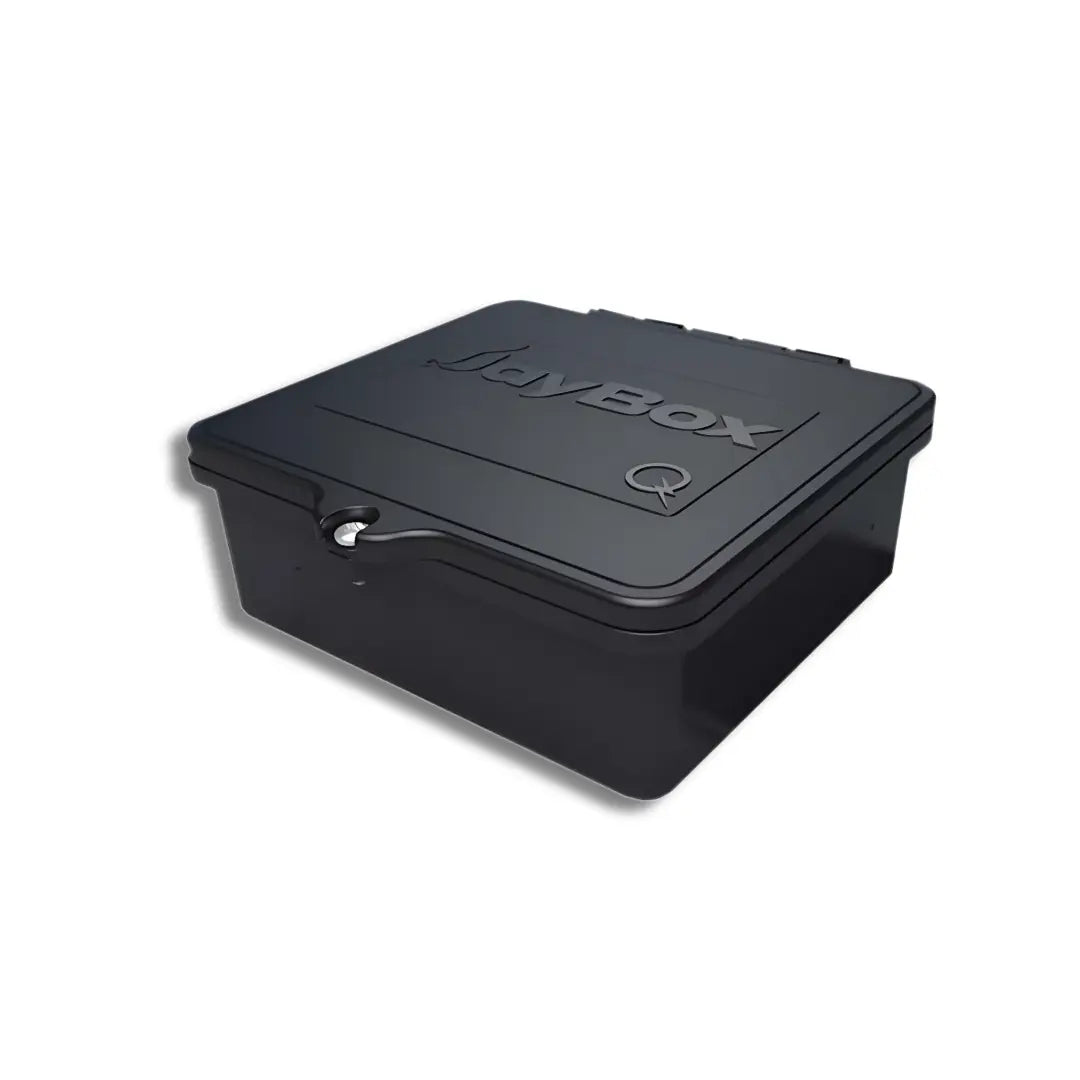

  • A high-resolution product image of the QM-JBX-RF01-B1 (QuickMount JayBox), featuring a durable black, UV-resistant plastic junction box designed for rail-mounted solar applications. The unit features a hinged lid with the "JayBox" logo and a single-screw locking mechanism to ensure a watertight seal for DC string transitions on residential PV arrays.
1 3

QuickMount JayBox, Roof-Mounted (Comp/Ashphalt Shingle)

$76.52 USD
$76.52 USD
Sale Sold out
Shipping calculated at checkout.

Features / Description:

JayBox is an ever-adaptable junction box, designed to securely enclose wires on nearly any solar project—with ample space to shelter up to 4 module strings. The box is UL-listed, NEMA-3R-rated, and supports up to 1500-volt systems. It is made of a NORYL resin, known for its long-lasting UV-resistance and impact strength.

All orders are subject to product availability. We will notify you if an item is unavailable or delayed within 24-48 business hours.
Secure checkout with
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Visit our Shipping Policy and Returns Policy page for further details

 View Product Details

QuickMount

  • Description

    QuickMount JayBox, Roof-Mounted (Comp/Ashphalt Shingle)

    JayBox is an ever-adaptable junction box, designed to securely enclose wires on nearly any solar project—with ample space to shelter up to 4 module strings. The box is UL-listed, NEMA-3R-rated, and supports up to 1500-volt systems. It is made of a NORYL resin, known for its long-lasting UV-resistance and impact strength.

    • Manufacturer Part Number: QM-JBX-RF01-B1
    • Manufacturer Warranty: 10 year limited Warranty
    • Shipping Weight: 1.68 lb
    • Finish: Black finish
    • Material: Polymer Resin (specifically NORYL™)

  • Downloads

    Datasheet

    ✔️ Datasheet

    Quick Installation Guide

    ✔️ Quick Installation Guide

    Warranty

    No Warranty file resource available. Email support@solux.energy for file request.


Download Spec Sheet

Designed in compliance with applicable BCI, DIN, BS and IEC standards. Tested in compliance to BCI and IEC standards.
