Description

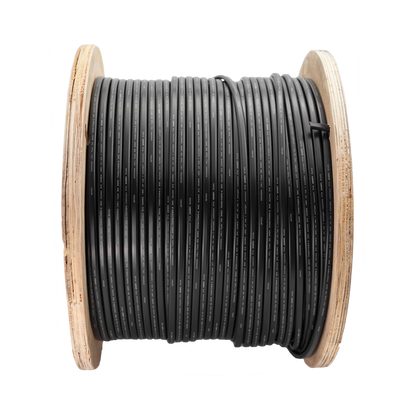

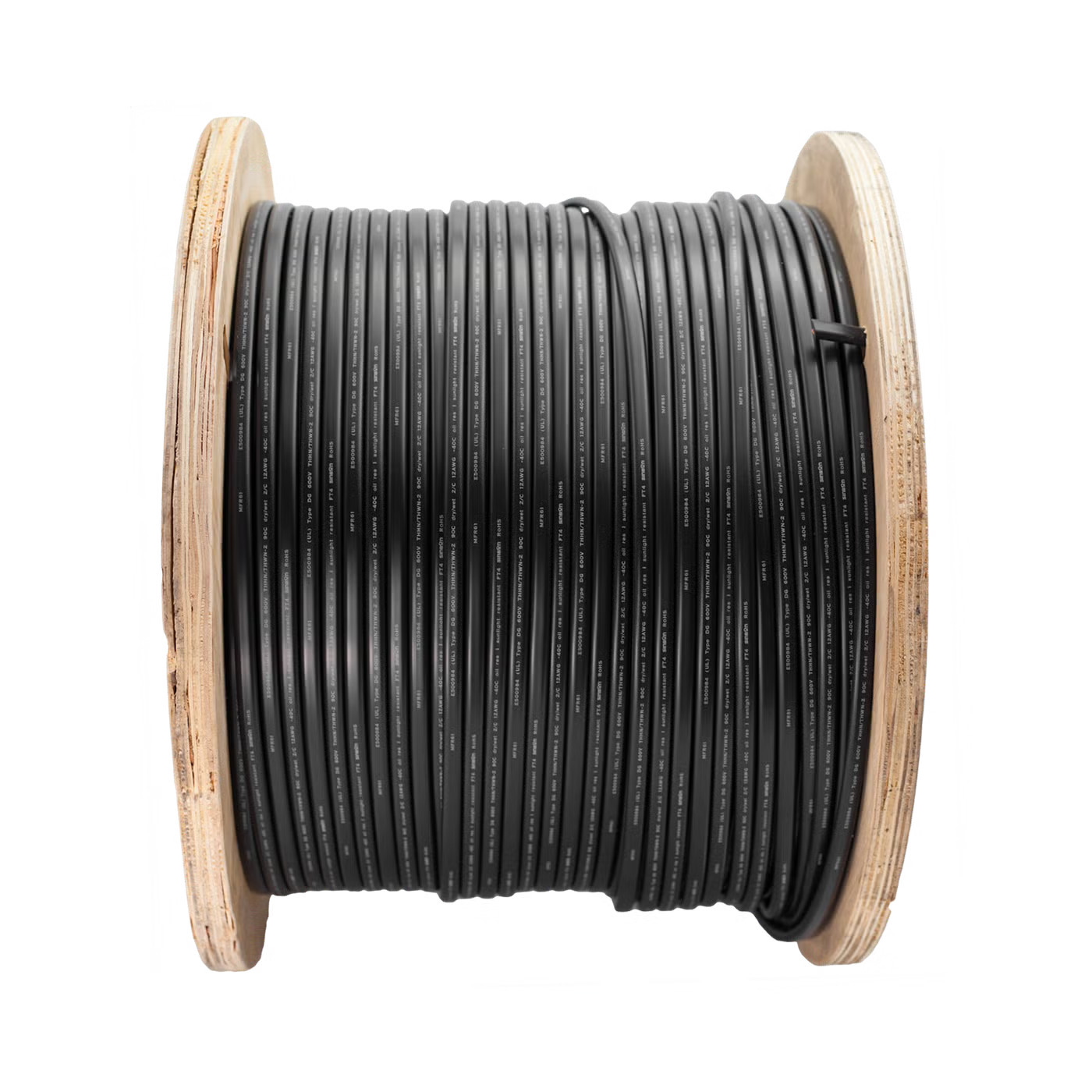

Enphase 12AWG Two-Conductor Double-Insulated Raw Q Cable - 200 feet
The IQ Cable is a continuous 300 m cable with preinstalled connectors for IQ Microinverters that supports faster, simpler, and more reliable installations. The cable is handled like standard outdoor-rated electrical wire, allowing it to be cut, spliced, and extended as needed.
Technical Specifications:
- Length: 300 m
- Voltage rating: 600 V (connector rating 250 V)
- Temperature rating: 90°C dry/wet
- Conductor rating: THHN/THWN-2 dry/wet
- Flame test rating: FT4
- Temperature Rating: Up to 90°C
- Insulation Type: THHN / THWN-2 (dry/wet rated)
- Shipping Weight: 20 lb (200 ft length)
- Shipping Dimensions: 10 x 8 x 6 in
-
Downloads

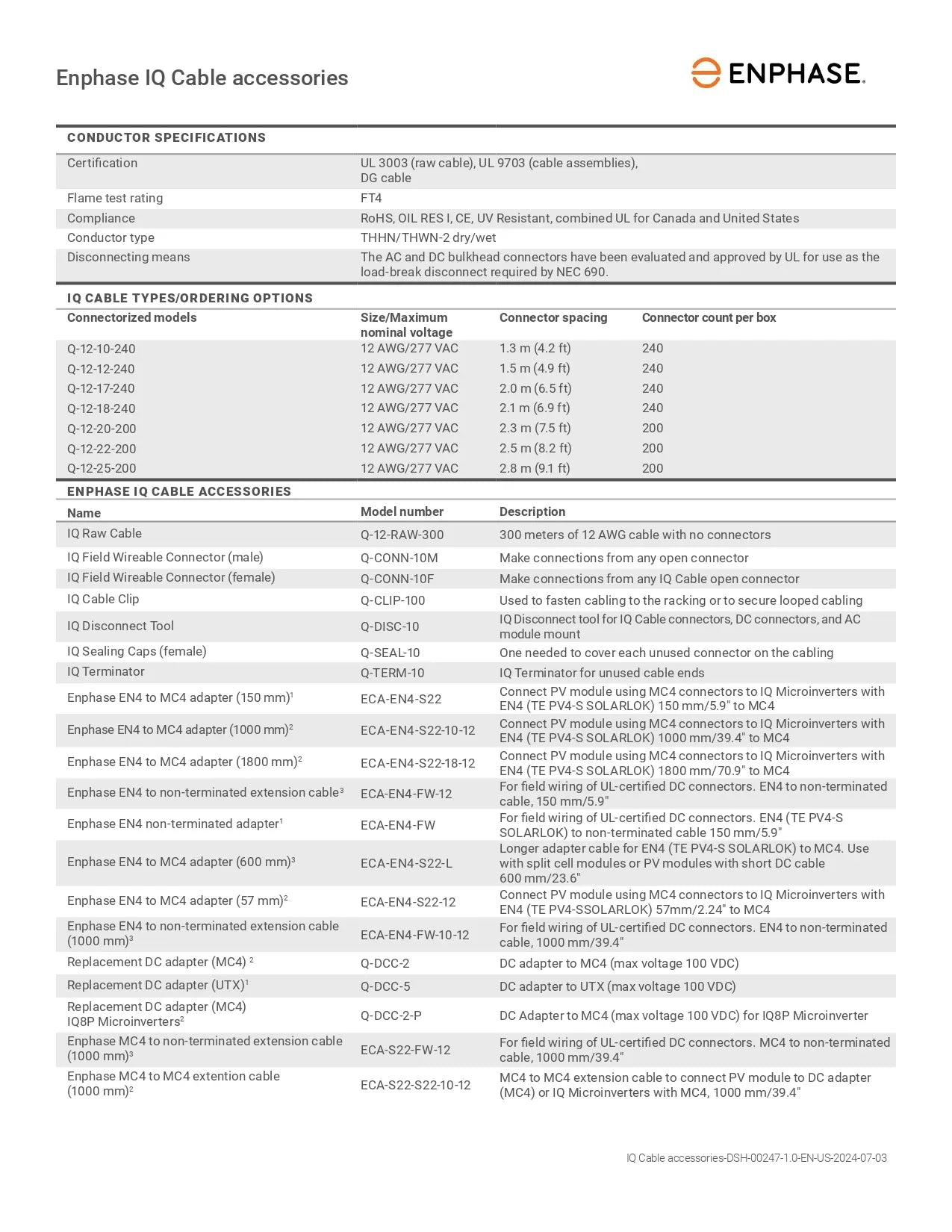

Datasheet
✔️ Datasheet
Quick Installation Guide
No Quick Installation guide available. Email support@solux.energy for file request.
Warranty
No Warranty file resource available. Email support@solux.energy for file request.
Download Spec Sheet
Designed in compliance with applicable BCI, DIN, BS and IEC standards. Tested in compliance to BCI and IEC standards.
