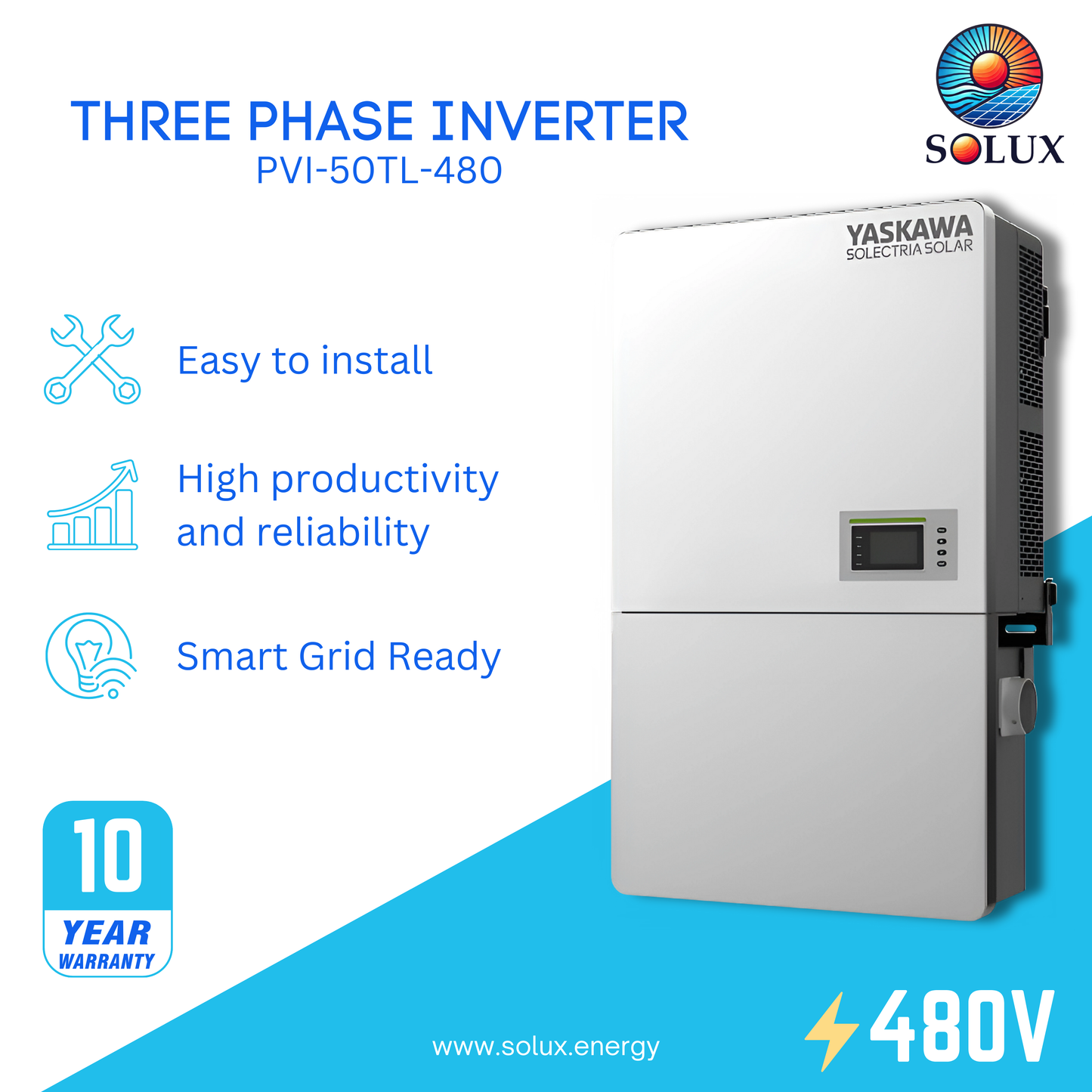

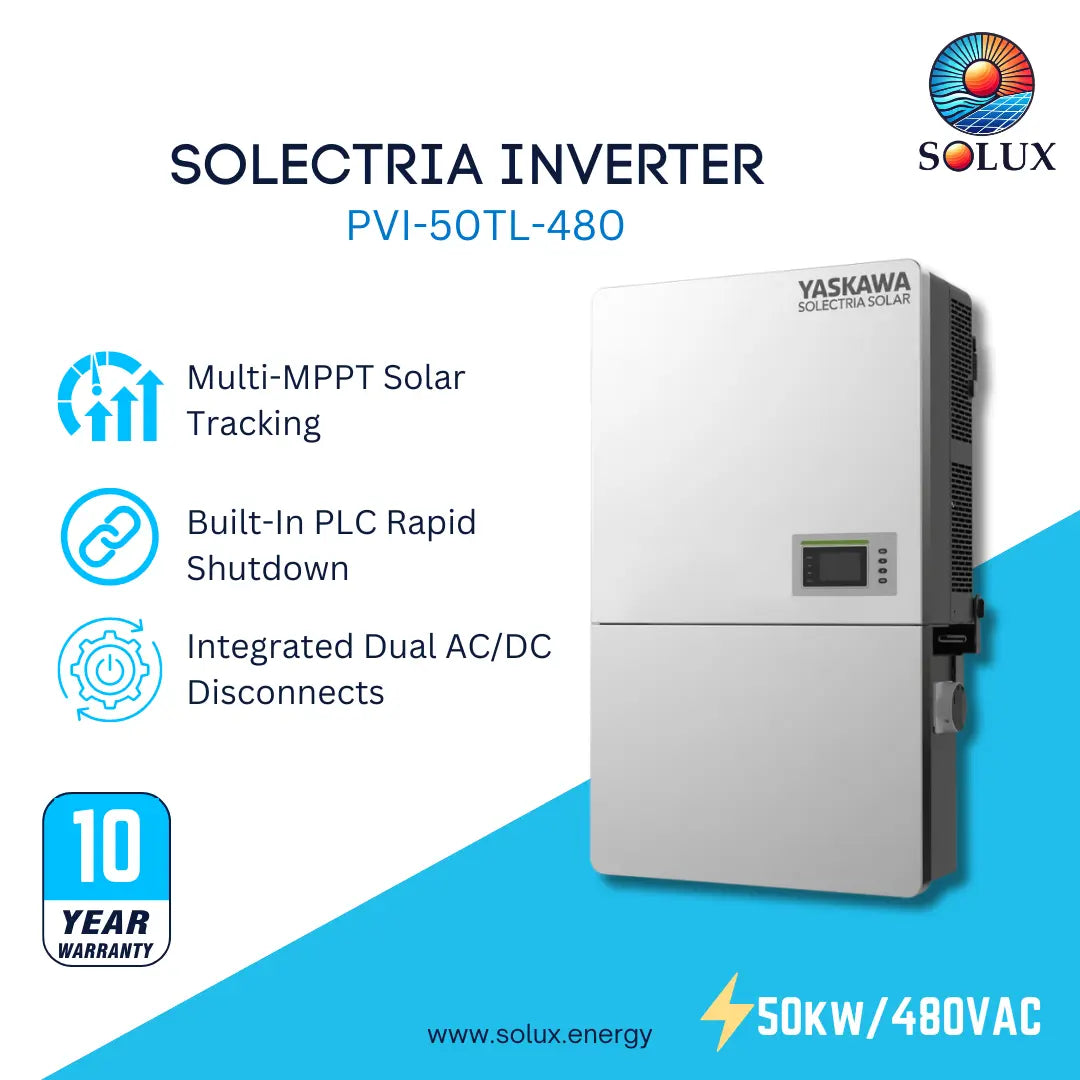

Solectria PVI-50TL-480 50.0kW 3-Ph Inverter

The PVI 50TL and PVI 60TL inverters from Yaskawa - Solectria Solar are grid-tied, transformerless three-phase inverters that can be deployed from 0 to 90 degrees and are equipped for ground mount, rooftop, and carport arrays. The NEC 2014 compliant PVI 50/60TL inverters are the most reliable, powerful, and cost-effective in their class. AC and DC disconnects, three MPPTs, a 15-position string combiner, remote diagnostics, remote firmware updates, and various security features are all included as usual. H4 wiring box, shade cover, DC combiner fuse bypass, and web-based monitoring are all options.

• PVI-50TL-480
• 3-Ph WYE Grid tied inverter
• 50kW,
• 480VAC,
• 60Hz,
• 1000VDC,
• 3 MPPT,
• 10 year warranty,
• Transformerless,
• RS485, Arc-Fault Detection,
• NEMA4X,
• Internal data-logger,
• Mount 0 - 90°, [MUST ADD WIRING BOX]
• Rule-21
