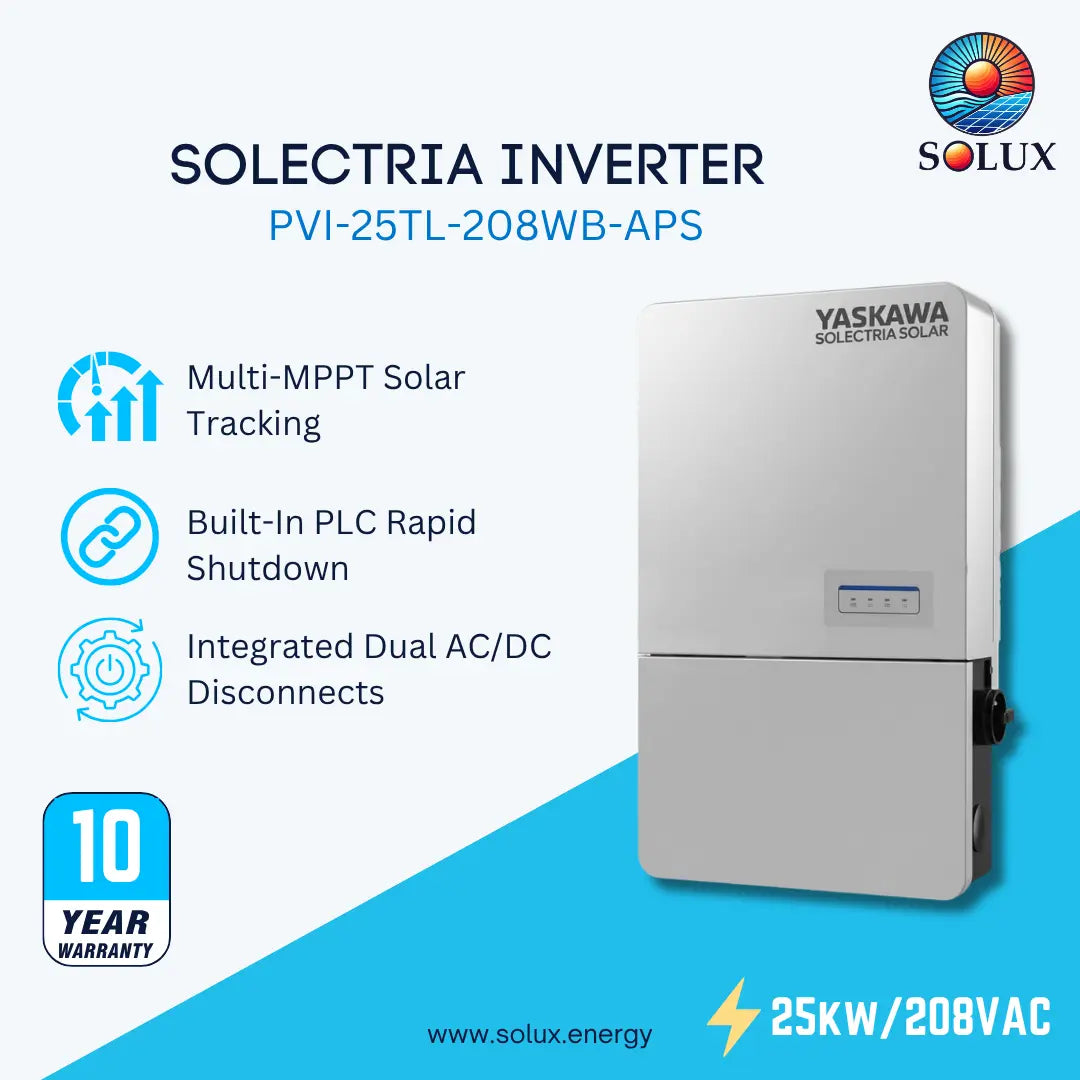

Yakasawa Solectria PVI-25TL-208WB-APS 25kW, 1000VDC, 208VAC String Inverter

Yaskawa Solectria PVI-25TL-208WB-APS 25kW 1000VDC 208VAC Commercial Inverter

The Yaskawa Solectria PVI-25TL-208WB-APS 25kW String Inverter is a commercial three-phase transformerless solar inverter designed for 208 VAC grid service. Rated for array voltages up to 1,000 VDC, it incorporates dual independent MPPT channels to maximize energy yield across multi-angle commercial rooftop layouts.

This integrated inverter package includes a detachable lower wiring box featuring 6 positive-polarity fused DC inputs supplied with 20A standard fuses. It comes factory-equipped with an APsmart Power Line Communication (PLC) rapid shutdown transmitter and bleed-down circuit, providing direct signal pairing with APsmart RSD-S and RSD-D module-level rapid shutdown receivers to satisfy NEC electrical safety requirements.

Specifications:

• Manufacturer Part Number: PVI-25TL-208WB-APS
• Product type: Standard fused wire box
• Shipping Weight: 33 lb

Mechanical:

• Model: PVI-25TL-208WB-APS
• Product type: Fused inverter wiring box
• Compatible inverter: PVI-25TL-208
• Fused inputs: 6
• Fuse: 20 A standard
• Fuse configuration: Positive polarity only
• Rapid shutdown: APsmart PLC transmitter built-in
• Compatible ML-RSD: APsmart RSD-S / RSD-D
• Inverter rating: 25 kW
• Maximum DC input voltage: 1,000 VDC
