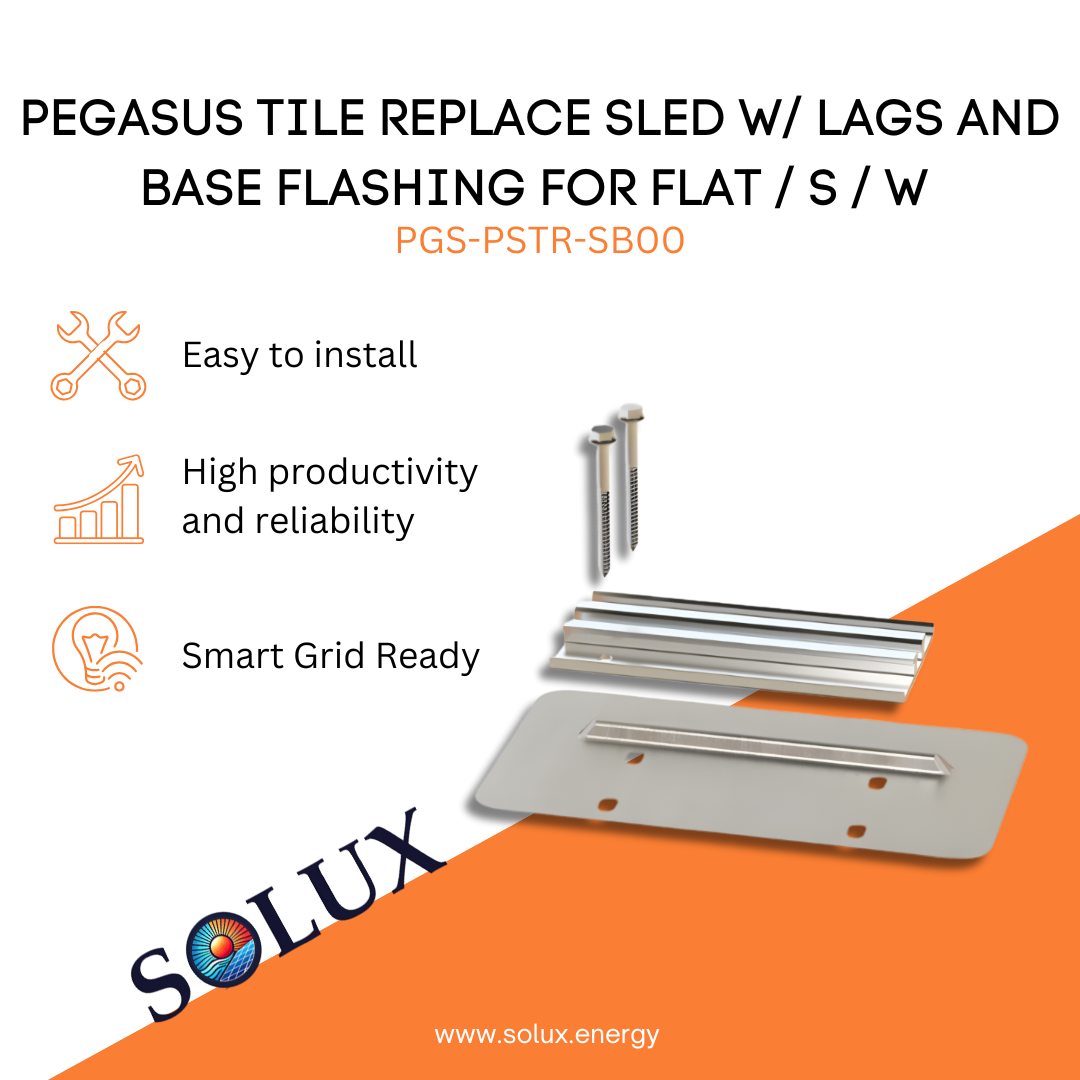

Pegasus Tile Replace Sled w/ Lags and Base Flashing for Flat / S / W (Priced as 1 pc)

Pegasus Tile Replace Sled w/ Lags and Base Flashing for Flat / S / W (Priced as 1 pc)

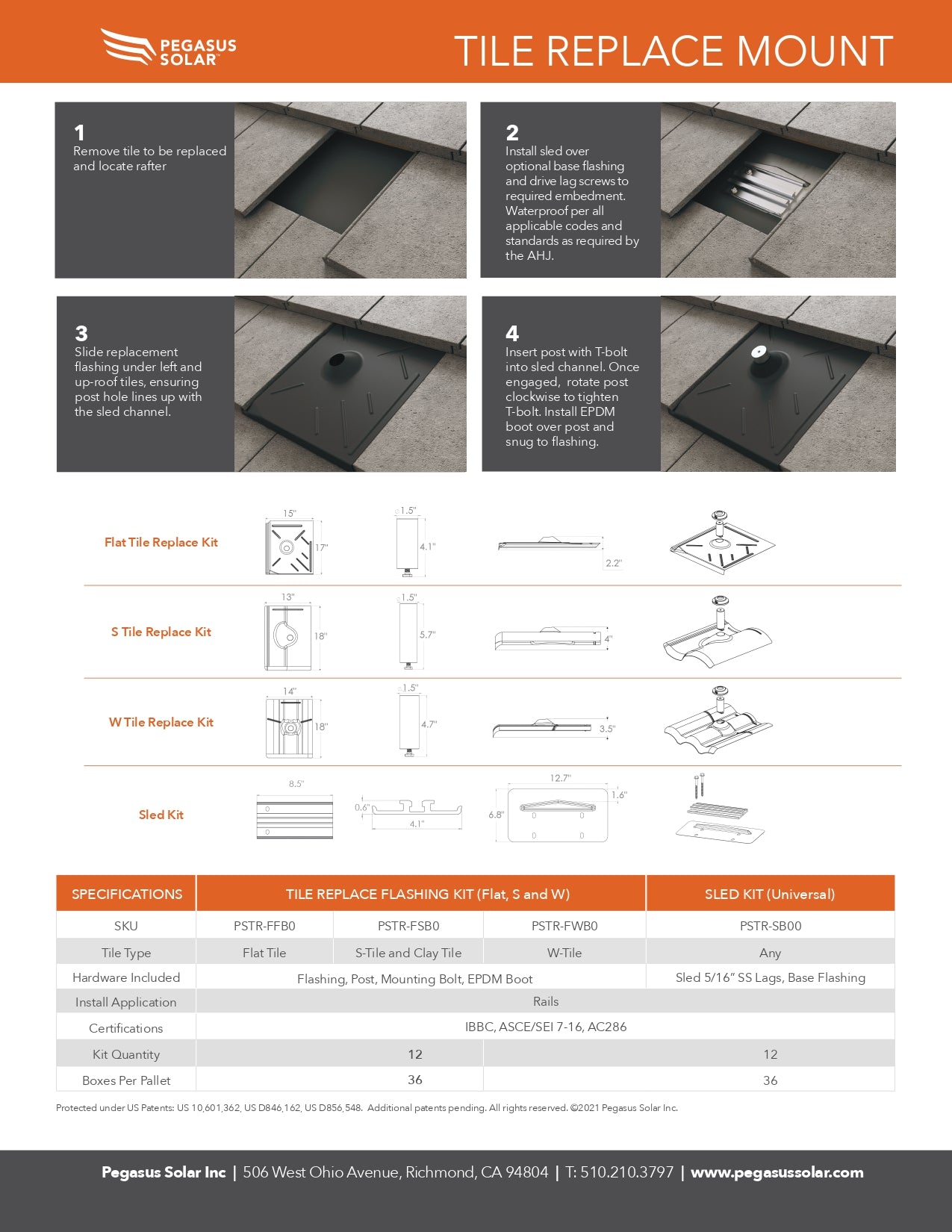

The universal foundation for tile replacement mounting. The PSTR-SB00 Sled is the core structural bracket for the Pegasus Tile Replace system. It eliminates the need for grinding or cutting tiles by providing a low-profile base that anchors directly to the rafters. This universal sled works seamlessly with Flat, S, and W-tile flashing, providing a faster, cleaner, and more reliable rooftop installation

Product Highlights:

• Universal Design: Compatible with all Pegasus Flat, S, and W-tile flashings.
• No Tile Grinding: Eliminates the mess and structural risk of cutting tiles.
• Precision Leveling: Allows for Easy/West and North/South rail adjustments.
• Code Compliant: Fully IBC/CBC compliant and exceeds ASCE 7-16 standards.
• Base Flashing Included: Features an optional secondary layer of water protection.
• Structural Strength: Includes 5/16" stainless steel lags for high-capacity anchoring.

Logistics & Ordering Info

• Manufacturer Part Number: PSTR-SB00
• Manufacturer Warranty: 10 Years
• Shipping Weight: 1.417 lb
• Shipping Dimensions: 14 x 10 x 0.5 in
• Case Qty: 12
• Pallet Qty: 432
