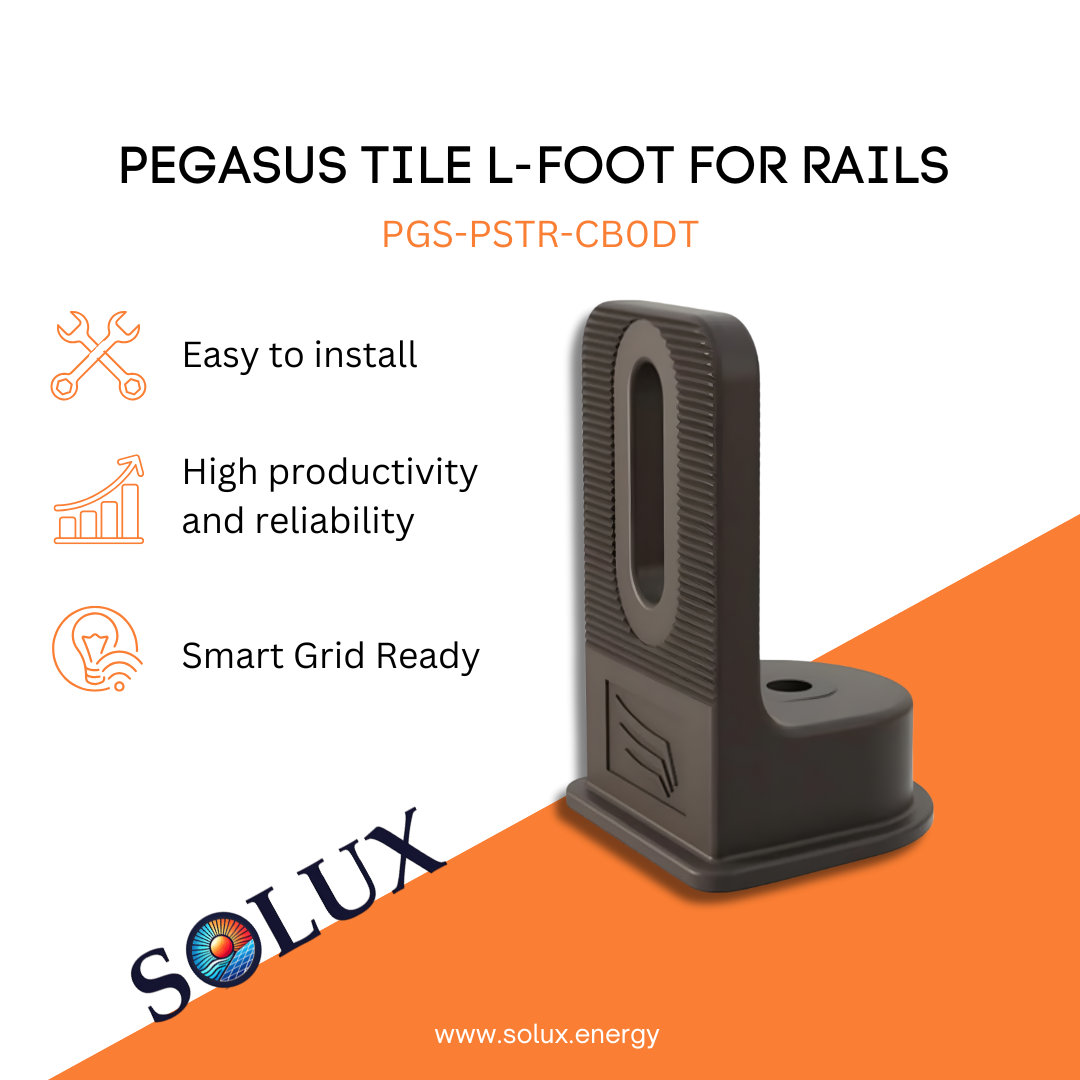

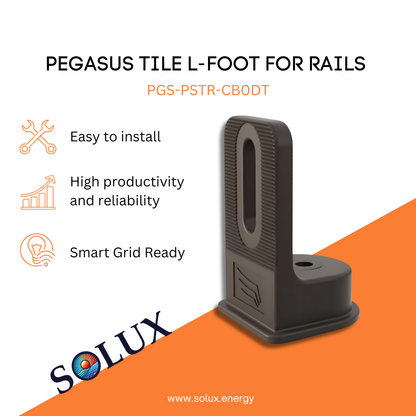

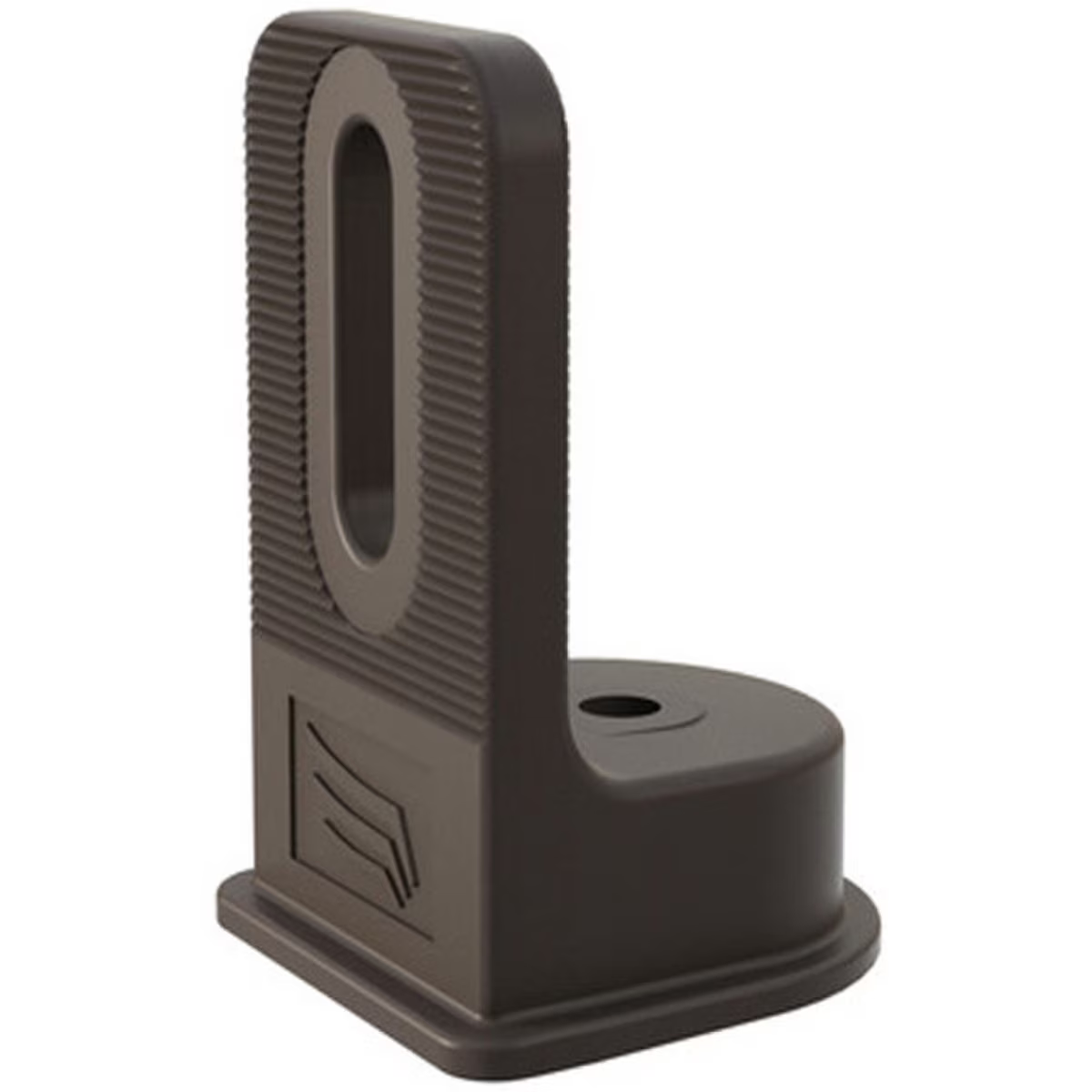

Pegasus Tile L-foot for Rails - Closed slot Black L-foot - Dovetail 3/8" T-bolt (Priced as 1 pc)

Pegasus Tile L-foot for Rails - Closed slot Black L-foot - Dovetail 3/8" T-bolt (Priced as 1 pc)

High-strength attachment for tile roof rail systems. This black, closed-slot L-foot is a primary structural component of the Pegasus Tile mounting system. Designed to interface perfectly with Pegasus rails, it features a unique Dovetail T-bolt for maximum pull-out resistance and a closed-slot design that prevents the rail from slipping or detaching during installation or heavy weather events.

Product Highlights:

• Dovetail Security: Custom 3/8" T-bolt locks into the rail channel. Provides elite grip and vibration resistance.
• Closed-Slot Stability: Loop design captures the rail securely. Prevents slipping during array leveling.
• Easy Alignment: Simplifies North-South rail adjustments. Ensures a level array on uneven tile roofs.
• Premium Black: Anodized finish for a low-profile look. Blends perfectly with dark solar panels.
• Auto-Bonding: UL 2703 listed electrical grounding. Creates a reliable bond when tightened.
• Rugged Build: 6000 series structural aluminum. Rated for 25+ years of wind and snow loads.

Logistics & Ordering:

• Manufacturer Part Number: PSTR-CB0DT
• Manufacturer Warranty: 10 Years
• Shipping Weight: .417 lb
• Shipping Dimensions: 1 x 1 x 2 in
• Case Qty: 24
• Pallet Qty: 1728
