Description

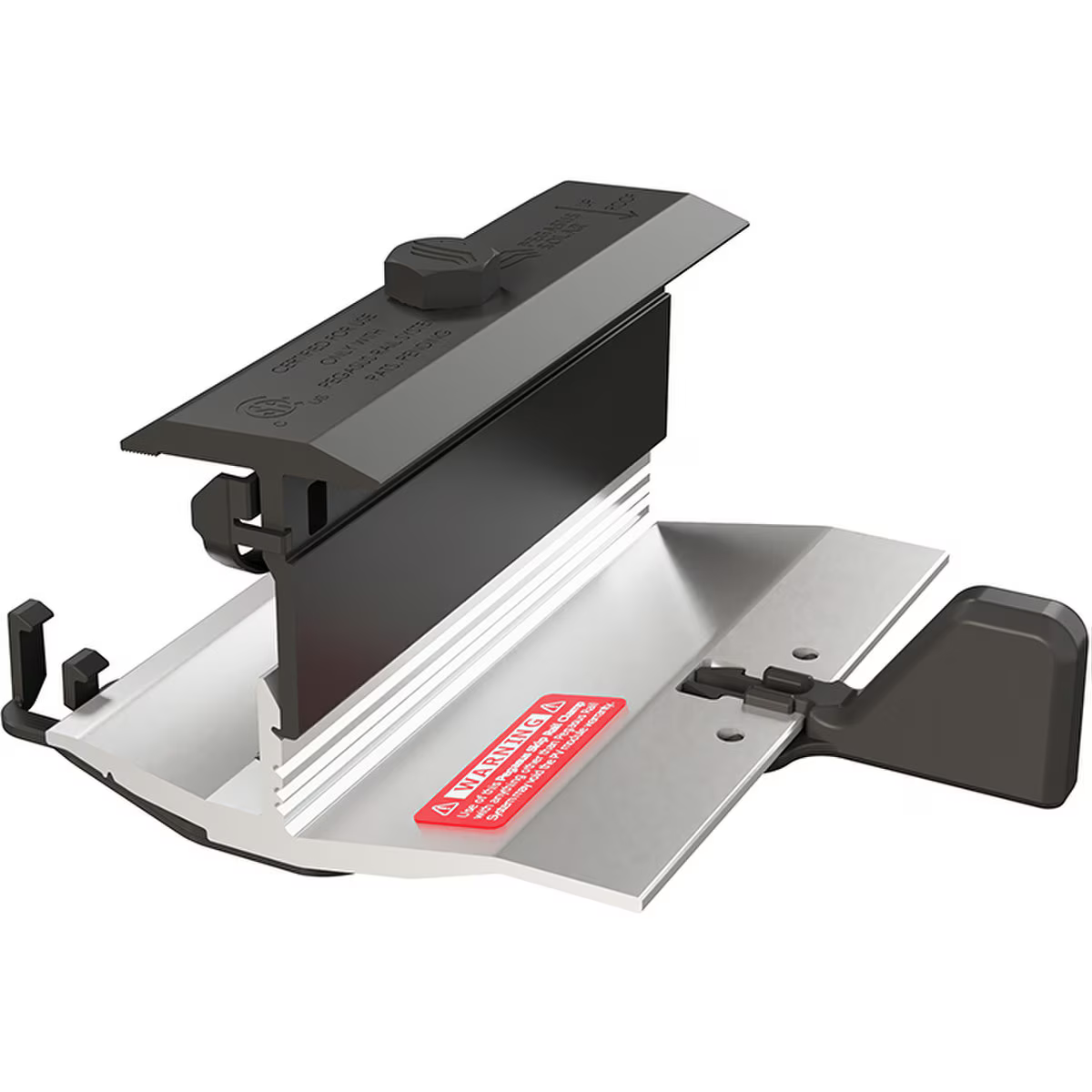

Pegasus - SkipRail Clamp
The core component for ultra-efficient "SkipRail" solar arrays. The SkipRail Clamp is a high-performance structural connector that links module rows directly to one another. By using this clamp, installers can eliminate entire rows of rails and roof mounts (up to 25% fewer rails and 15% fewer penetrations), significantly reducing material costs and labor time while maintaining full code compliance.
Product Highlights:
- Row-to-Row Bonding: Structurally connects and bonds modules across rows to maintain perfect, flush alignment.
- SkipRail Efficiency: Eliminates the need for traditional leveling rails, reducing roof penetrations and total hardware.
- Integrated Grounding: Creates a UL 2703 listed electrical bond between modules automatically upon installation.
- Precision Alignment: Features an auto-leveling function that ensures module rows are perfectly in-plane with minimal effort.
- Sleek Aesthetics: Delivers a low-profile, professional finish while providing exceptional resistance to harsh weather.
- Code-Compliant Strength: Engineered to withstand 160-mph winds and snow loads up to 40 psf.
Logistics & Ordering Info:
- Manufacturer Part Number: PSR-SRC
- Manufacturer Warranty: 25 Years
- Shipping Weight: .5 lb
- Shipping Dimensions: 4 x 3.5 x 2.5 in
- Case Qty: 20
- Pallet Qty: 800
-
Downloads

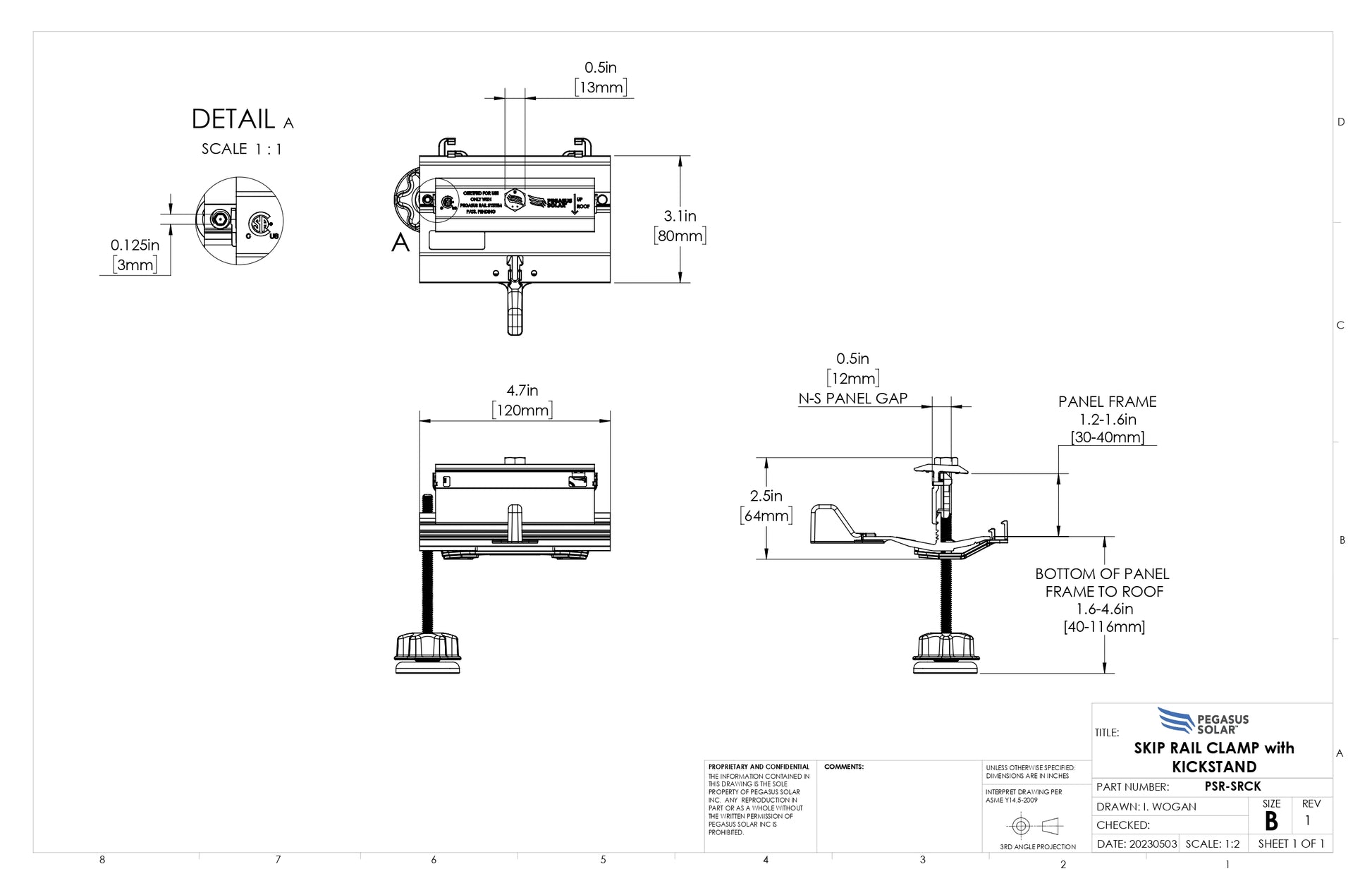

Download Spec Sheet
Designed in compliance with applicable BCI, DIN, BS and IEC standards. Tested in compliance to BCI and IEC standards.
