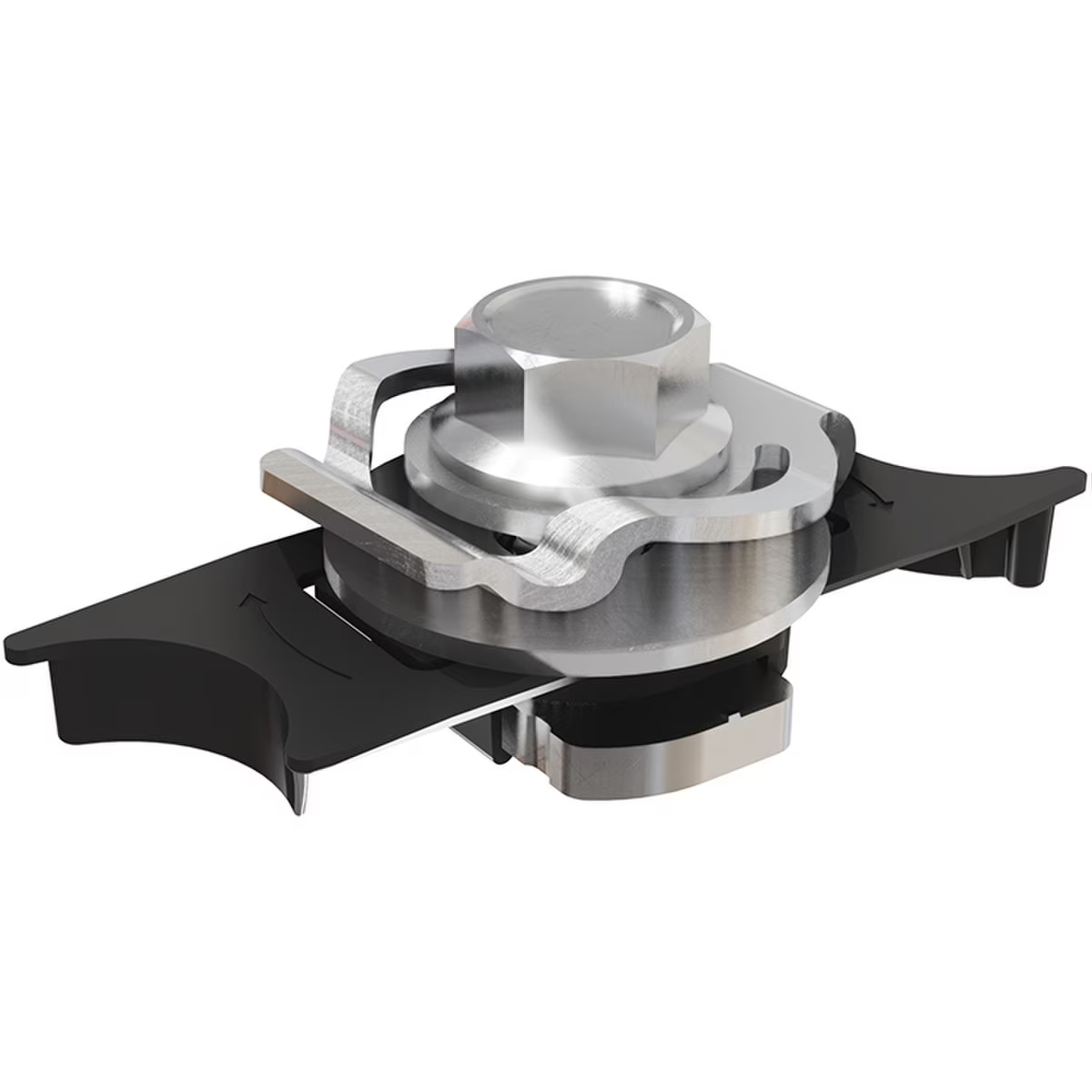

Pegasus Pegasus - Ground Lug (Priced as 1 pc)
High-reliability electrical bonding for Pegasus Rail Systems. This specialized grounding lug provides a critical safety connection for rooftop PV arrays. It secures the copper grounding wire directly to the rail, ensuring a continuous path to ground. The compact design allows for flexible placement anywhere along the rail channel.
Product Highlights:
- Code-Compliant Safety: Provides a permanent electrical bond for solar arrays. It meets all UL 2703 requirements for grounding and safety.
- Direct Rail Attachment: Clicks into the side channel of any Pegasus PSR rail. This allows for fast installation without drilling or specialized tools.
- Corrosion-Resistant Design: Built with high-grade tin-plated aluminum and stainless steel hardware. It prevents galvanic corrosion between the copper wire and rail.
- Flexible Wire Capacity: Accommodates standard copper grounding wires ranging from 6 AWG to 14 AWG. It supports diverse residential and commercial project needs.
- Rapid Tool Integration: Designed for use with a standard socket or hex driver. This ensures a secure, vibration-proof connection in seconds.
Logistics & Ordering:
- Manufacturer Part Number: PSR-LUG
- Manufacturer Warranty: 10 Years
- Shipping Weight: .1 lb
- Shipping Dimensions: 0.75 x 0.3 x 0.3 in
- Case Qty: 150
- Pallet Qty: 9000
-
Downloads

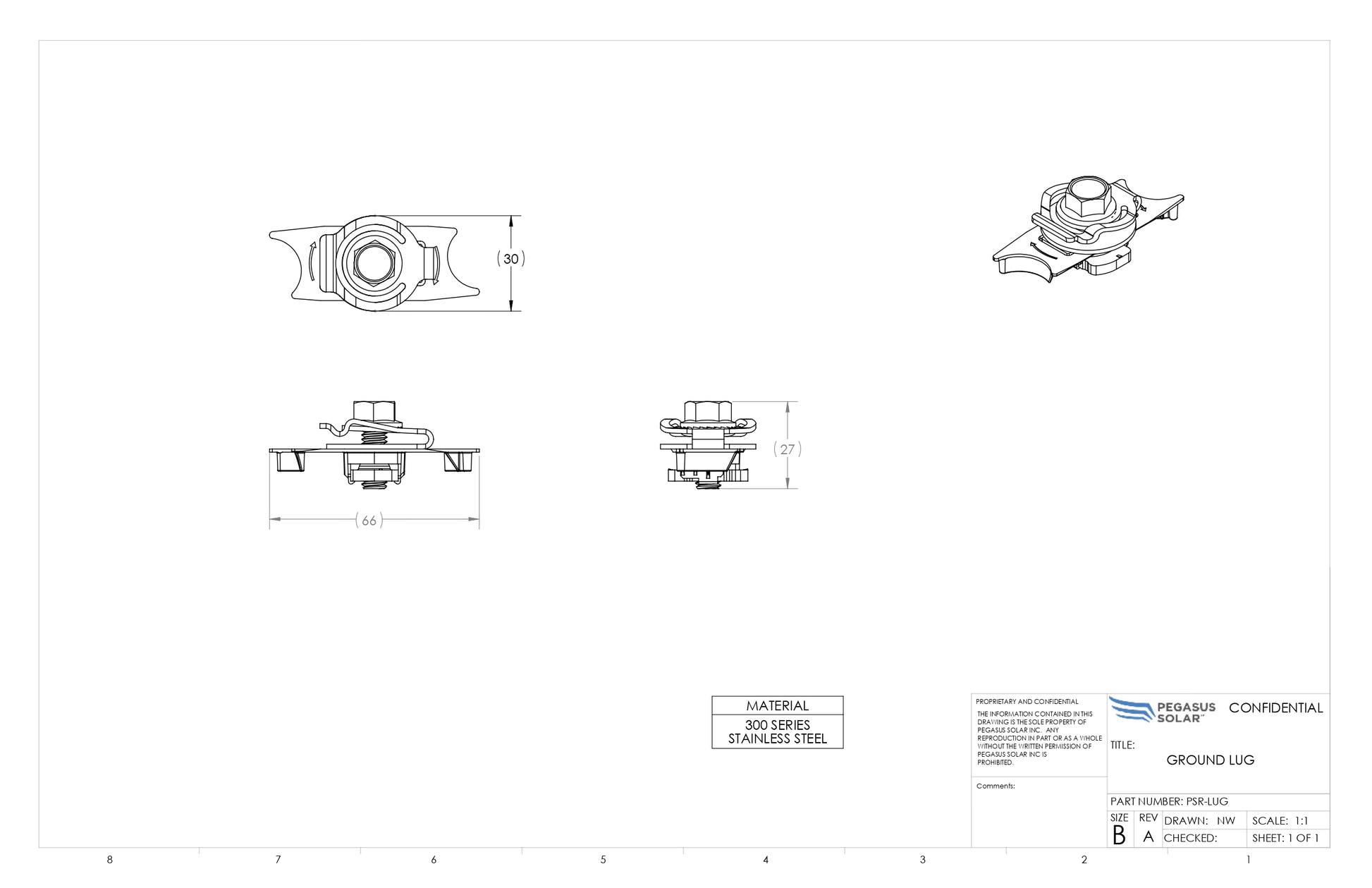

Download Spec Sheet
