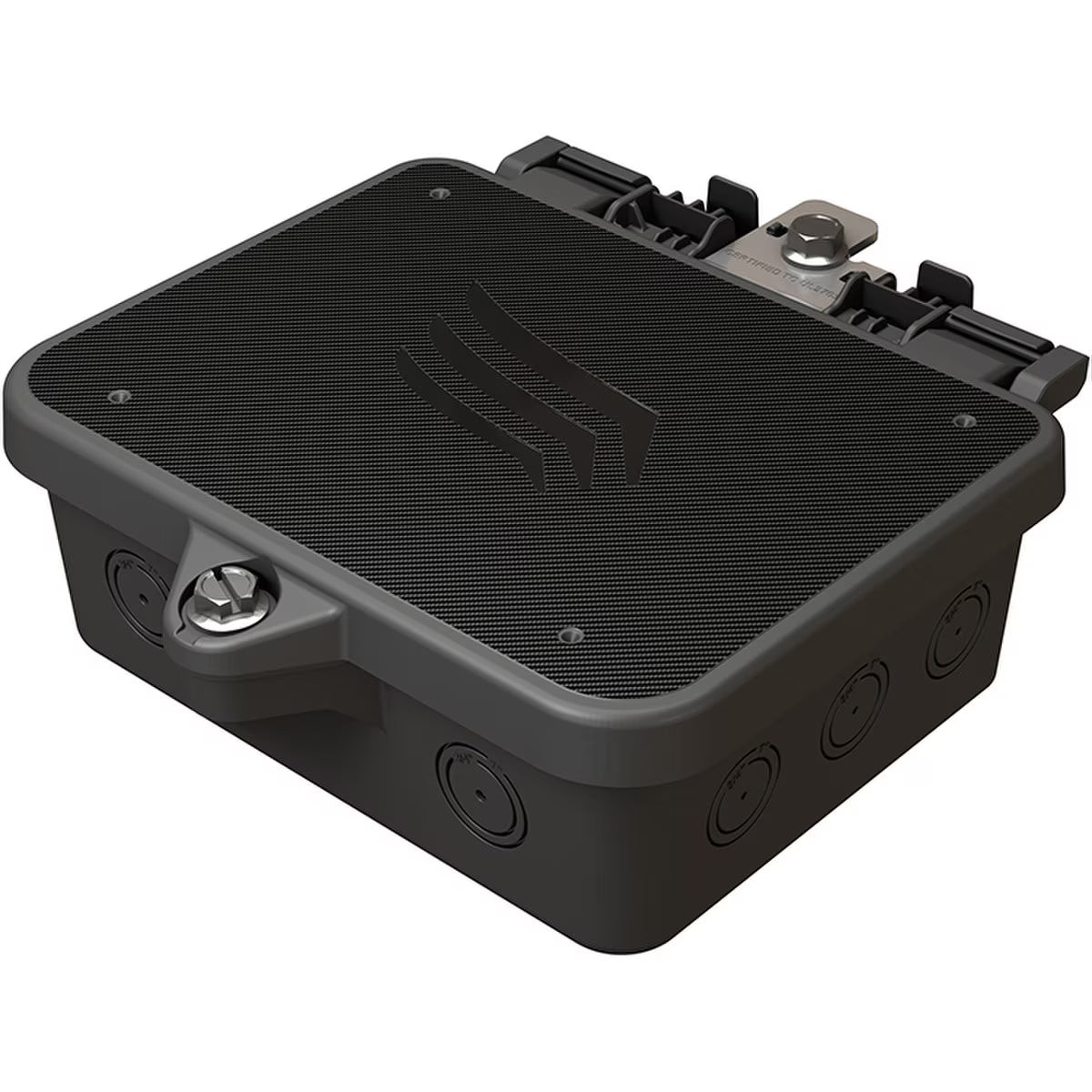

Pegasus - BondBox
The "Secret Agent" of system grounding for solar arrays. The Pegasus BondBox is a high-performance junction box designed to eliminate the need for extra ground lugs and copper wire on the roof. By electrically bonding the rail directly to an integrated ground bar, it streamlines installation while ensuring a code-compliant, durable connection for residential and commercial solar systems.
Product Highlights:

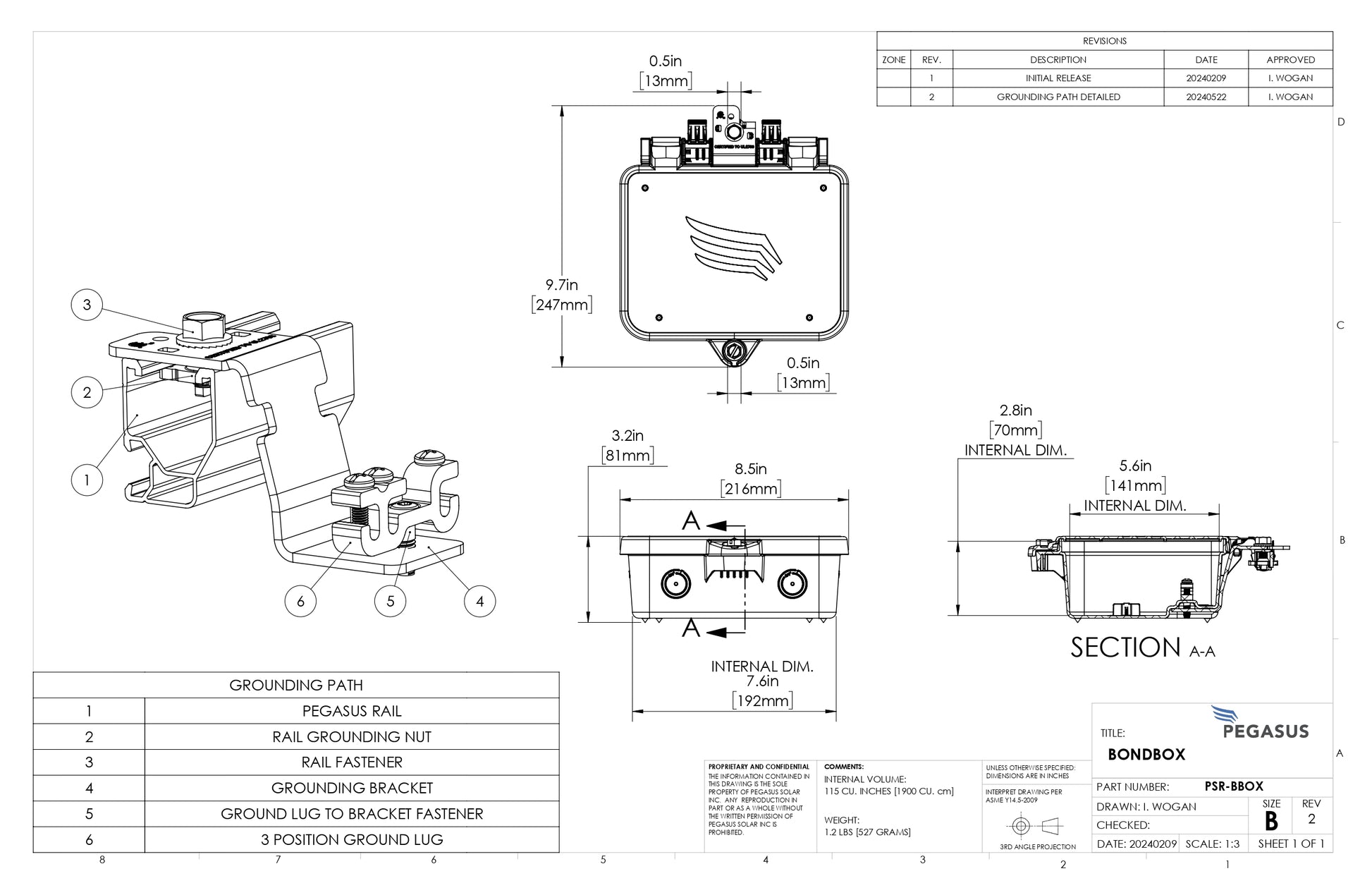

- Integrated System Grounding: Bonds the rail directly to the internal bus bar. This removes the need for separate grounding hardware.
- Universal Rail Attachment: Features a thick aluminum bracket for secure mounting. It clicks directly into any Pegasus rail for a permanent connection.
- Smart Design Features: Includes no-slip feet for steep roof traction during install. Stackable housing allows for easy transport across the rooftop.
- Flexible Wiring Options: Built-in slots accommodate WAGO 221 connectors. The lay-in bus bar supports grounding multiple arrays or mid-wire connections.
- All-Weather Protection: NEMA 3R rated enclosure ensures long-term weather resistance. Integrated weep holes provide essential drainage to prevent moisture buildup.
- Code-Compliant Reliability: UL 2703 and UL 1741 certified for safety. It is backed by a 25-year Pegasus manufacturer warranty.
Logistics and Ordering Info
- Manufacturer Part Number: PSR-BBOX
- Shipping Weight: 1.4 lb
- Shipping Dimensions: 10 x 9 x 3.5 in
- Case Qty: 20
- Pallet Qty: 400
-
Downloads
Download Spec Sheet
