SolarEdge P400 Power Optimizer (MOQ: 20 Units) - Clearance

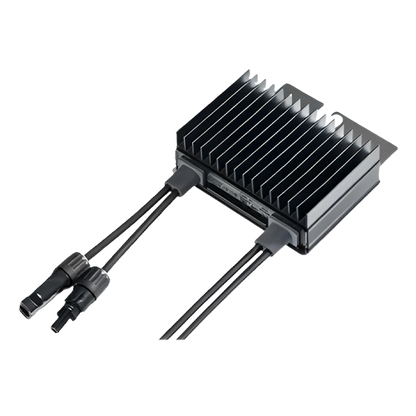

SolarEdge P400 Power Optimizer

The SolarEdge P400 Power Optimizer is a DC/DC converter designed to be connected to each solar module. It is engineered to increase energy output from PV systems by constantly tracking the Maximum Power Point (MPPT) of each module individually, mitigating all types of mismatch losses, from manufacturing tolerance to partial shading. The P400 is designed for use with 72-cell and 96-cell modules and works exclusively with SolarEdge inverters.

Technical Specifications:

• Rated DC Input Power: 400 Watts
• Absolute Max. Input Voltage: 80 VDC
• MPPT Operating Range: 8-80 VDC
• Efficiency: 99.5% peak, 98.8% weighted.
• Dimensions: ~5.0" x 5.97" x 1.89"
• Weight: ~2.05 lbs
• Protection Rating: IP68 / NEMA6P
• Warranty: 25-year product warranty
