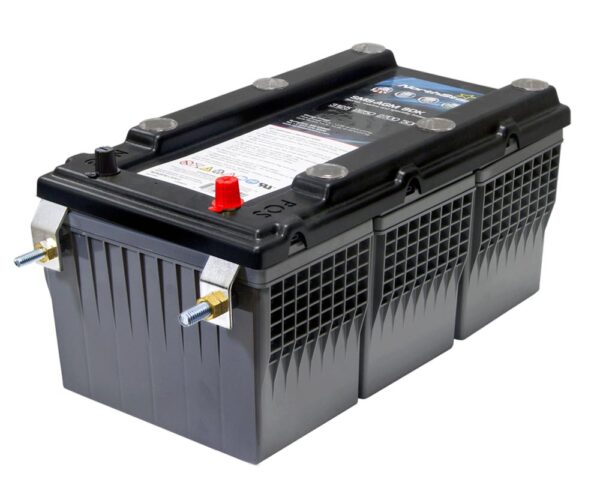

Odyssey Battery ODX-AGM8DKDT 12VDC 228Ah Extreme Series AGM Battery

Odyssey Extreme ODX-AGM8DKDT: 12V 228Ah 2250 CCA 8D Battery

The Odyssey ODX-AGM8DKDT (Extreme Series) is a world-class 8D AGM battery engineered for mission-critical starting and high-demand deep-cycle applications. Utilizing Thin Plate Pure Lead (TPPL) technology, this battery delivers twice the power and triple the service life of conventional lead-acid batteries.

Why the Odyssey Extreme Series ODX-AGM8DKDT Outperforms

• TPPL Pure Lead Advantage: Made from 99.99% pure lead (not alloy), allowing for thinner plates and more surface area, resulting in explosive starting power and rapid recharge rates.
• Massive Deep Cycle Ability: Capable of 400 cycles at 80% Depth of Discharge (DOD) and over 900 cycles at 50% DOD, making it the perfect hybrid for starting and heavy auxiliary loads.
• Extreme Temperature Resilience: Built to operate from -40°F to 176°F, featuring a flame-retardant (UL94 V-0) poly enclosure that resists heat, vibration, and mechanical shock.
• No-Maintenance Reliability: The sealed AGM design is non-spillable and completely maintenance-free, no water levels to check and no terminal corrosion to clean.
• Superior Shelf Life: Boasts an open-circuit voltage shelf life of up to 2 years at 77°F, ensuring it’s ready to work even after extended storage.

Commercial & Marine Intent: The "Zero Downtime" Advantage

For fleet managers, commercial captains, and emergency service providers, the ODX-AGM8DKDT is a risk-mitigation asset designed to lower Total Cost of Ownership (TCO).

• Dual Terminal Versatility: Equipped with both SAE posts and Front Studs, allowing for high-current engine connections alongside secure auxiliary accessory wiring.
• Fast Recharge Velocity: Can be fully recharged in 4–6 hours with a high-current charger, the fastest recharge of any sealed lead battery on the market.
• Proudly Made in the USA: Manufactured to rigorous ISO standards in a state-of-the-art facility, ensuring American-made quality and reliability.

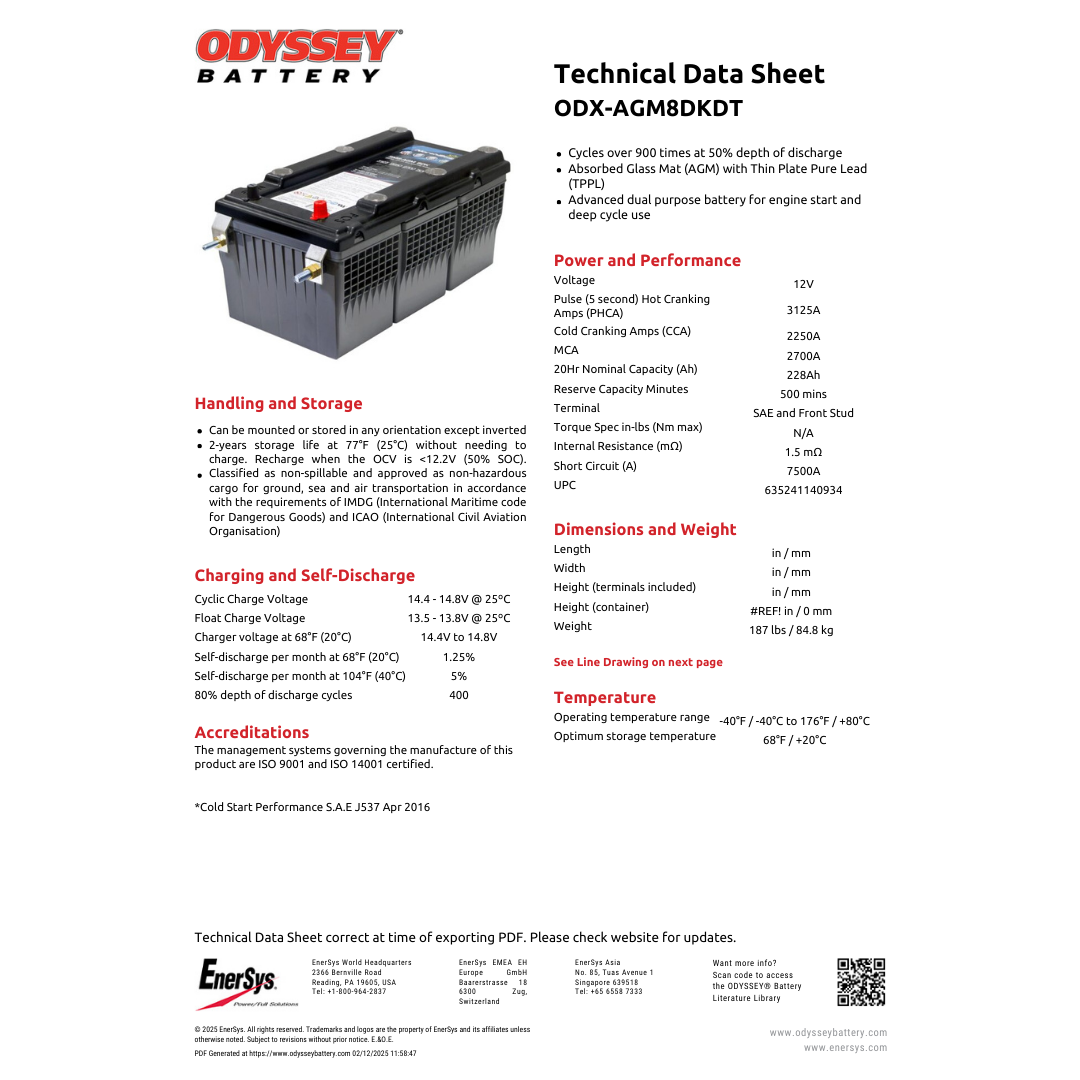

Technical Specifications:

• Voltage: 12V
• Pulse (5 second) Hot Cranking Amps (PHCA): 3125A
• Cold Cranking Amps (CCA): 2250A
• MCA: 2700A
• 20Hr Nominal Capacity (Ah): 228AH
• Reserve Capacity Minutes: 500 mins
• Terminal: SAE and Front Stud
• Torque Spec in-lbs (Nm max): N/A
• Internal Resistance (mΩ): 1.5mΩ
• Short Circuit (A): 7500A
• Operating Temperature Range: -40°F / -40°C to 176°F / +80°C
• Optimum Storage Temperature: 68°F / +20°C
• UPC: 635241140934
• Weight: 187.00 lbs
• Height (container): 0.00 in
