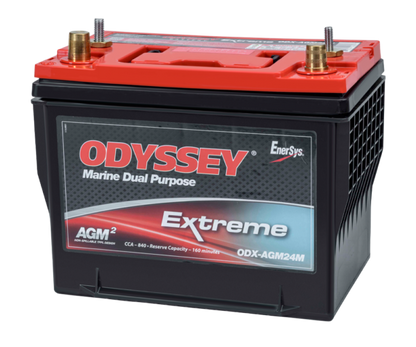

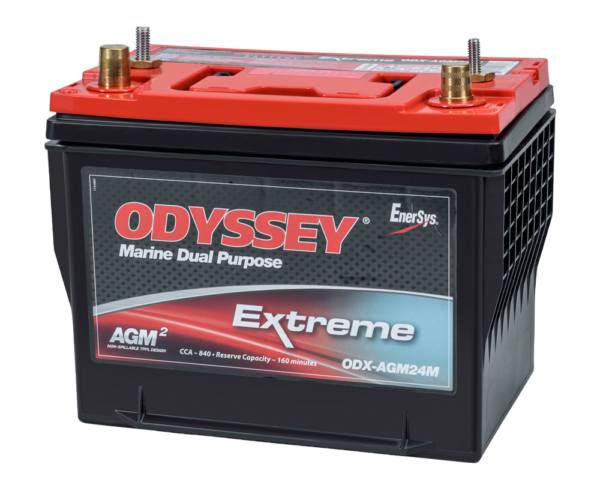

Odyssey ODX-AGM24M 12VDC 76Ah Extreme Series AGM Battery

ODYSSEY Extreme Series Group 24M Dual Purpose Marine Battery

The ODYSSEY Extreme Battery ODX-AGM24M is an all-in-one 12-volt battery built to both start boat engines and power accessories. Unlike standard batteries, this odyssey extreme battery odx-agm24m is made in the USA with 99.99% pure lead plates that are much thinner, allowing more plates to fit inside. This design gives you 840 cold cranking amps of strong starting power while lasting through more than 900 deep discharge cycles to run your trolling motor, fish finder, lights, and audio equipment.

Featuring dual marine terminals, the odyssey odx-agm24m comes with standard car-style posts plus threaded stainless steel studs (3/8-inch positive, 5/16-inch negative) for clean accessory wiring. The sealed AGM construction prevents spills, resists rough water vibration, and never requires water refills or terminal cleaning. It also recharges faster than conventional marine batteries and holds a charge on the shelf for up to 2 years without going flat.

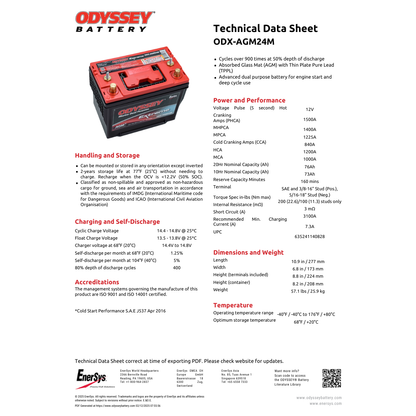

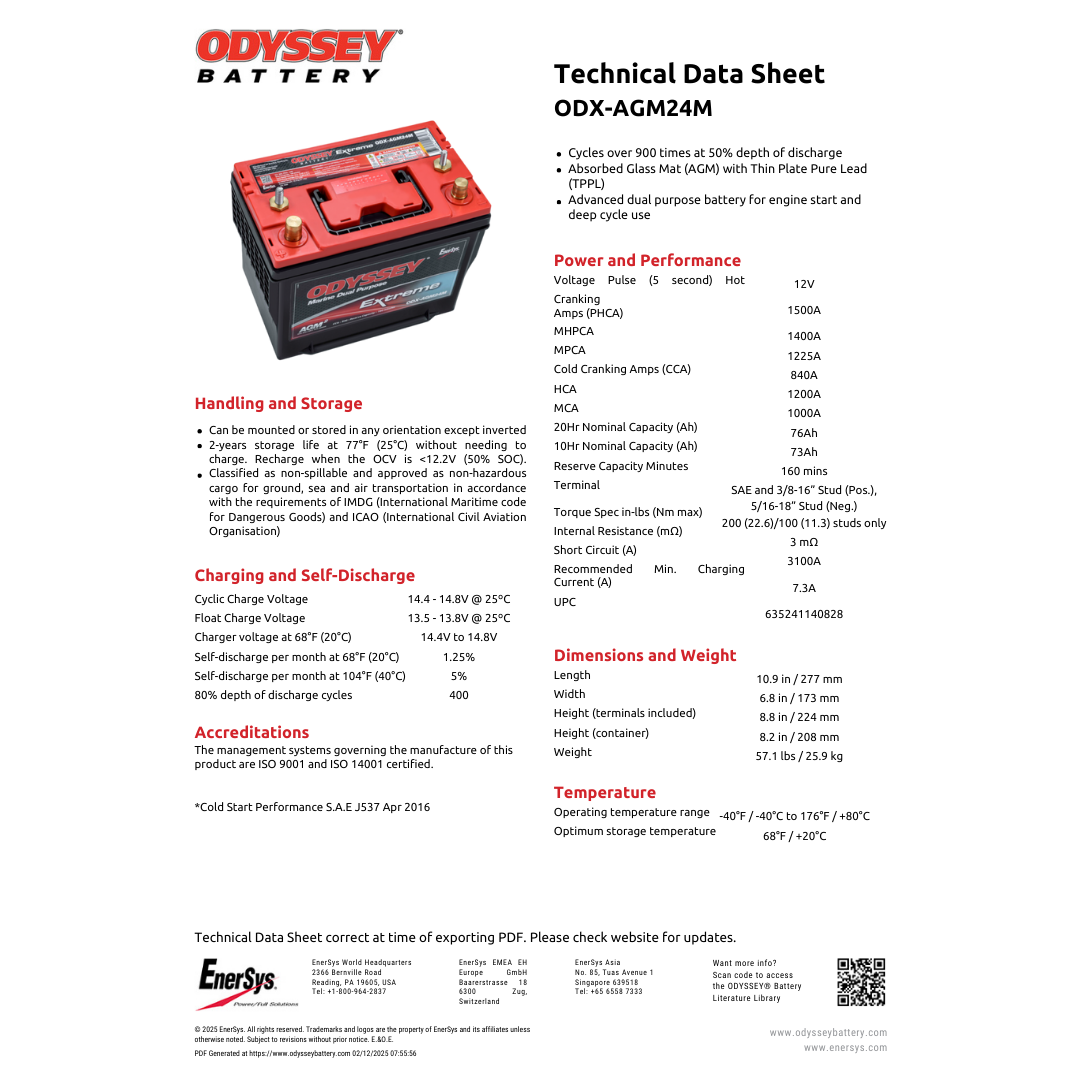

Technical Specifications:

• Voltage: 12V
• Pulse (5 second) Hot Cranking Amps (PHCA): 1500A
• MHPCA: 1400A
• MPCA: 1225A
• Cold Cranking Amps (CCA): 840A
• HCA: 1200A
• MCA: 1000A
• 20Hr Nominal Capacity (Ah): 76AH
• 10Hr Nominal Capacity (Ah): 73AH
• Reserve Capacity Minutes: 160 mins
• Terminal: SAE and 3/8-16” Stud (Pos.), 5/16-18” Stud (Neg.)
• Torque Spec in-lbs (Nm max): 200 (22.6)/100 (11.3) studs only
• Internal Resistance (mΩ): 3mΩ
• Short Circuit (A): 3100A
• Recommended Min. Charging Current (A): 7.3A
• Operating Temperature Range: -40°F / -40°C to 176°F / +80°C
• Optimum Storage Temperature: 68°F / +20°C
• UPC: 635241140828
• Length: 10.90 in
• Width: 6.80 in
• Height (terminals included): 8.80 in
• Height (container): 8.20 in
• Weight: 57.1 lb
