Description

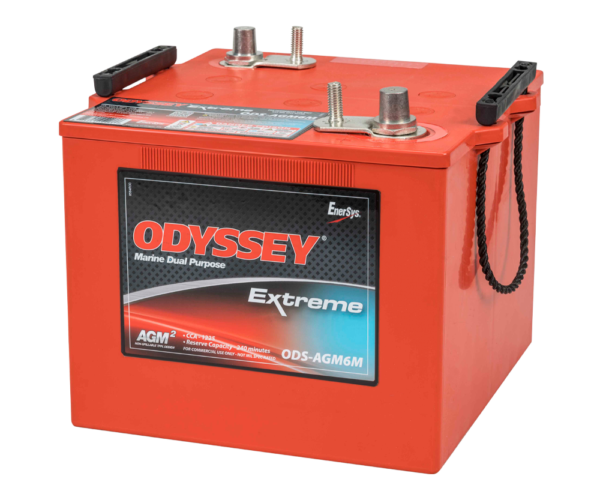

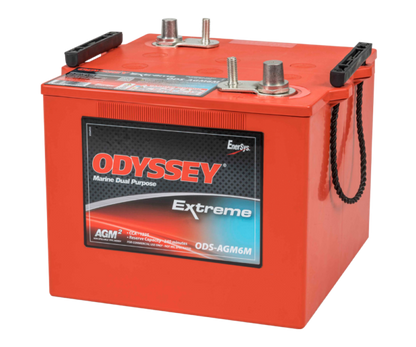

Odyssey Battery ODS-AGM6M 14Ah Extreme Series AGM Battery
Featuring rugged construction and packed tightly with pure lead plates, the non-spillable AGM design ODYSSEY battery protects against the shock and vibration that can quickly destroy other batteries. And the pure lead plates mean 2 times the overall power and 3 times the life of conventional batteries, up to 400 cycles at 80% depth of discharge!
Technical Specifications:
- Length: 11.30in
- Width: 10.60in
- Height (terminals included): 9.20 in
- Height (container): 8.20 in
- Voltage: 12V
- Pulse (5 second) Hot Cranking Amps (PHCA): 2250
- Cold Cranking Amps (CCA): 1225A
- HCA: 1730A
- MCA: 1550A
- 20Hr Nominal Capacity (Ah): 126Ah
- 10Hr Nominal Capacity (Ah): 114Ah
- Reserve Capacity Minutes: 240 mins
- Terminal: SAE and 3/8-16" Stud
- Torque Spec in-lbs (Nm max): 100 (11) stud only
- Internal Resistance (mΩ): 2.1mΩ
- Short Circuit (A): 5000A
- Recommended Min. Charging Current (A):11.4A
- Operating Temperature Range: -40°F / -40°C to 113°F / +45°C
- Optimum Storage Temperature: 68°F / +20°C
- UPC: 635241140866
-
Downloads

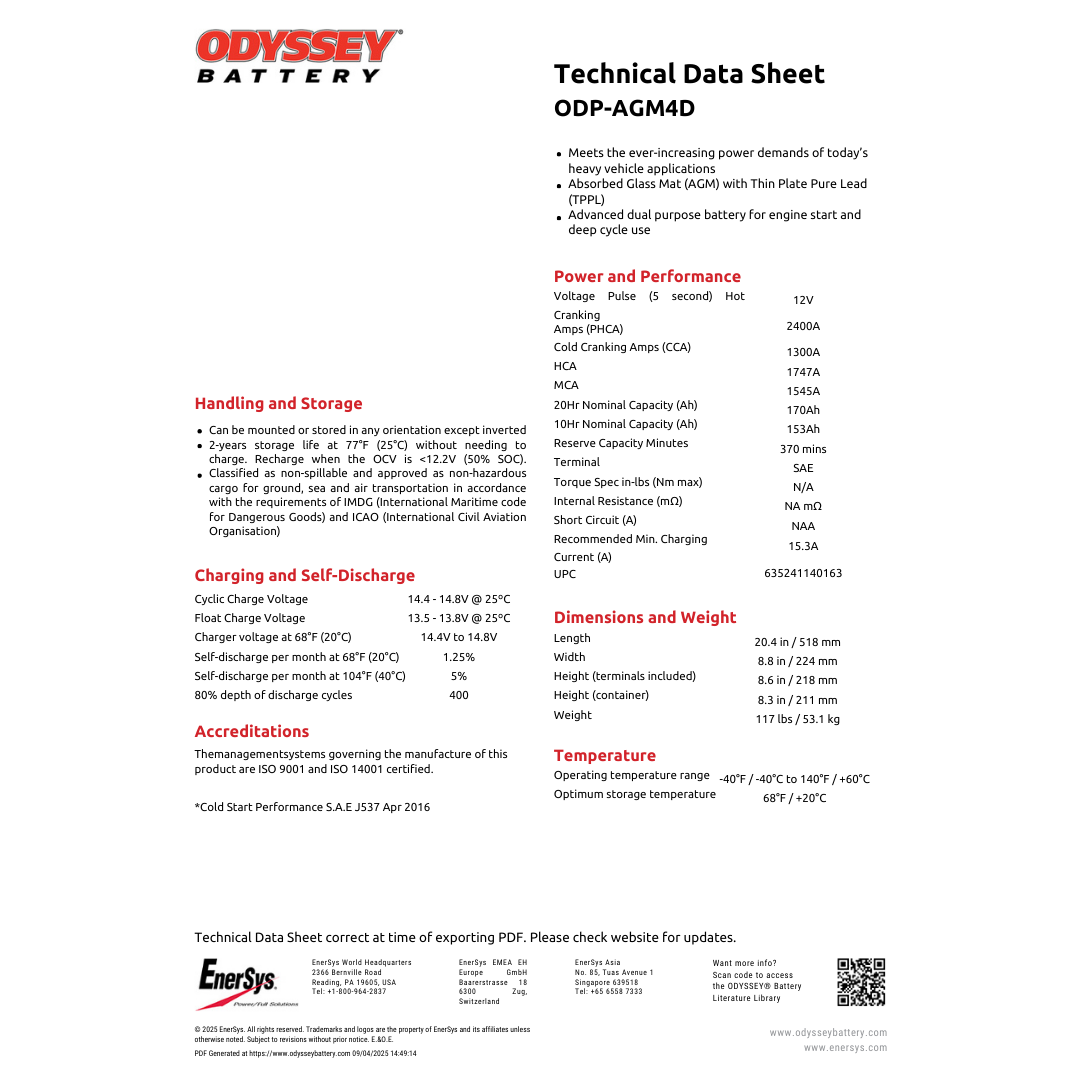

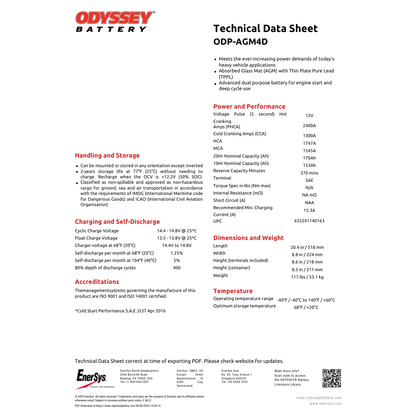

Datasheet
✔️ Datasheet
Quick Installation Guide
No installation guide available. Email support@solux.energy for file request.
Download Spec Sheet
Designed in compliance with applicable BCI, DIN, BS and IEC standards. Tested in compliance to BCI and IEC standards.
