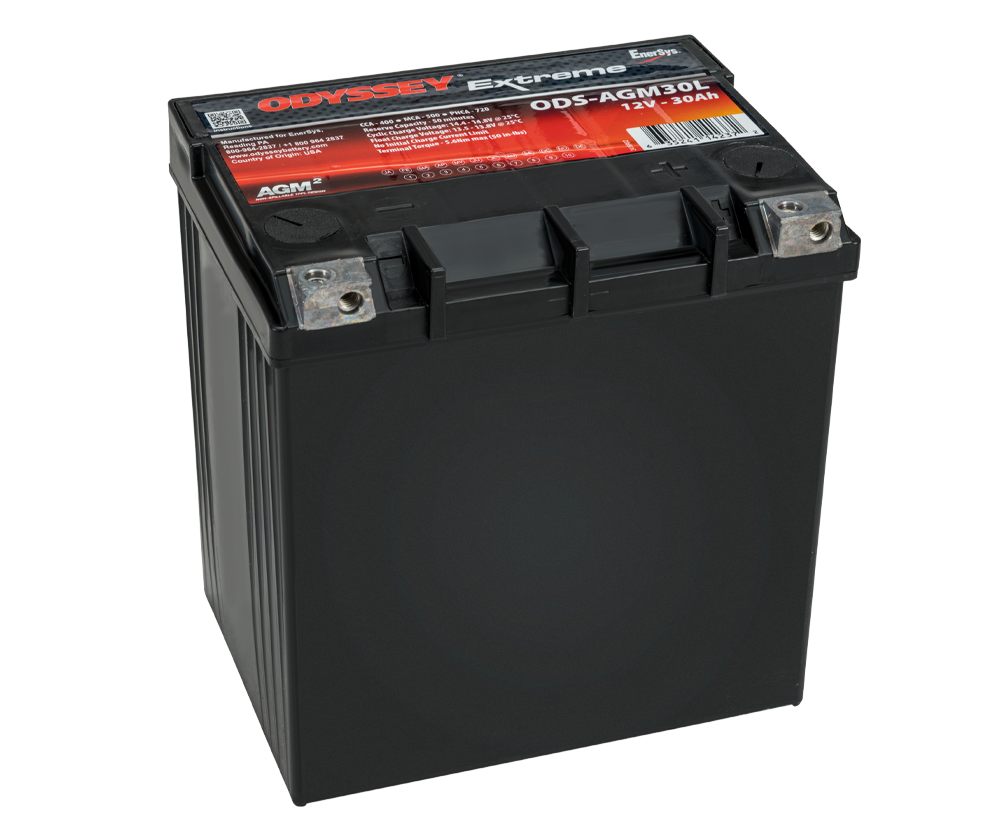

Odyssey Battery ODS-AGM30L 30Ah Extreme Series AGM Battery

Odyssey Battery ODS-AGM30L 30Ah Extreme Series AGM Battery

The new ODS-AGM30L is a drop-in replacement for popular Harley Davidson applications as well as Polaris UTV’s and ATV’s. An upgrade to the ODS-AGM28, the ODS-AGM30L offers more power and better fitment. Like all ODYSSEY powersports batteries, the ODS-AGM30L is a true dual-purpose battery and features a non-spillable Absorbed Glass Mat (AGM) design that’s built to take the pounding delivered by powersport vehicles.

Technical Specifications:

• Length: 6.70 in
• Width: 5.20 in
• Height (terminals included): 6.90 in
• Height (container): 6.90 in
• Weight: 22.90 lb
• Voltage: 12V
• Pulse (5 second) Hot Cranking Amps (PHCA): 850A
• Cold Cranking Amps (CCA): 450A
• HCA: 675A
• MCA: 585A
• 20Hr Nominal Capacity (Ah): 30Ah
• 10Hr Nominal Capacity (Ah): 27Ah
• Reserve Capacity Minutes: 50 mins
• Terminal: M6 Receptacle
• Torque Spec in-lbs (Nm max): 50 (5.6)
• Recommended Min. Charging Current (A): 2.7A
• Operating Temperature Range: -40°F / -40°C to 113°F / +45°C
• Optimum Storage Temperature: 68°F / +20°C
• UPC: 635241142372
