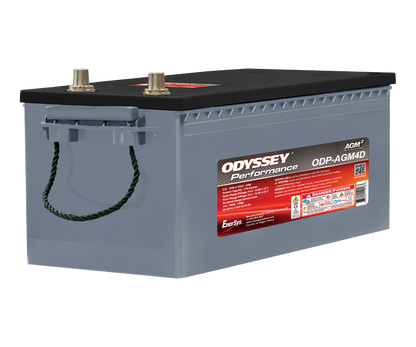

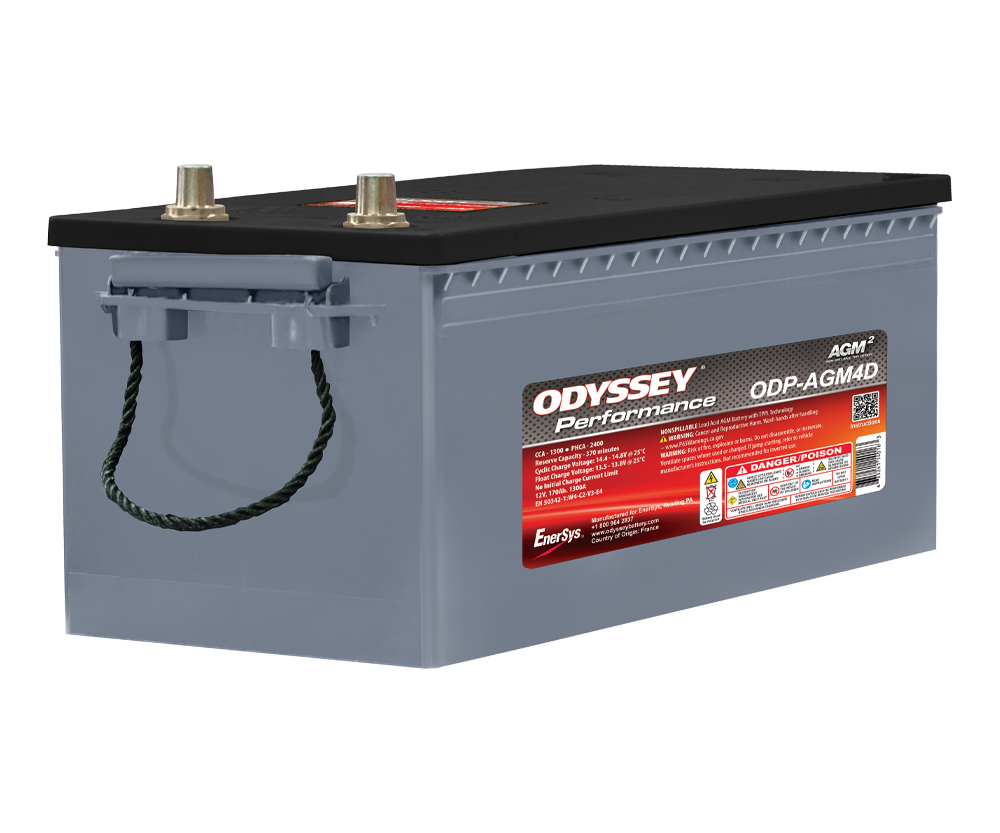

Odyssey Battery ODP-AGM4D 12VDC 100Ah Specialty Battery

Odyssey Battery ODP-AGM4D 12VDC 100Ah Specialty Battery

Whether it’s a heavy duty commercial truck, an earth mover, a bus or a marine application, you depend on the vehicle’s electronics to provide valuable data, direction and even safety features. Therefore, you need a battery that can power those features without worry of failure. ODYSSEY Performance Series™ 4D-1300 batteries meet the ever-increasing power demands of today’s heavy vehicle applications.

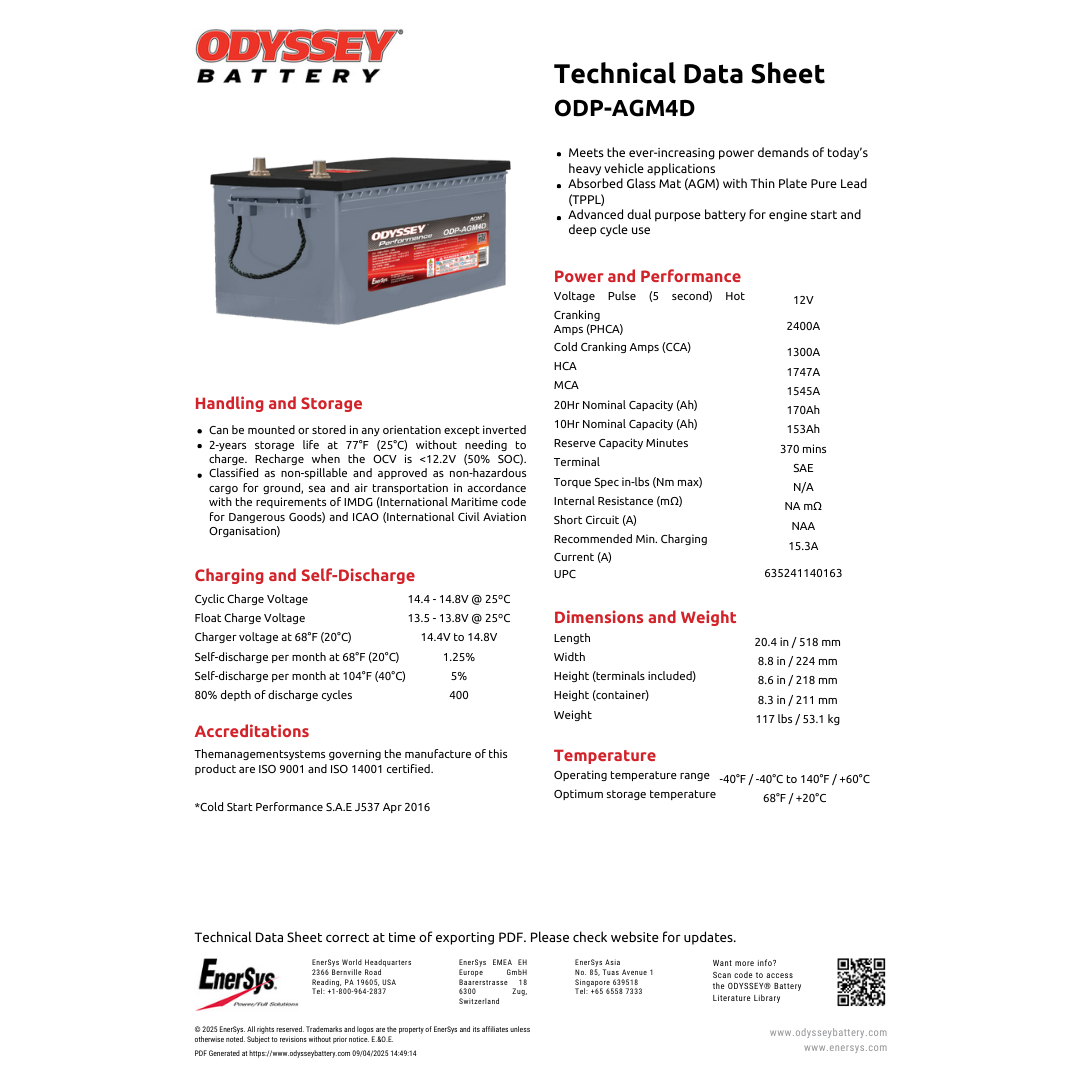

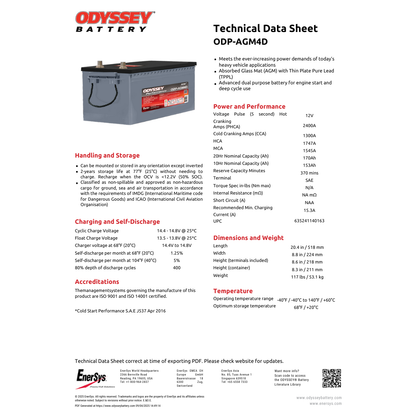

Technical Specifications:

• Length: 20.40 in
• Width: 8.80 in
• Height (terminals included): 8.60 in
• Height (container): 8.30 in
• Voltage: 12V
• Pulse (5 second) Hot Cranking Amps (PHCA): 2400A
• Cold Cranking Amps (CCA): 1300A
• HCA: 1747A
• MCA: 1545A
• 20Hr Nominal Capacity (Ah): 170Ah
• 10Hr Nominal Capacity (Ah): 153Ah
• Reserve Capacity Minutes: 370 mins
• Terminal: SAE
• Torque Spec in-lbs (Nm max): N/A
• Internal Resistance (mΩ): NA mΩ
• Short Circuit (A): NA A
• Recommended Min. Charging Current (A): 15.3A
• Operating Temperature Range: -40°F / -40°C to 140°F / +60°C
• Optimum Storage Temperature: 68°F / +20°C
• UPC: 635241140163
