Description

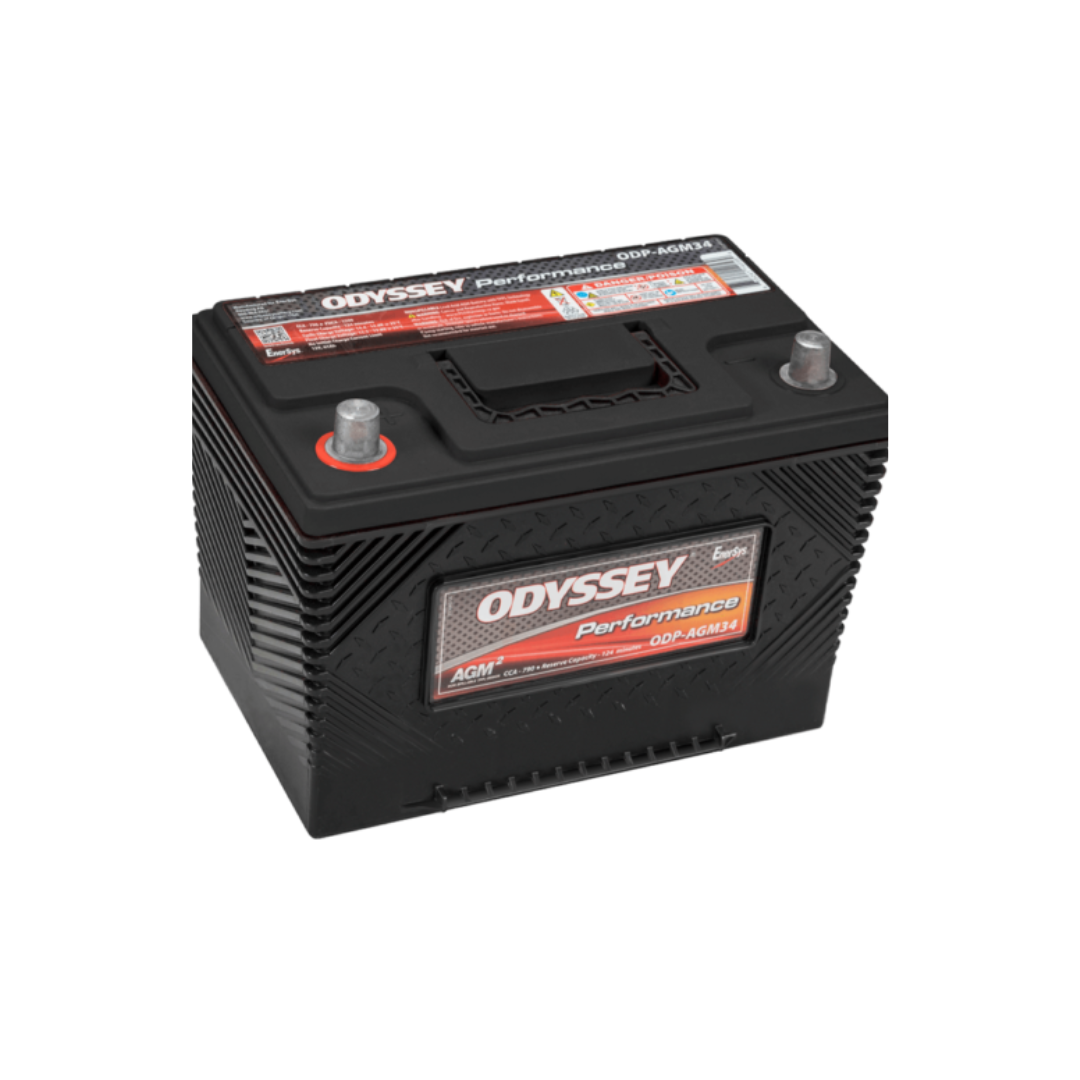

ODYSSEY Performance Battery ODP-AGM34
ODYSSEY batteries deliver the massive starting power, rapid recovery, and amazing deep cycling capability that today’s vehicles demand.
Technical Specifications:
- Length: 10.80 in
- Width: 6.80 in
- Height (terminals included): 7.90 in
- Height (container): 7.40 in
- Weight: 46.60 lbs
- Voltage: 12
- Pulse (5 second) Hot Cranking Amps (PHCA): 1500
- Cold Cranking Amps (CCA): 800
- HCA: 1200
- MCA: 1000
- 20Hr Nominal Capacity (Ah): 65
- 10Hr Nominal Capacity (Ah): 57
- Reserve Capacity Minutes: 130
- Terminal: SAE
- Torque Spec in-lbs (Nm max): N/A
- Internal Resistance (mΩ): 2.9
- Short Circuit (A): 2400
- Recommended Min. Charging Current (A): 5.7
- Operating Temperature Range: -40°F / -40°C to 140°F / +60°C
- Optimum Storage Temperature: 68°F / +20°C
- UPC: 635241140569
-
Downloads

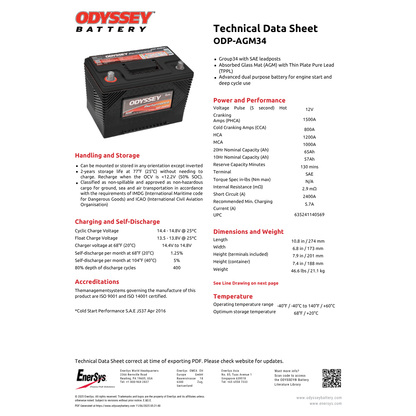

Datasheet
✔️ Datasheet
Quick Installation Guide
No installation guide available. Email support@solux.energy for file request.
Download Spec Sheet
Designed in compliance with applicable BCI, DIN, BS and IEC standards. Tested in compliance to BCI and IEC standards.
