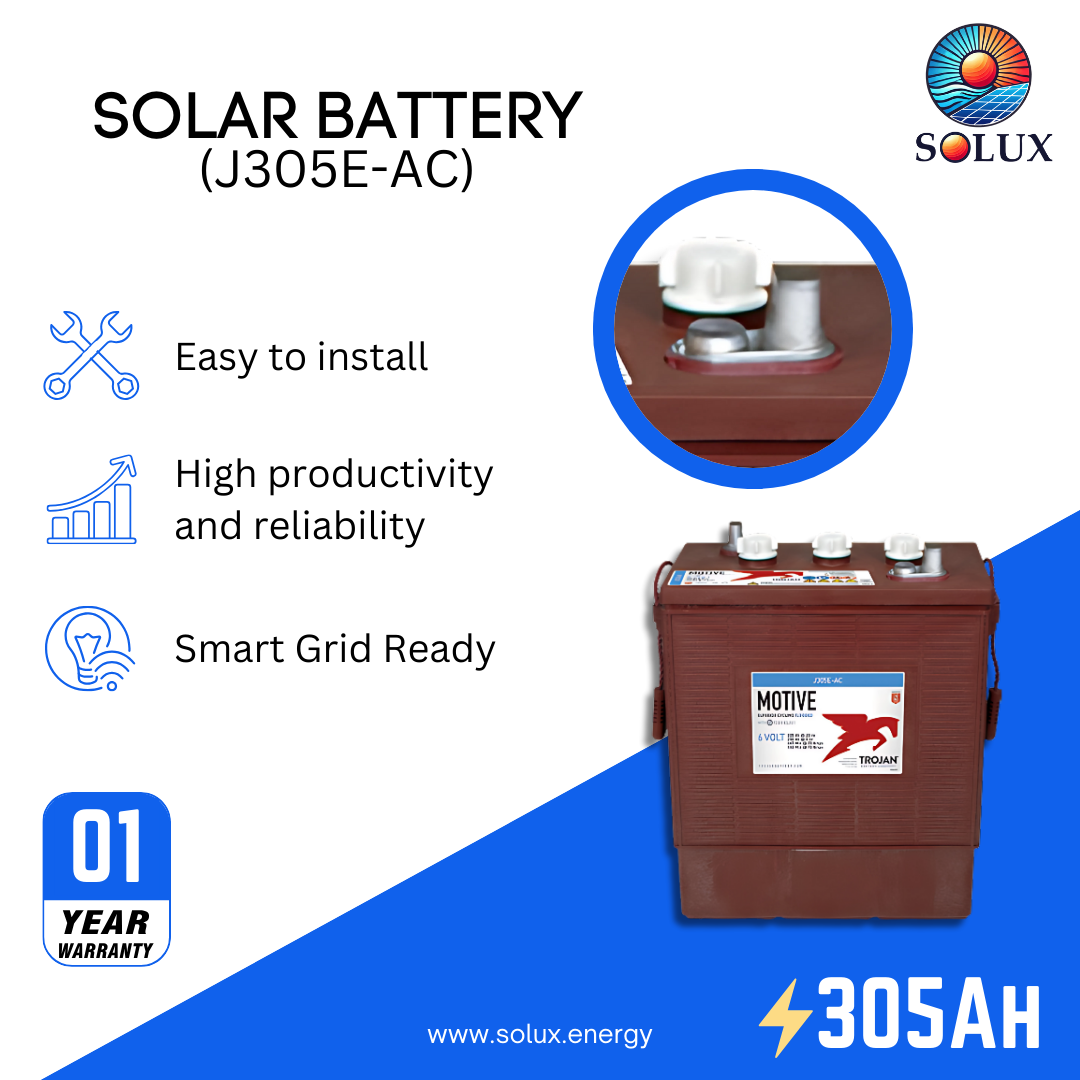

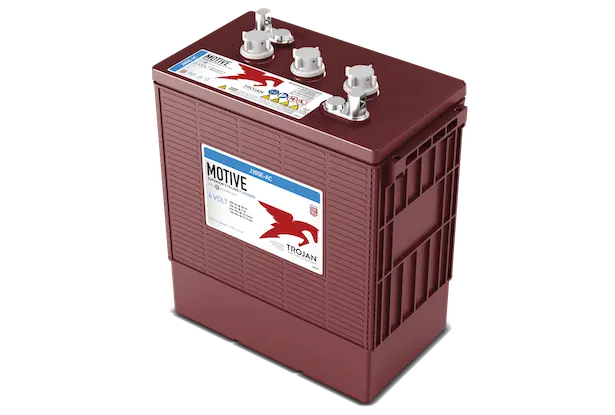

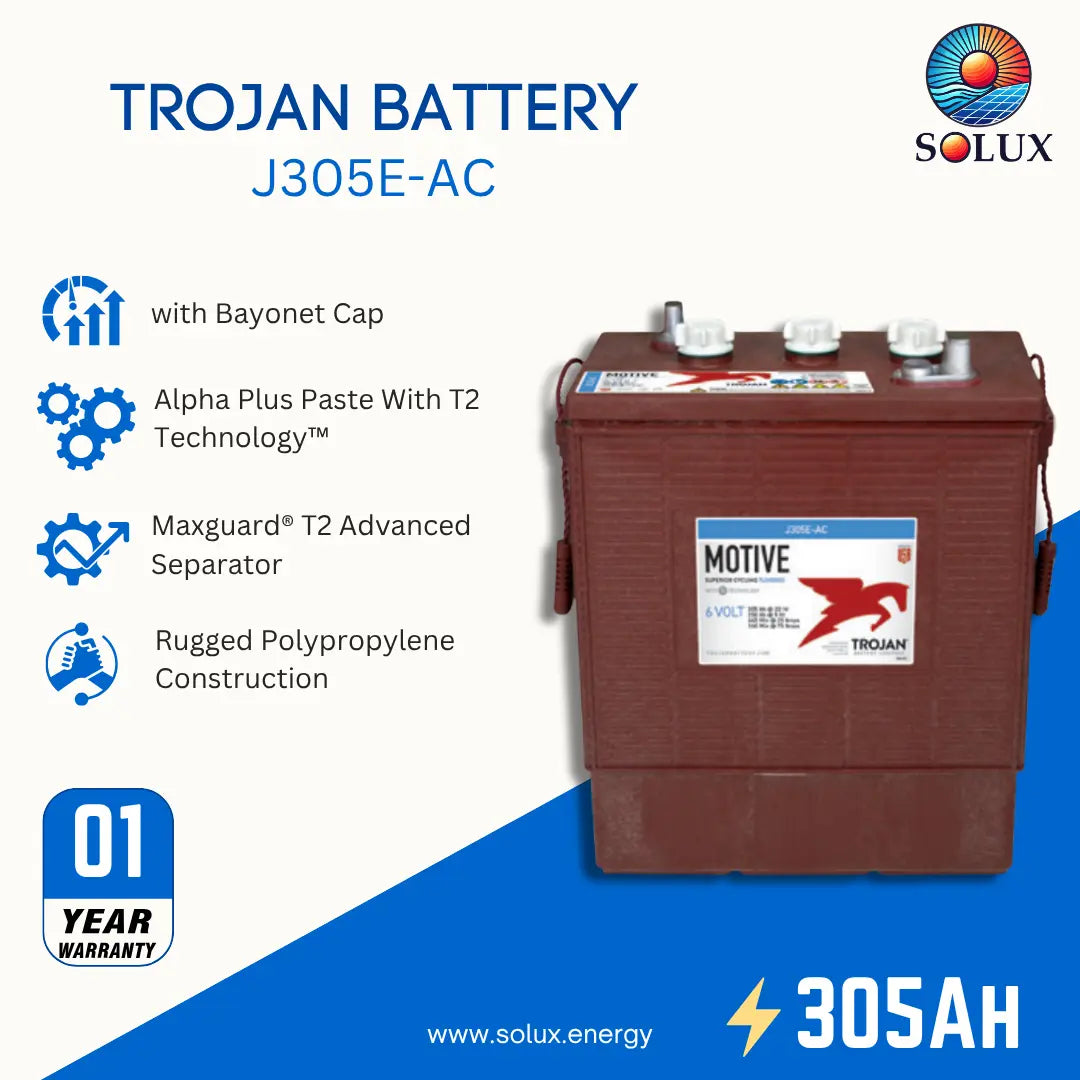

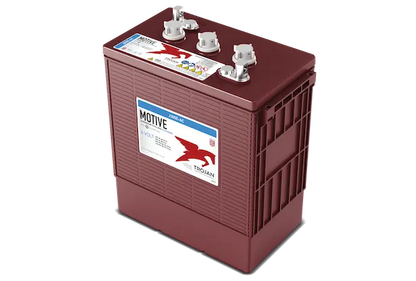

Trojan Motive J305E-AC 305Ah 6VDC Group 902 Signature Deep-Cycle Flooded Battery

TrojanJ305E-AC 6V Flooded Lead Acid Battery

The J305E-AC 6V Flooded Lead Acid battery provides outstanding sustained power to Aerial Work Platforms, avoiding downtime and increasing productivity. The deep cycle technology inside this battery offers a longer life with low life cycle costs.

Features & Benefits

• Maxguard® Advanced Design Separator and Alpha Plus® paste formulation for long life, industry-leading performance and lower overall maintenance costs.
• Heat and corrosion resistant
• With braided rope handles for easy carrying
• HydroLink™ single-point watering system available
• Only 5-15% self-discharge per month
• 99% recyclable

Two battery case options:

• Polyon™ case for exceptional durability in heavy service applications
• Generic case design for standard applications

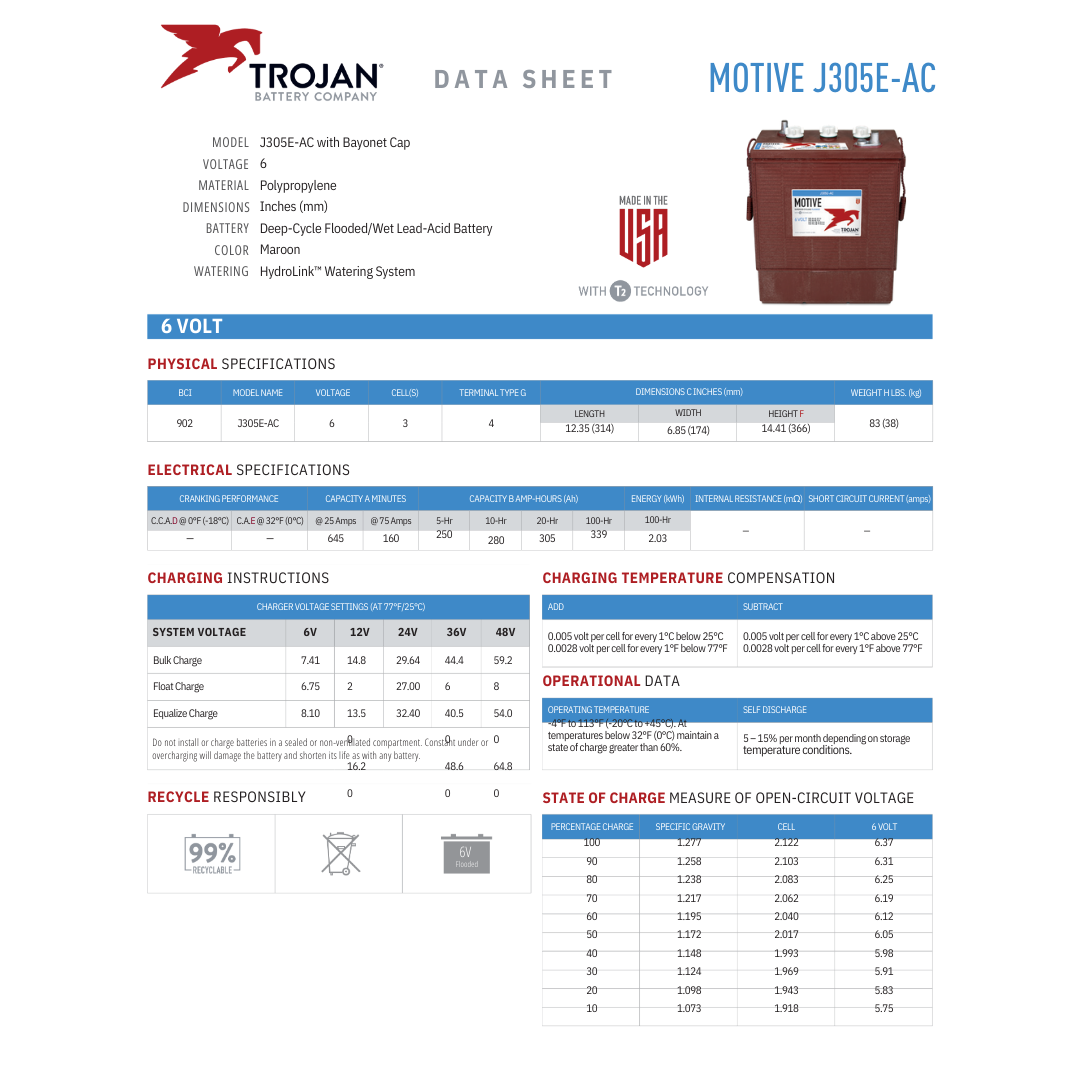

Technical Specifications:

• Capacity Minutes: @25 Amps / 645
• Capacity Minutes: @75 Amps / 160
• Capacity Amp-Hours: 5-Hr Rate / 250 Ah
• Capacity Amp-Hours: 10-Hr Rate / 280 Ah
• Capacity Amp-Hours: 20-Hr Rate / 305 Ah
• Capacity Amp-Hours: 100-Hr Rate / 339 Ah
• Energy (kWh): 2.03
• Length Inches (mm): 12.35” / (314mm)
• Width Inches (mm): 6.85” / (174mm)
• Height Inches (mm0: 14.41” / (366mm)
• Weight lbs. (kg): 83 / (38)
• Operating Temperature: -4°F to 113°F (-20°C to +45°C)
