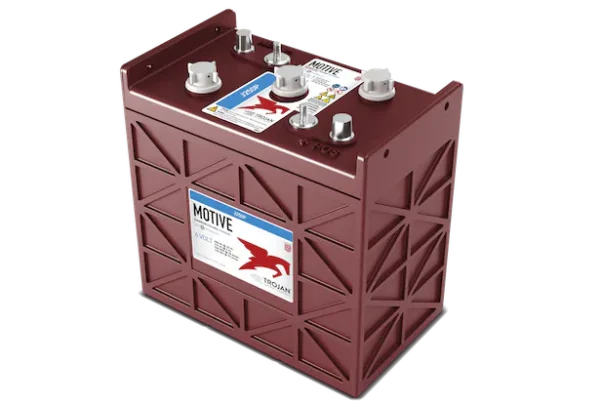

Trojan J250 6V 250Ah Deep Cycle Flooded Lead Acid Battery W/ T2 Technology

Trojan J250P 6V 250Ah Motive Deep-Cycle Battery (Group 901)

The Trojan J250P is a premium 6V flooded lead-acid battery from the flagship Signature Line. Engineered for the most demanding deep-cycle applications, this 250Ah battery is the professional’s gold standard for aerial work platforms (AWPs), industrial floor machines, and high-capacity solar arrays.

The Trojan Advantage: T2 Technology™

• Alpha Plus® Paste: A proprietary, high-density paste formulation that optimizes porosity for sustained performance and higher total ampere-hours.
• Maxguard® T2 Separator: Multi-rib geometry keeps acid channels open longer, reducing stratification and significantly extending service life in heavy-cycling apps.
• HydroLink™ Ready: Compatible with the single-point watering system, allowing you to maintain a full battery bank in under 30 seconds.
• Rugged Polyon™ Case: Heat and chemical-resistant polypropylene construction protects the internal plates from the mechanical stress of industrial job sites.



Features & Benefits

• Manufactured polypropylene rugged case
• Heat and corrosion resistant
• With braided rope handles for easy carrying
• Only 5-15% self-discharge per month
• HydroLink™ single-point watering system available
• HydroLink™ single-point watering system makes maintenance easy and safe
• 99% recyclable

Technical Specifications:

• Capacity Minutes: @25 Amps / 540
• Capacity Minutes: @75 Amps / 135
• Capacity Amp-Hours: 10-Hr Rate / 230 Ah
• Capacity Amp-Hours: 20-Hr Rate / 250 Ah
• Capacity Amp-Hours: 100-Hr Rate / 278 Ah
• Length Inches (mm): 11.66” / (296mm)
• Width Inches (mm): 6.94” / (176mm)
• Height Inches (mm): 11.54” / (293mm)
• Weight lbs. (kg): 72 (33)
• Operating Temperature: -4°F to 113°F (-20°C to +45°C)
• Part Number: 6V 250Ah
• Group Size: 901
• Battery Type: Deep Cycle Flooded Lead Acid Batteries
• Battery Voltage: 6 Volt
