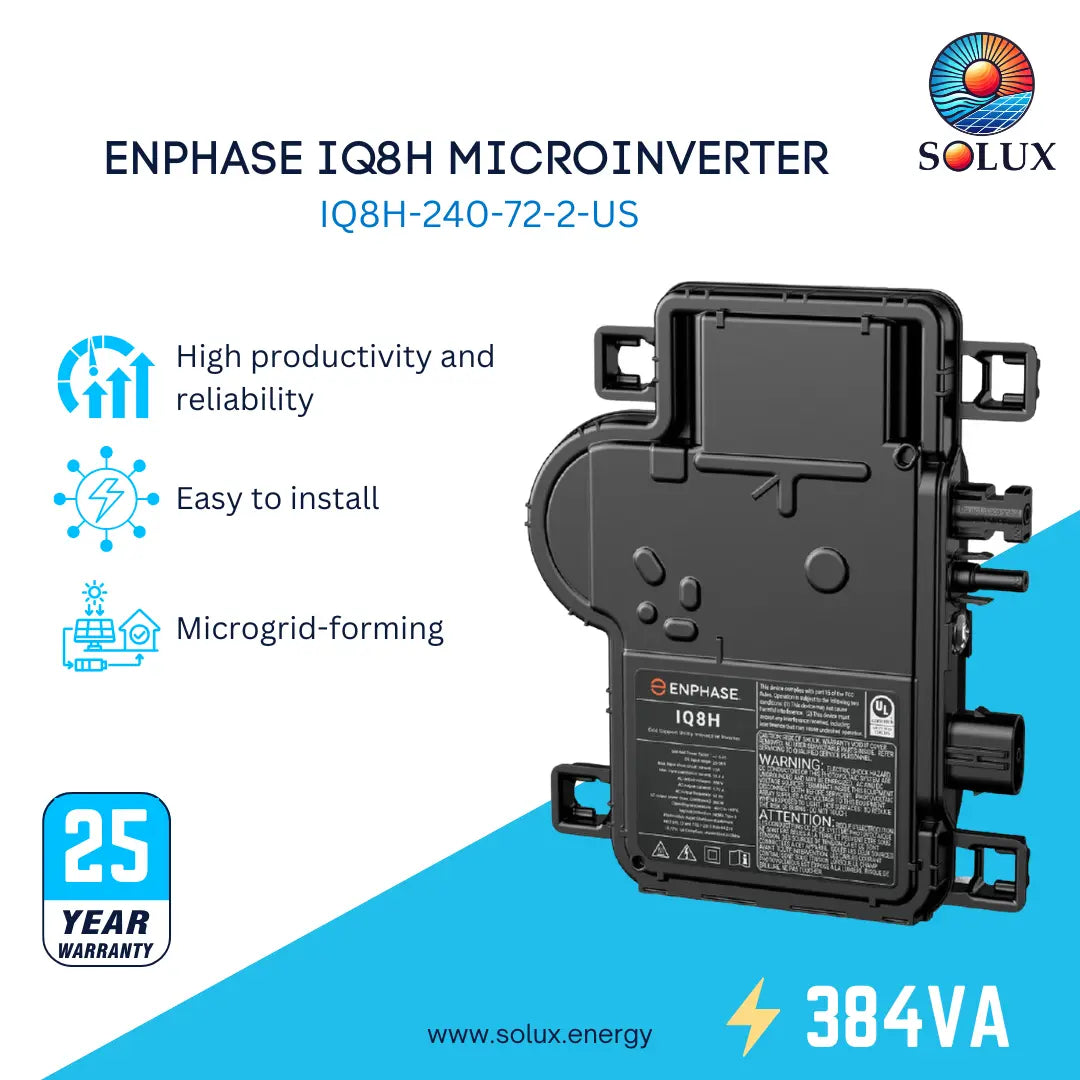

Enphase IQ8H Microinverter (IQ8H-240-72-2-US)

Enphase IQ8H Microinverter (IQ8H-240-72-2-US)

The Enphase IQ8H (IQ8H-240-72-2-US) is the industry’s most powerful residential microinverter, engineered specifically for high-wattage 72-cell and 144-half-cell solar panels. With a peak output of 384 VA, the IQ8H minimizes clipping on premium modules up to 540W+, ensuring you harvest every available watt during peak sun hours.

The IQ8H Advantage: Resilience & Reliability

• Sunlight Backup™ Ready: Features revolutionary grid-forming technology that enables your home essentials to stay powered during grid outages—even without a battery (requires IQ System Controller).
• High-Output Performance: Optimized for 440W to 540W+ panels, delivering a massive 380VA continuous AC output for modern, ultra-efficiency arrays.
• NEC 2023 Rapid Shutdown: Fully compliant with integrated rapid shutdown, eliminating the need for expensive additional hardware or roof-mounted shutdown boxes.
• Low-Light Efficiency: Proprietary Burst Mode™ technology allows the system to harvest energy earlier in the morning and later in the evening than traditional string inverters.

This product is supplied with MC4 connectors

• Manufacturer Part Number: IQ8H-240-72-2-US
• UL Certificate
• Voltage: 240 Volt
• Manufacturer Warranty: 25 Years
• Performance Warranty: 25
• Weight: 1.08 kg (2.38 lbs)
• Dimensions: 212 mm (8.3”) x 175 mm (6.9”) x 30.2 mm (1.2”)
• Case Qty: 18
• Pallet Qty: 756
