Enphase IQ7+ Microinverter (IQ7PLUS-72-M-US)
The Enphase IQ7+ Microinverter (IQ7PLUS-72-M-US) is a high-efficiency, smart grid-ready power electronics solution designed for modern solar installations. Built on Enphase’s seventh-generation platform, this microinverter provides module-level power optimization to maximize energy harvest from high-powered PV modules.
- 97% CEC efficiency
- Faster installation with improved, lighter two-wire cabling
- Built-in rapid shutdown compliant (NEC 2014, 2017, 2020)
- Complies with advanced grid support, voltage, and frequency ride-through requirements
- Remotely updates to respond to changing grid requirements
- Configurable for varying grid profiles
- More than a million hours of testing
- Class II double-insulated enclosure
- UL Listed
- Meets CA Rule 21 (UL 1741-SA) and IEEE 1547:2018 (UL 1741-SB, 3rd ed.)
- Up to 25-year limited warranty
-
Technical specifications
- Peak output power: 295 VA
- Input power: 235 - 440+ W
- Maximum continuous output power: 290 VA
- Operating range: 16 - 60 V
- Dimension: 212 mm x 175 mm x 30.2 mm (excluding the mounting bracket).
- Weight: 2.4 lbs
-
Compatibility
- 60-cell and 72-cell PV module
- Half-cell and Bi-facial PV modules
- IQ Gateway
- IQ Battery
- Q Cable
-
What's in the box
- IQ7+ Microinverter
- Mounting bracket
-
Resources

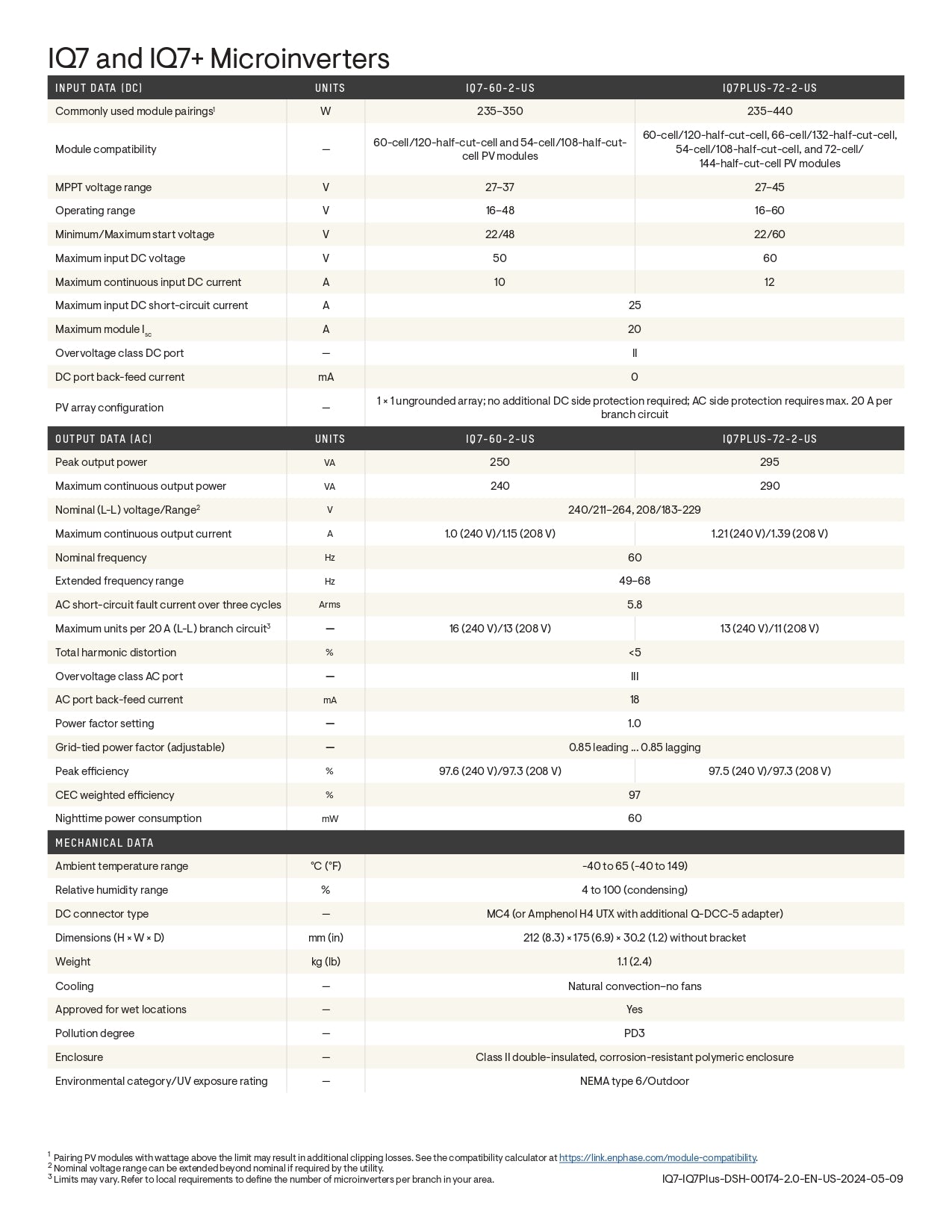

Datasheet
✔️ Download IQ7 and IQ7+ Microinverters data sheet
Installation Guide
✔️ Download Application filing handbook for Enphase expansion systems -
Warranty
As one of the industry's most reliable solar inverters, the IQ7+ is backed by a limited 25-year product warranty. This long-term coverage protects your investment in renewable energy for the entire lifespan of the system.
-
Advanced Features & Integration
The Enphase Energy ecosystem allows for seamless monitoring through the Enphase App and IQ Gateway. Additional features include built-in rapid shutdown compliance (NEC 2014, 2017, and 2020) for enhanced fire safety during solar installations.
Download Spec Sheet
By choosing the IQ7+ you are investing in a reliable, future-proof solution that maximizes the return on your solar investment through superior module-level power management.
