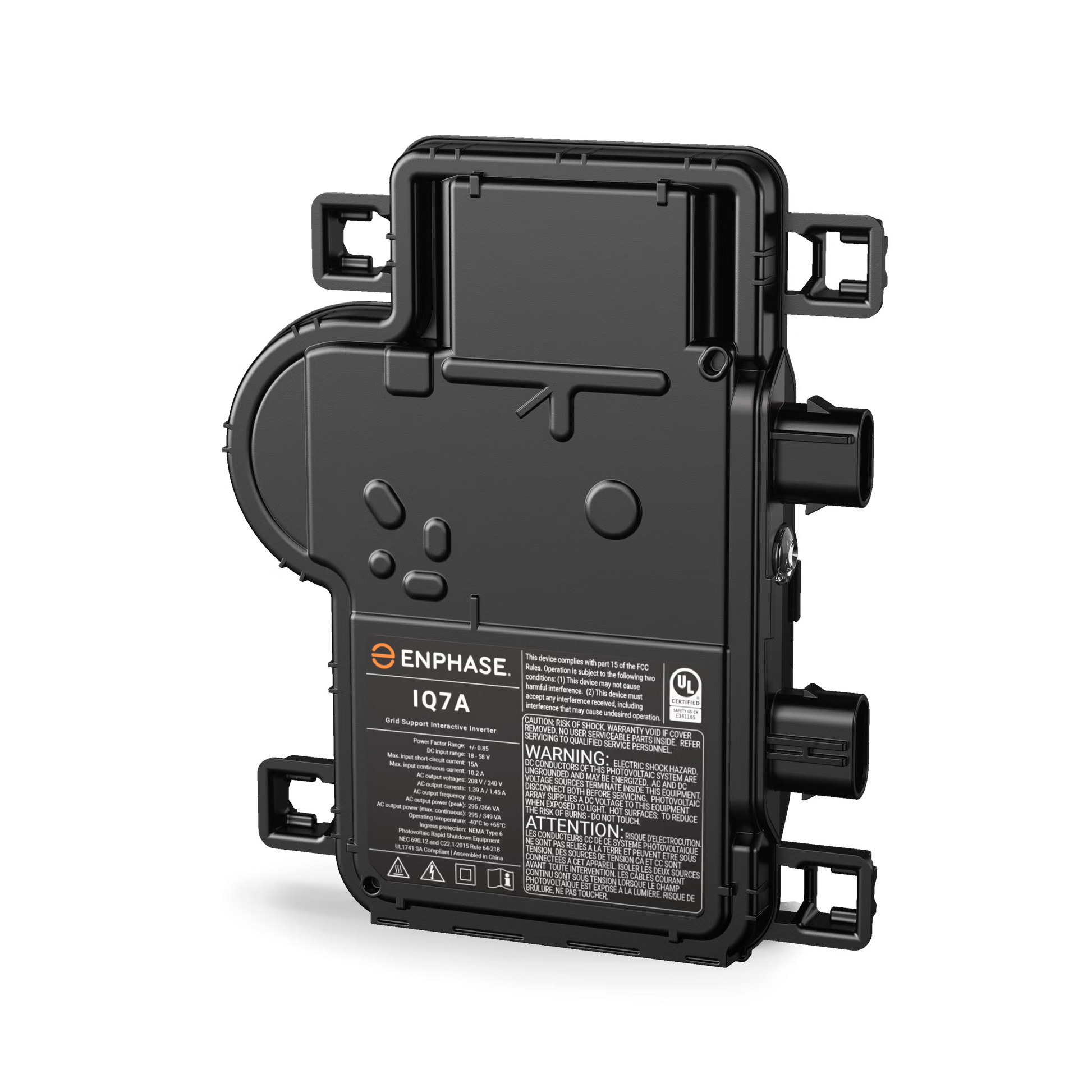

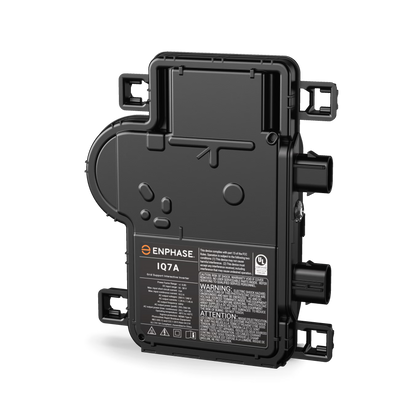

Enphase IQ7A Microinverter (IQ7A-72-M-US)

Enphase IQ7A-72-M-US Micro Inverter 240 Volts AC With MC4 Connectors For 60, 66, & 72 Cell Modules

The smart-grid ready Enphase IQ 7 Microinverter series is built on the seventh-generation platform and achieves the highest efficiency for module-level power electronics. Its polymeric enclosure and revolutionary cabling system simplify installation.

Key Benefits

• Lightweight and simple
• Faster installation with improved, lighter two-wire cabling
• Built-in rapid shutdown compliant (NEC 2014 & 2017)
• Optimized for high powered 60-cell, 66-cell, and 72-cell modules
• More than a million hours of testing
• Class II double-insulated enclosure
• UL listed
• Complies with advanced grid support, voltage and frequency ride-through requirements
• Remotely updates to respond to changing grid requirements
• Configurable for varying grid profiles
• 25 Year Warranty in the United States, U.S. territories, and Canada

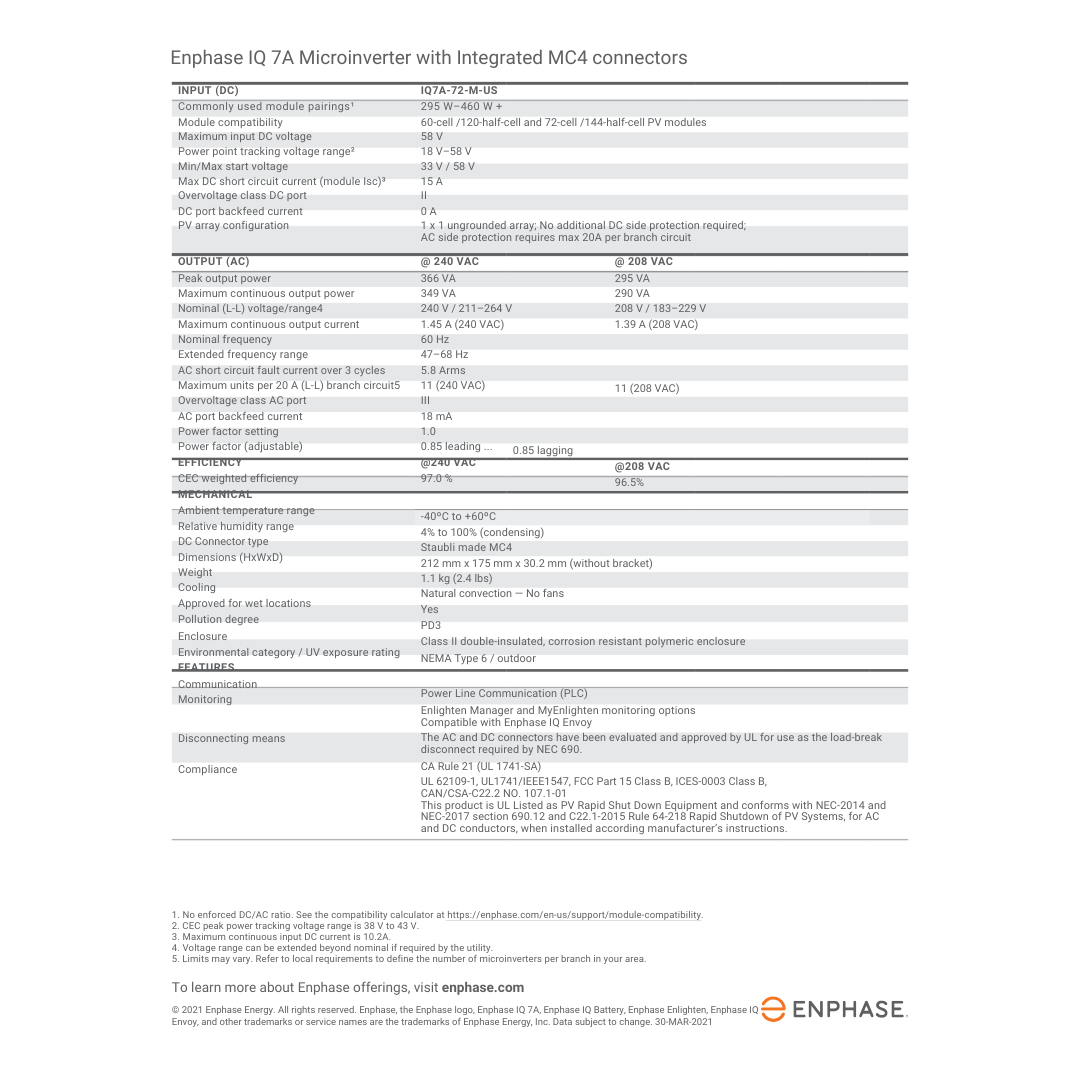

Technical Specifications:

• Optimized for high powered 60-cell, 66-cell, & 72-cell modules
• Max Continuous Output Power: 349 VA
• Recommended PV module input power: 295-460+ W
• MPPT Range: 18V – 58V
• Min/Max start voltage: 30V / 58V
• 97.0% CEC Efficiency (@ 240VAC)
• Configurable for variable grid profiles like Hawaiian Electric Company (HECO) Rule 14H, California Rule 21, and others
• Connector type: MC4 locking type
• Dimensions (WxHxD): 212 mm x 175 mm x 30.2 mm (without bracket)
• Weight: 1.08 kg (2.38 lbs)
• Cooling: Natural convection - No fans
• Approved for wet locations: Yes
• Enclosure: Class II double-insulated
• Environmental category / UV exposure rating: NEMA Type 6 / outdoor
