Description

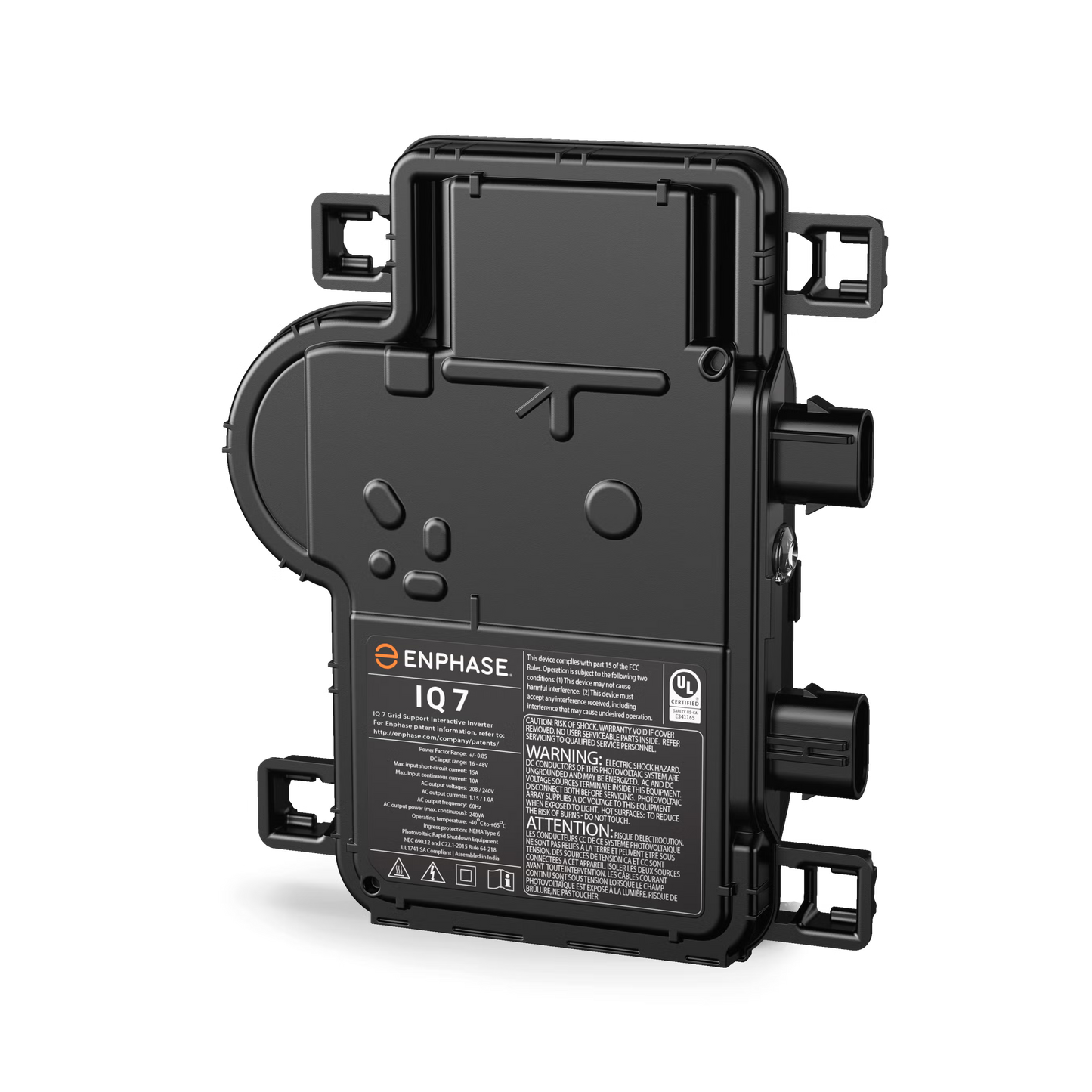

Enphase IQ7 Microinverter (Q-DCC)
The high-powered Enphase IQ7 Microinverter dramatically simplifies the installation process while achieving high system efficiency. Part of the Enphase Energy System, the IQ7 Microinverter integrates with the IQ Battery, the IQ Gateway, and the Enphase App.
Key Benefits
- 97% CEC efficiency
- Faster installation with improved, lighter two-wire cabling
- Built-in rapid shutdown compliant (NEC 2014, 2017, 2020)
- Complies with advanced grid support, voltage, and frequency ride-through requirements
- Remotely updates to respond to changing grid requirements
- Configurable for variable grid profiles
- More than a million hours of testing
- Class II double-insulated enclosure
- UL Listed
- Meets CA Rule 21 (UL 1741-SA) and IEEE 1547:2018 (UL 1741-SB, 3rd ed.)
- Up to 25-year limited warranty
Technical Specifications:
- Peak output power: 250 VA
- Module pairing: 235–350 W
- Maximum continuous output power: 240 VA
- Operating range: 16–48 V
- Dimensions (HxWxD): 30 mm x 172 mm x 212 mm
- Weight: 2.38 lbs
-
Downloads
Datasheet
✔️ Datasheet
Quick Installation Guide
No installation guide available. Email support@solux.energy for file request.
Warranty
25 Years Warranty
Download Spec Sheet
Designed in compliance with applicable BCI, DIN, BS and IEC standards. Tested in compliance to BCI and IEC standards.
