Description

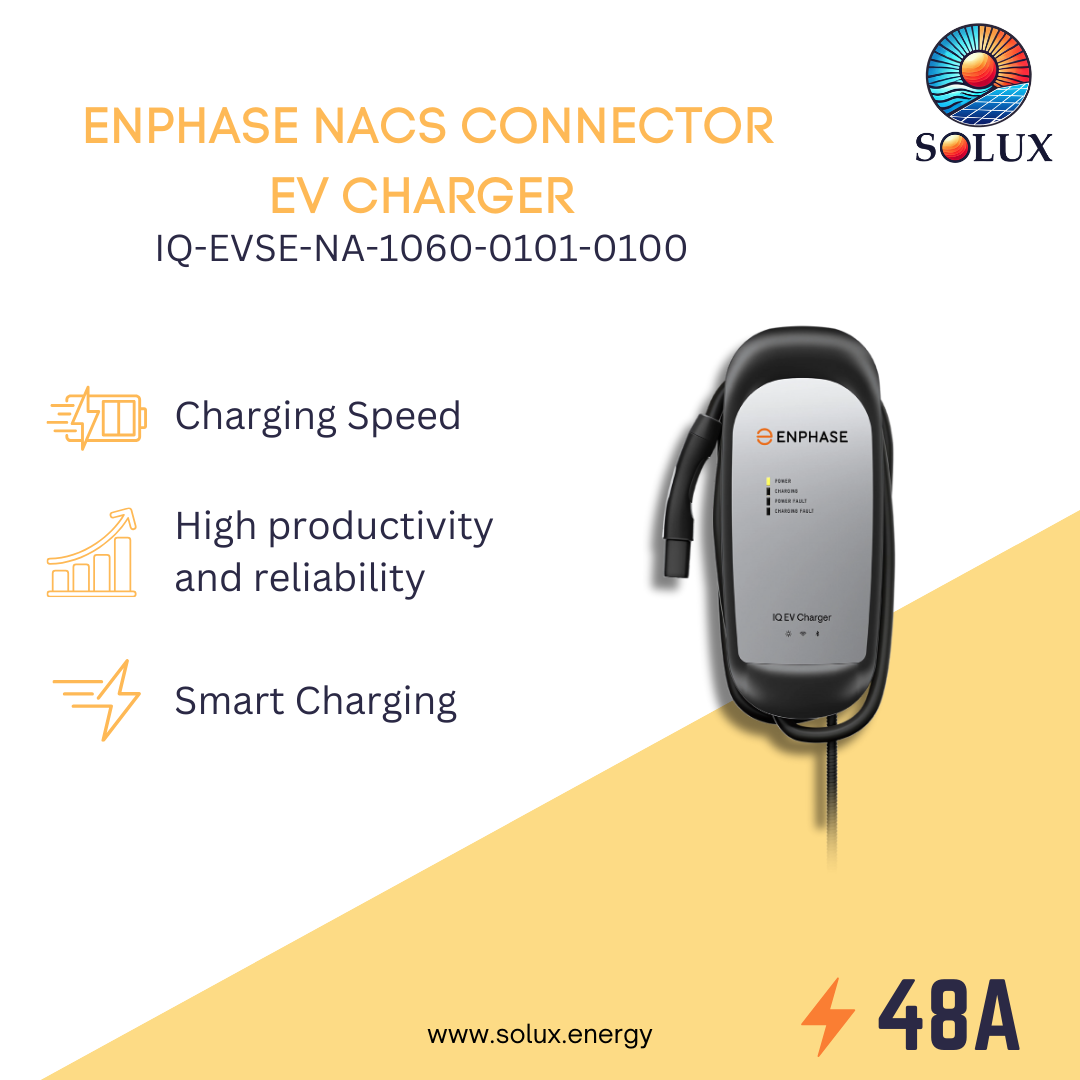

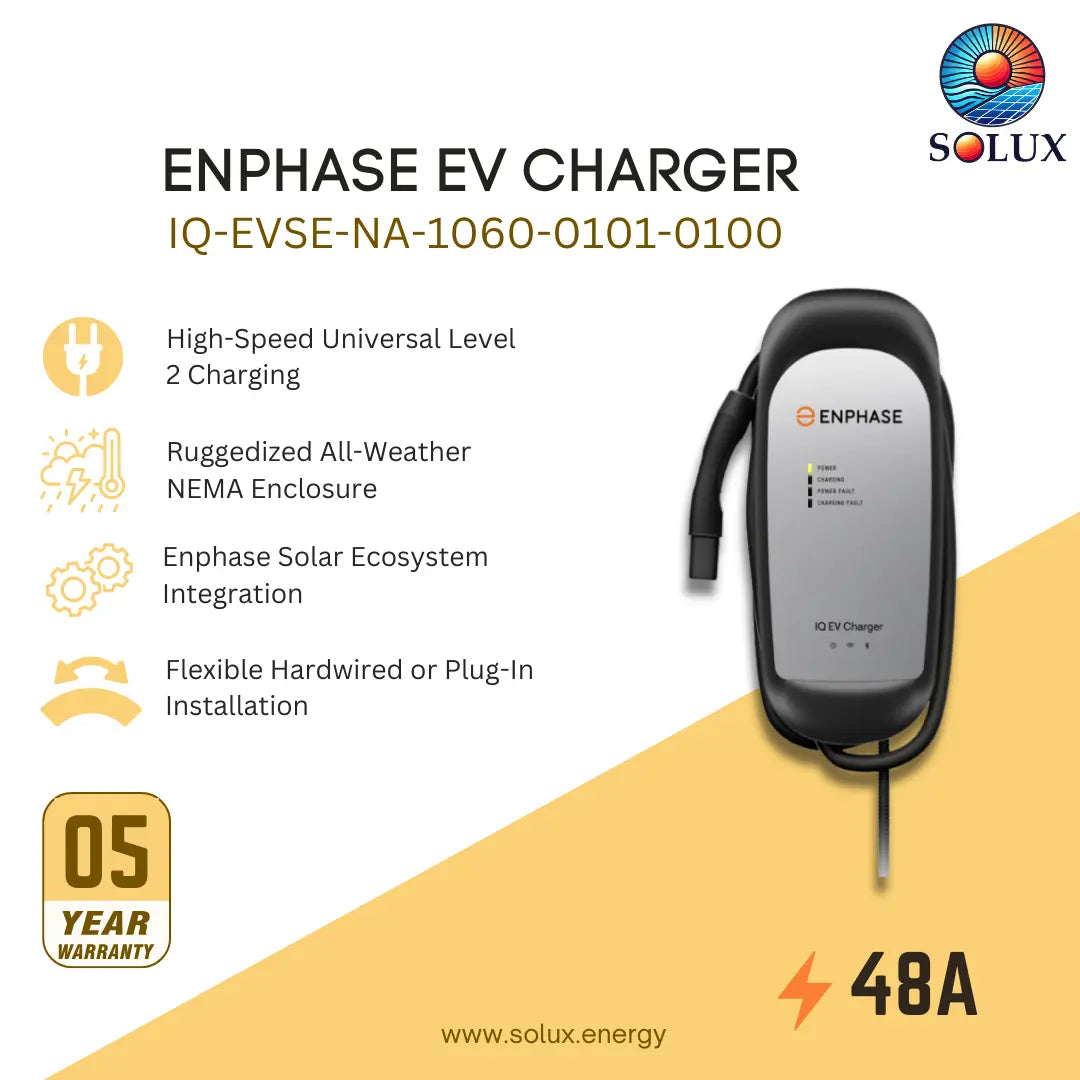

Enphase IQ-EVSE-NA-1060-0101-0100 IQ 60 EV Charger
The Enphase IQ 60 EV Charger (IQ-EVSE-NA-1060-0101-0100) is a high-performance Level 2 smart charging solution designed for residential and commercial energy ecosystems. Delivering up to 11.5 kW of continuous power, this hardwired unit provides approximately 46 miles of range per hour, making it nearly 10x faster than a standard Level 1 charger.
Specifically engineered with a factory-installed NACS connector, it offers native compatibility for Tesla and other NACS-equipped electric vehicles without the need for adapters.
Why the Enphase IQ 60 Stands Out
- Solar-Powered Charging: When integrated with the Enphase Energy System, you can charge your vehicle using 100% excess solar power.
- Smart App Control: Monitor, control, and schedule charging sessions via the Enphase App to take advantage of off-peak utility rates.
- Rugged All-Weather Design: A fully sealed NEMA 4-rated enclosure allows for reliable indoor or outdoor installation, backed by an industry-leading 5-year limited warranty.
- Intelligent Grid Management: Features like Storm Guard automatically prioritize a full EV charge when severe weather is detected in your area.

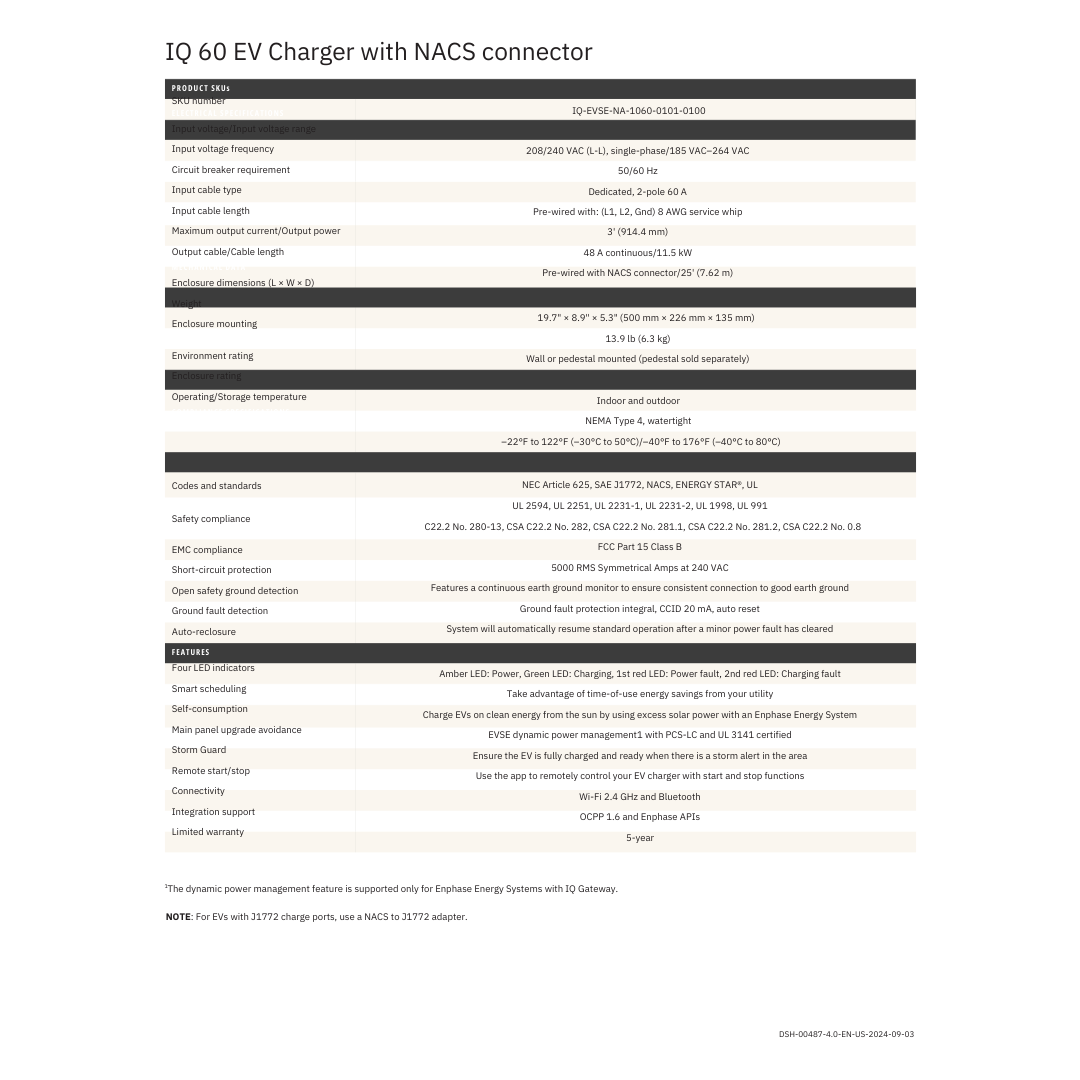

Technical Specifications
- Manufacturer Part #: IQ-EVSE-NA-1060-0101-0100
- Item Weight: 26.8 lb
- Dimensions (LxWxH): 23 x 20 x 10 inches
- Input voltage/Input voltage range: 208/240 VAC (L-L), single-phase/185 VAC–264 VAC
- Input voltage frequency: 50/60 Hz
- Circuit breaker requirement: Dedicated, 2-pole 60 A
- Input cable type: Pre-wired with: (L1, L2, Gnd) 8 AWG service whip
- Input cable length: 3' (914.4 mm)
- Maximum output current/Output power: 48 A continuous/11.5 kW
- Output cable/Cable length: Pre-wired with NACS connector/25' (7.62 m
-
Resources
Download Spec Sheet
Designed in compliance with applicable BCI, DIN, BS and IEC standards. Tested in compliance to BCI and IEC standards.
