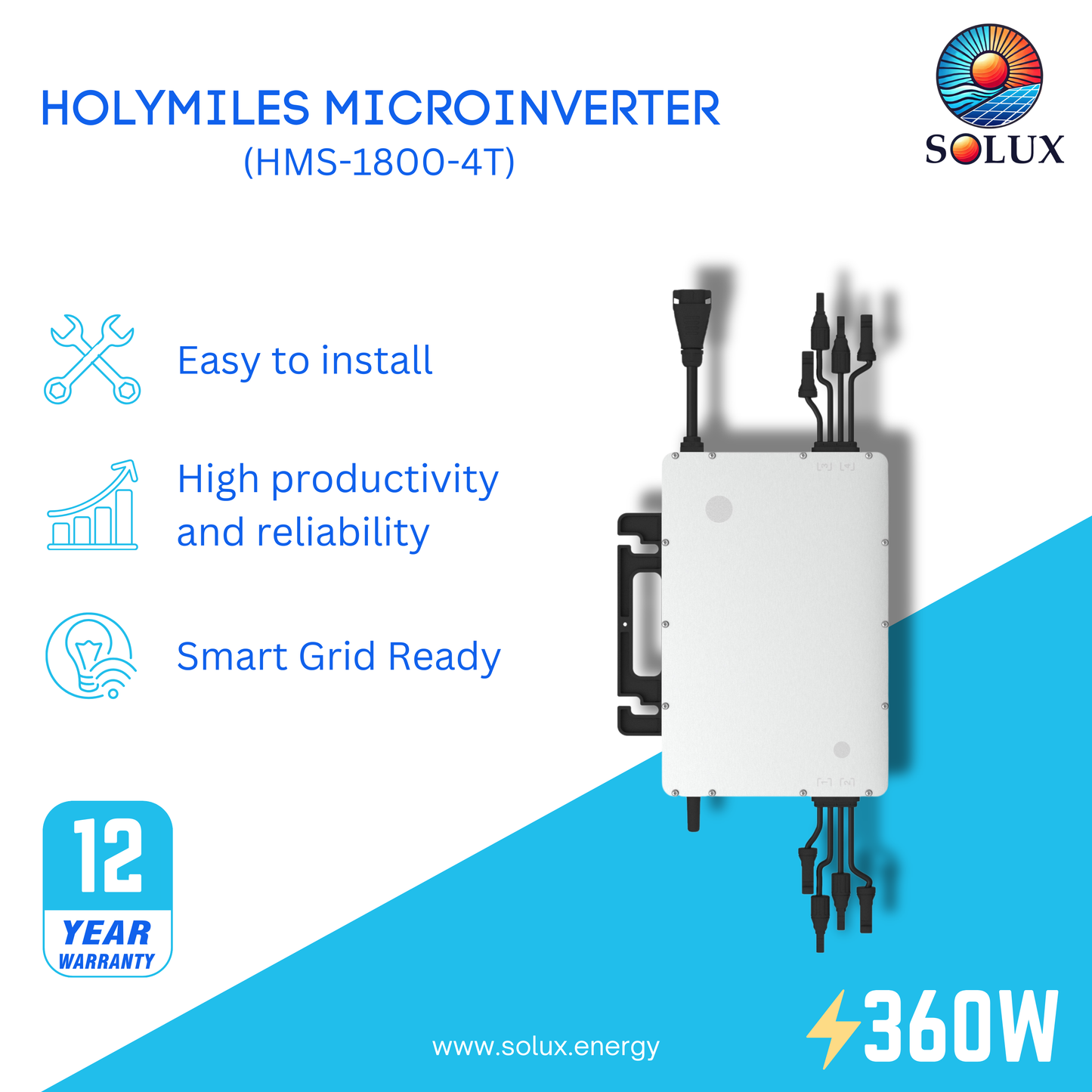

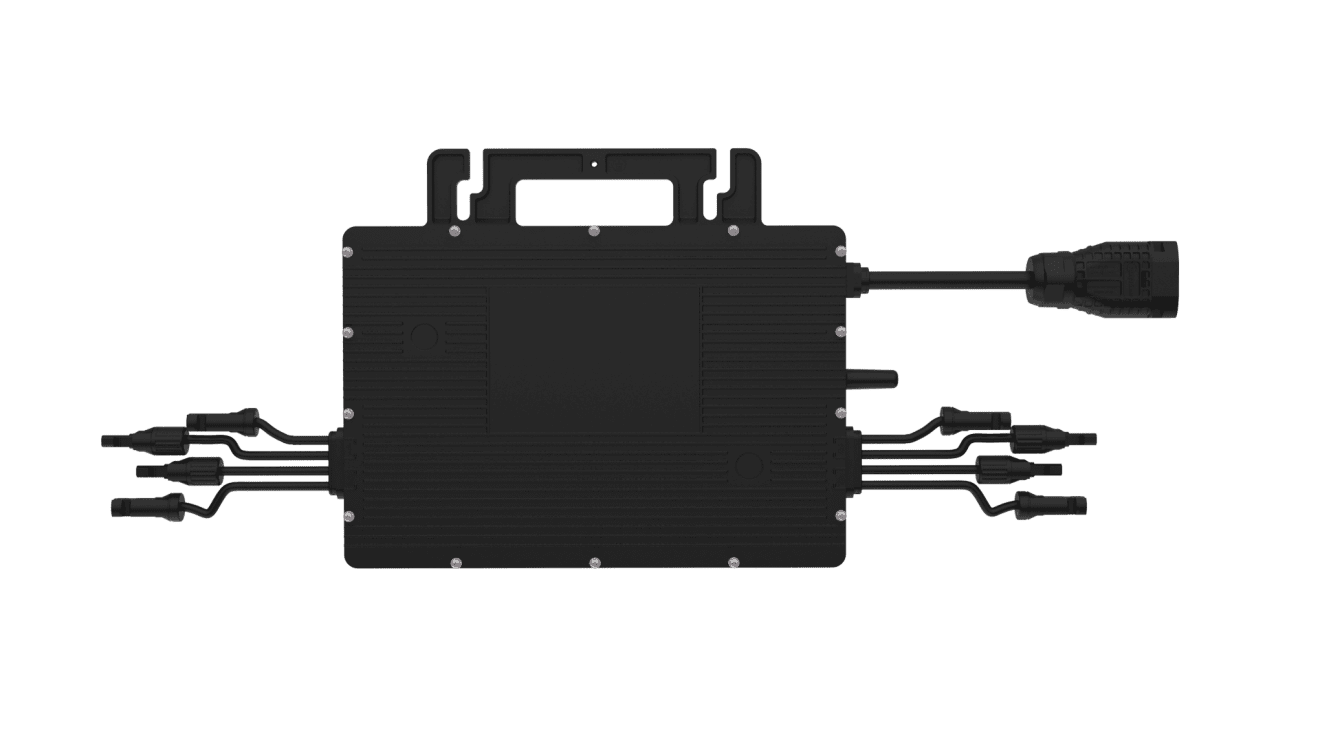

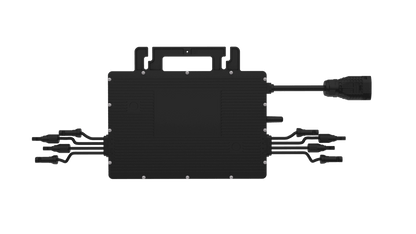

Hoymiles HMS Microinverter 1800-4T-208

Hoymiles HMS Microinverter 1800-4T-208

Three-phase output, more suitable for commercial and industrial applications
Designed for North American grids with a threephase Delta network
4-in-1 design enables faster installation and comes with a lower cost
Safer for rooftop solar stations with rapid shutdown compliance and isolated transformer
Sub-1G wireless solution allows stable communication in commercial and industrial settings

Technical Specifications:

• Commonly used module power (W): 360 to 600+
• Maximum input voltage (V): 65
• MPPT voltage range (V): 16–60
• Minimum/Maximum start-up voltage (V): 22/60
• Maximum input current (A): 4 × 15
• Maximum input short circuit current (A): 4 × 25
• Number of MPPTs: 2
• Number of inputs per MPPT: 2
• Rated output power (VA): 1800
• Rated output current (A): 2.61 × 3
• Nominal output voltage (V): 230/400, 3W+N+PE
• Nominal frequency (Hz): 50
• Power factor (adjustable): > 0.99 default
• Total harmonic distortion: < 3%
• Maximum units per 12 AWG branch: 7
• Maximum units per 10 AWG branch1: 12
• CEC peak efficienc: 96.50%
• Nominal MPPT efficiency 99.80%
• Dimensions (W × H × D [mm]): 326 × 222 × 40.6
• Weight: 5.9 kg
• Enclosure rating: Outdoor-IP67
