Hoymiles HMS Microinverter 350-1T

Hoymiles HMS Microinverter 350-1T

High-powered microinverter for 1-in-1 series with superior performance
Safer for rooftop solar stations with PV rapid shutdown compliance
With Reactive Power Control, compliant with UL 1741, IEEE 1547, UL 1741 SB, etc.
1-in-1 design enables most flexible applications

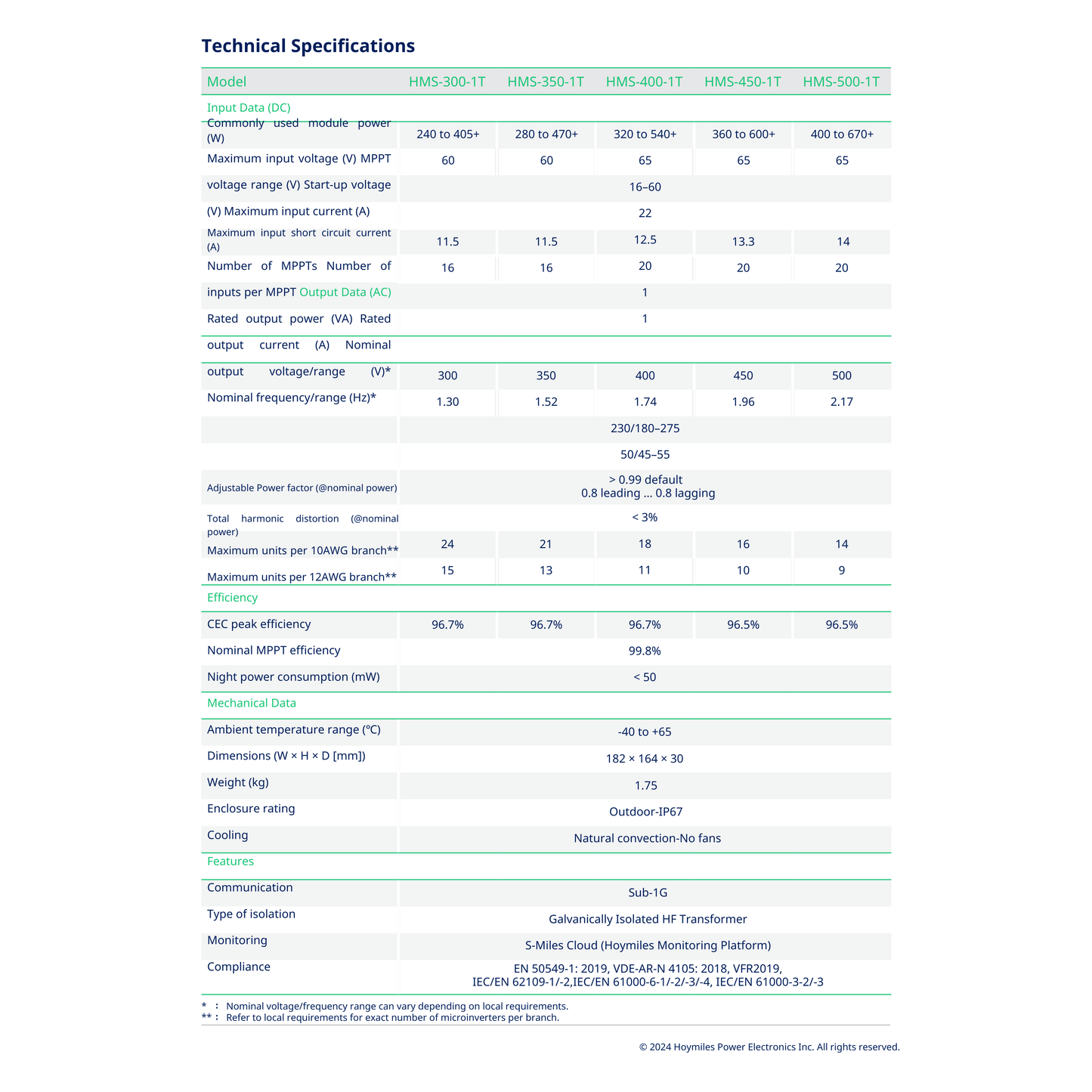

Technical Specifications:

• Commonly used module power (W): 280 to 470+
• Maximum input voltage (V): 60
• MPPT voltage range (V): 16–60
• Start-up voltage (V): 22
• Maximum input current (A): 13
• Maximum input short circuit current (A): 20
• Number of MPPTs: 1
• Number of inputs per MPPT: 1
• Peak output power (VA): 350
• Maximum continuous output power (VA): 319
• Nominal frequency/range (Hz)1: 60/55–65
• Total harmonic distortion: < 3%
• CEC peak efficiency: 96.70%
• Nominal MPPT efficiency: 99.80%
• Night power consumption (mW): < 50
• Ambient temperature range (℃): -40 to +65
• Dimensions (W × H × D [mm]): 182 × 164 × 30
• Weight (kg): 1.75
• Enclosure rating: Outdoor-IP67 (NEMA6)
