Details

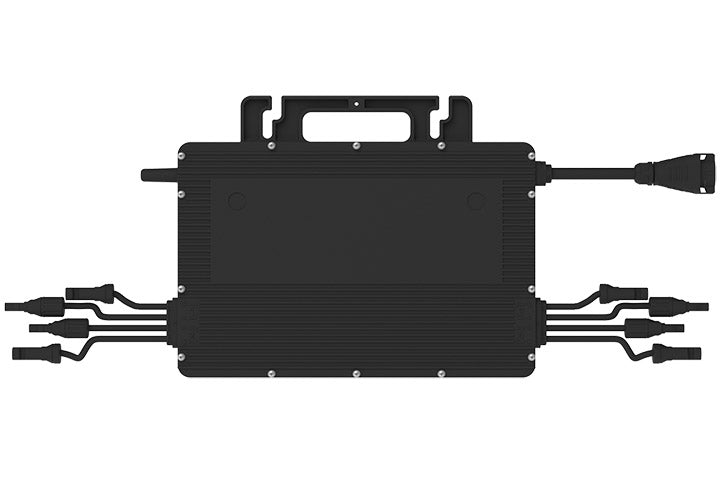

With the output power up to 2000 VA, Hoymiles new microinverter HMS-2000 series rank among the highest for 4-in-1 microinverters.
Watts: 1600W
Each microinverter can connect up to 4 panels, with independent MPPT and monitoring maximizing the power production of your installation.
The new Sub-1G wireless solution enables more stable communication with Hoymiles gateway DTU.- Dimensions: 331 × 218 × 36.6mm
- Rated output power: 1600VA
- Commonly used module power: 320W to 540W+
- Max. input current: 12.5A
- Max. input short circuit current (A): 4 × 20A
- Max. input voltage: 65V
- Number of modules connected: 4
- MPPT voltage range: 16V–60V
- Number of MPPTs: 4
-
Features
- High-powered microinverter with output power up to 2000 VA
- Independent MPPT and monitoring ensure greater energy harvest and easier maintenance
- With Reactive Power Control, compliant with EN 50549-1:2019, VDE-AR-N 4105:2018, VFR2019, etc.
- 4-in-1 design enables faster installation and comes with a lower cost
- Safer for rooftop solar stations with rapid shutdown compliance and isolated transformer
- Sub-1G wireless solution allows stable communication in commercial and industrial settings
-
Documentation
-
Warranty Information
- 12 years standard
- 25 years extendable

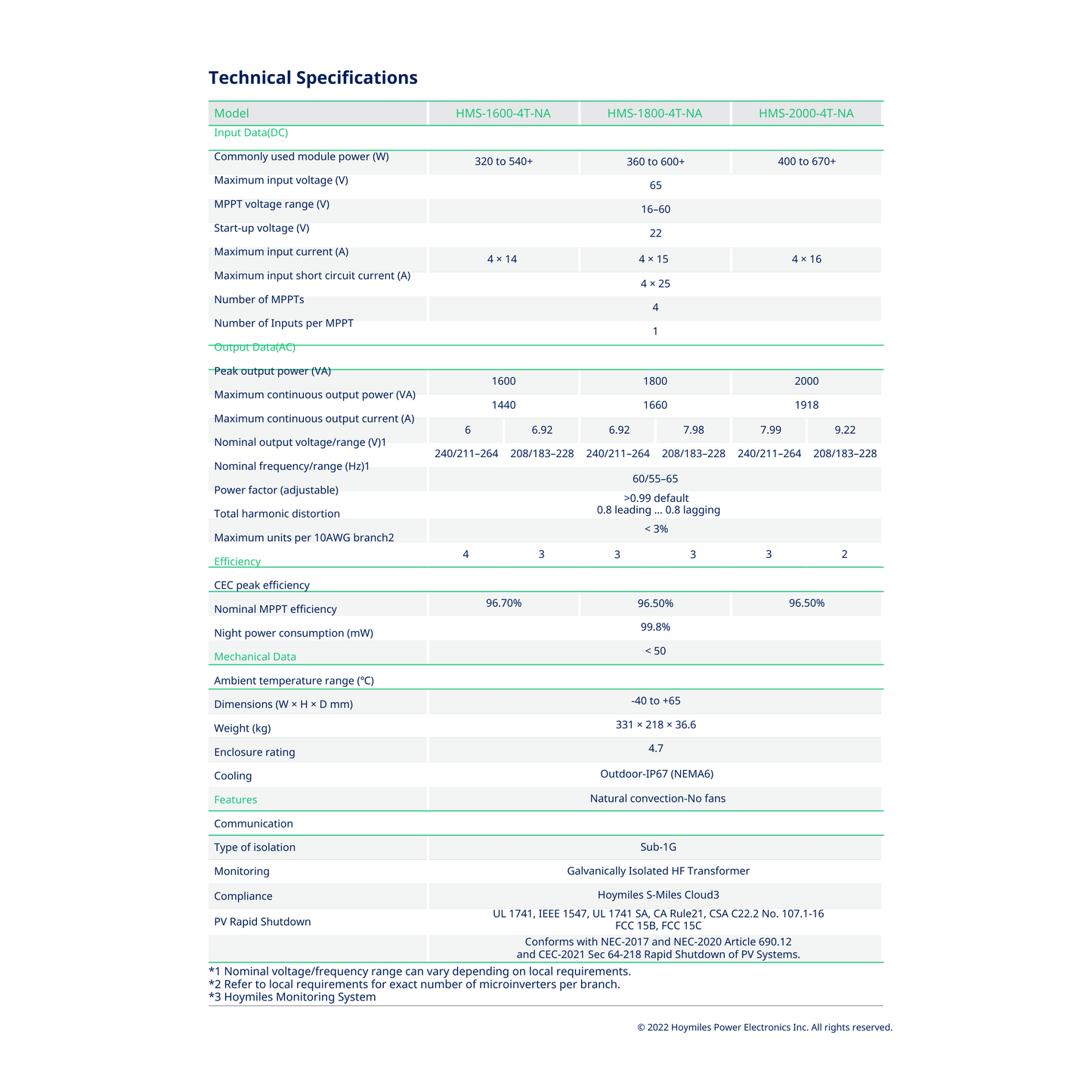

Download Spec Sheet
Designed in compliance with applicable BCI, DIN, BS and IEC standards. Tested in compliance to BCI and IEC standards.
