Description
EN-CC-HCS-D50R-C29-L25-268

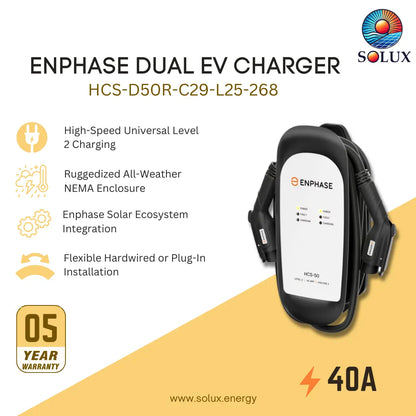

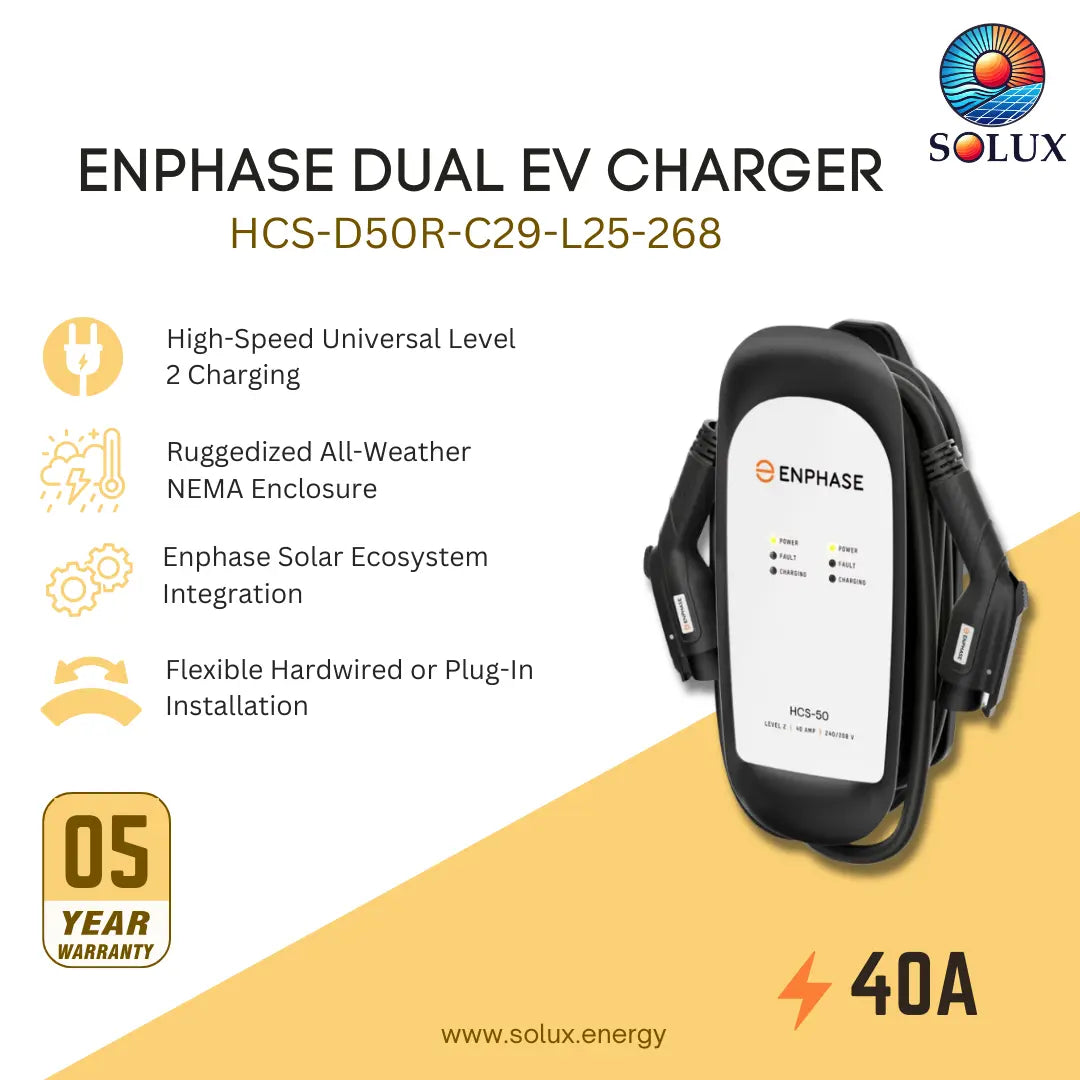

The high-powered, robust HCS-D50 dual EV supply equipment (EVSE) provides two J1772 output cables from the enclosure, enabling reliable and safe Level 2 charging for two EVs at once.
The 25-foot charging cable allows for flexible installation and ease-of-use and can be neatly stowed away using the integrated cable wrap and wall-mounted J1772 holster.
The tough NEMA 4 rated enclosure ensures you can install this unit indoors or outdoors with confidence. Ruggedized charging cables also help the charger to resist everyday wear-and-tearTechnical Specifications
- Manufacturer Part Number: HCS-D50R-C29-L25-268
- Manufacturer Warranty: 5 Years
- Shipping Weight: 29 lb
- Shipping Dimensions: 23 x 20 x 10 in
- Pallet Qty: 24
- Input voltage/Input voltage range: 208/240 VAC (L-L), single-phase/185 VAC – 264 VAC
- Input voltage frequency: 50/60 Hz
- Circuit breaker requirement: Dedicated, 2-pole 50 A
- Maximum output current/Output power: 40 A continuous (or 2 × 20 A continuous) 1/9.6 kW
- Output cable/Cable length: Pre-wired with: Two SAE J1772/25' (7.6 m)
-
