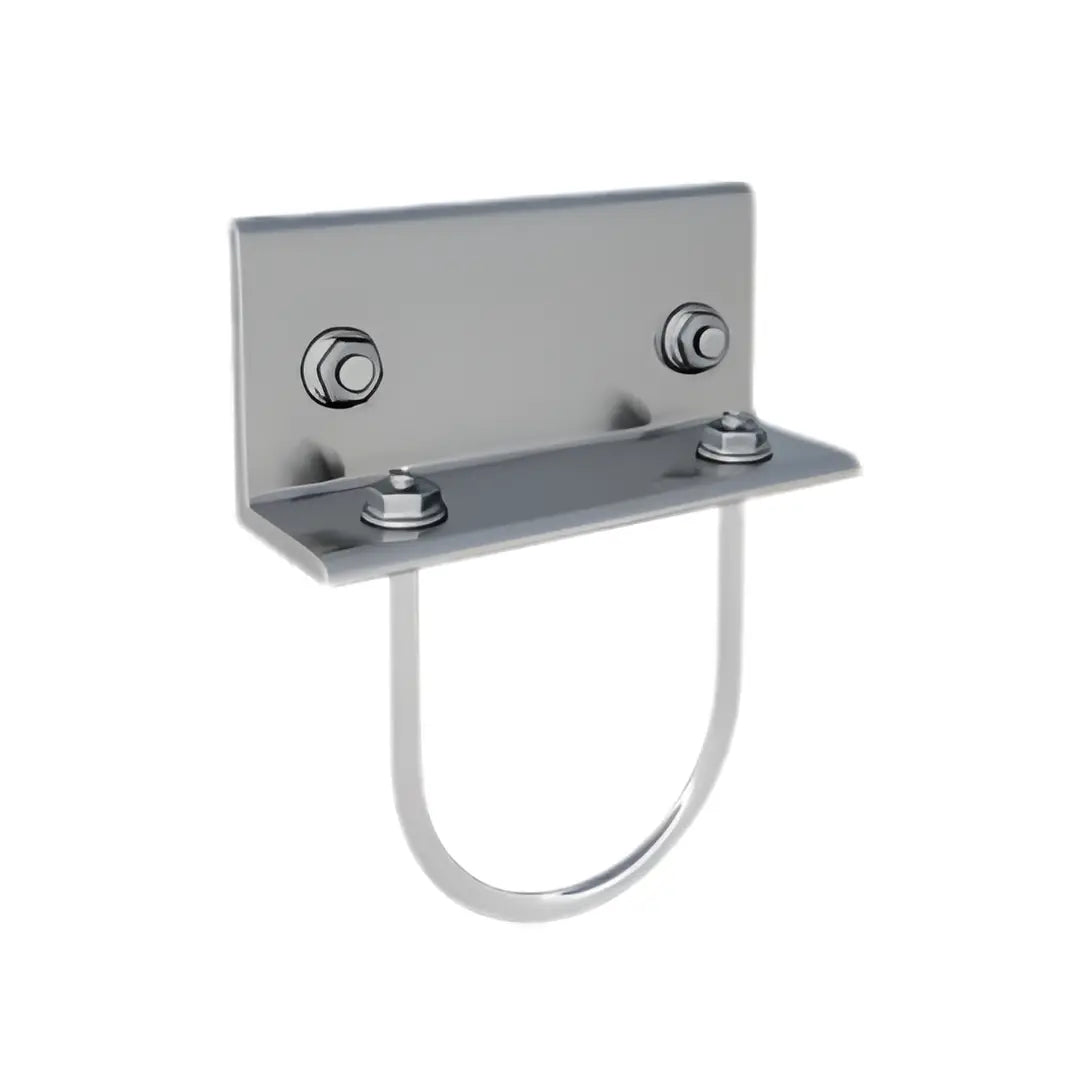

IronRidge Ground Mount Bonded Rail Connector - 2"

IronRidge 2" Ground Mount Bonded Rail Connector, GM-BRC-002

Bonded Rail Connectors

Our Bonded Rail connectors attaches and bonds horizontal cross pipes to XR1000 Rails. Each rail requires two connectors to create a secure and bonded attachment. Available for both 2" and 3" sizes, these Rail connectors are manufactured using extruded 6000 series aluminum.

GM-BRC-002: Ground Mount Bonded Rail connector - 2

• Model/Type: GM-BRC-002
• Finish: Mill

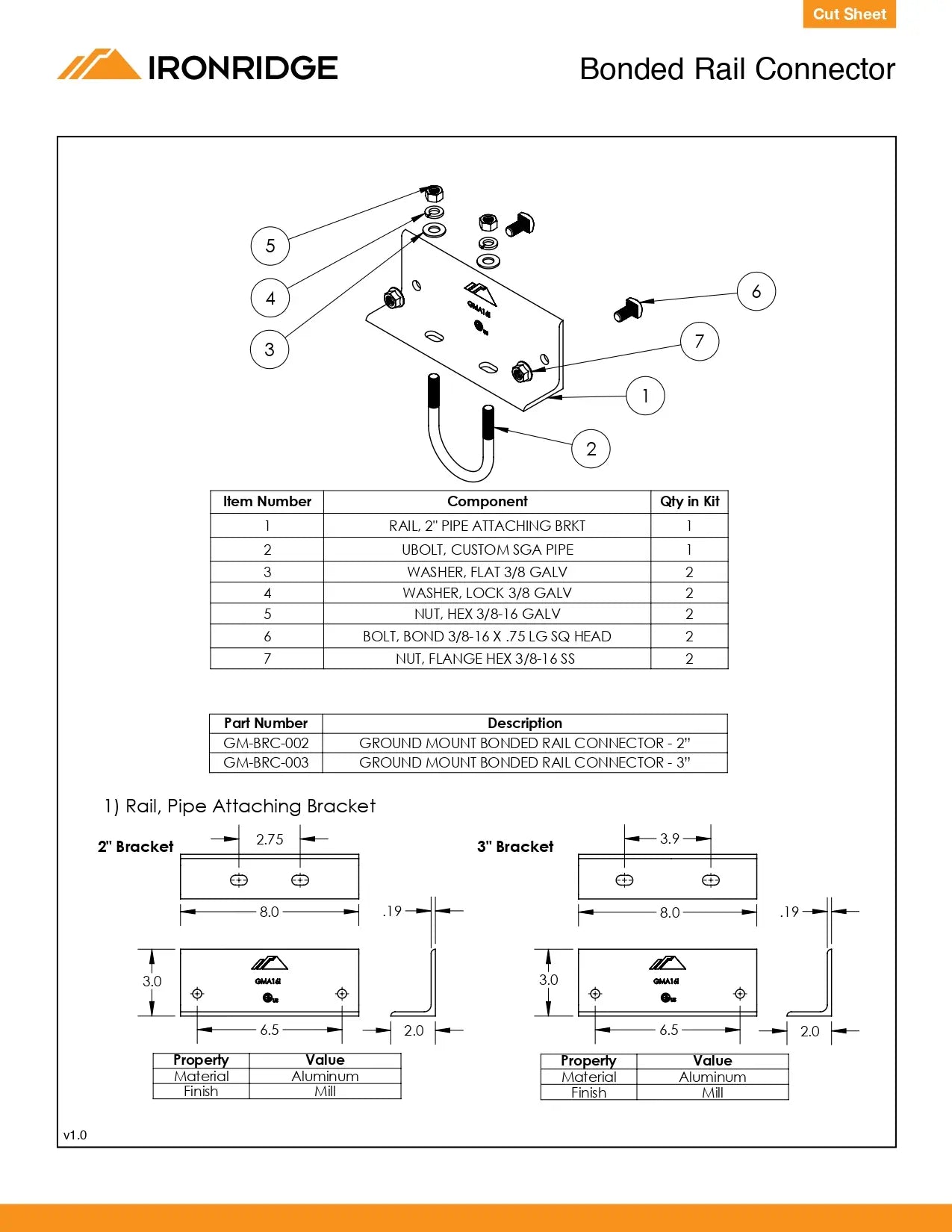

• Included Hardware: 1 × Rail, 2″ Pipe Attaching Bracket + 1 × U-Bolt, Custom SGA Pipe + 2 × Flat Washers (3/8″, Galvanized) + 2 × Lock Washers (3/8″, Galvanized) + 2 × Hex Nuts (3/8-16, Galvanized) + 2 × Bond Bolts (3/8-16 × 0.75″ + 2 × Hex Flange Nuts (3/8-16, Stainless Steel)
• Durable & Certified: The main body of the connector is made from extruded aluminum alloy, which provides a strong, lightweight structural component that resists corrosion in outdoor environments
• Water Protection & Fit: The included fasteners (e.g., U‑bolt, washers, nuts) typically use galvanized or stainless steel where needed, helping resist rust and maintain mechanical integrity over time
