Generac G0080041 3.0 kWh DCB PWRcell Battery Module

Generac 3.0 kWh DCB PWRcell Battery Module

The Generac G0080041 3.0 kWh DCB PWRcell Battery Module is a high-density, modular lithium-ion energy storage building block engineered for residential solar backup systems. Designed to integrate directly into the Generac PWRcell 2 system, each module captures surplus DC power generated by your PV array to supply critical household loads during peak utility rates or grid outages.

Modules are installed in series inside a dedicated PWRcell 2 battery cabinet, allowing homeowners and DIY installers to easily scale total system capacity. The cabinet architecture requires a minimum configuration of 3 modules (9.0 kWh usable capacity) to establish the system bus voltage and can expand up to 6 modules (18.0 kWh usable capacity) per enclosure.

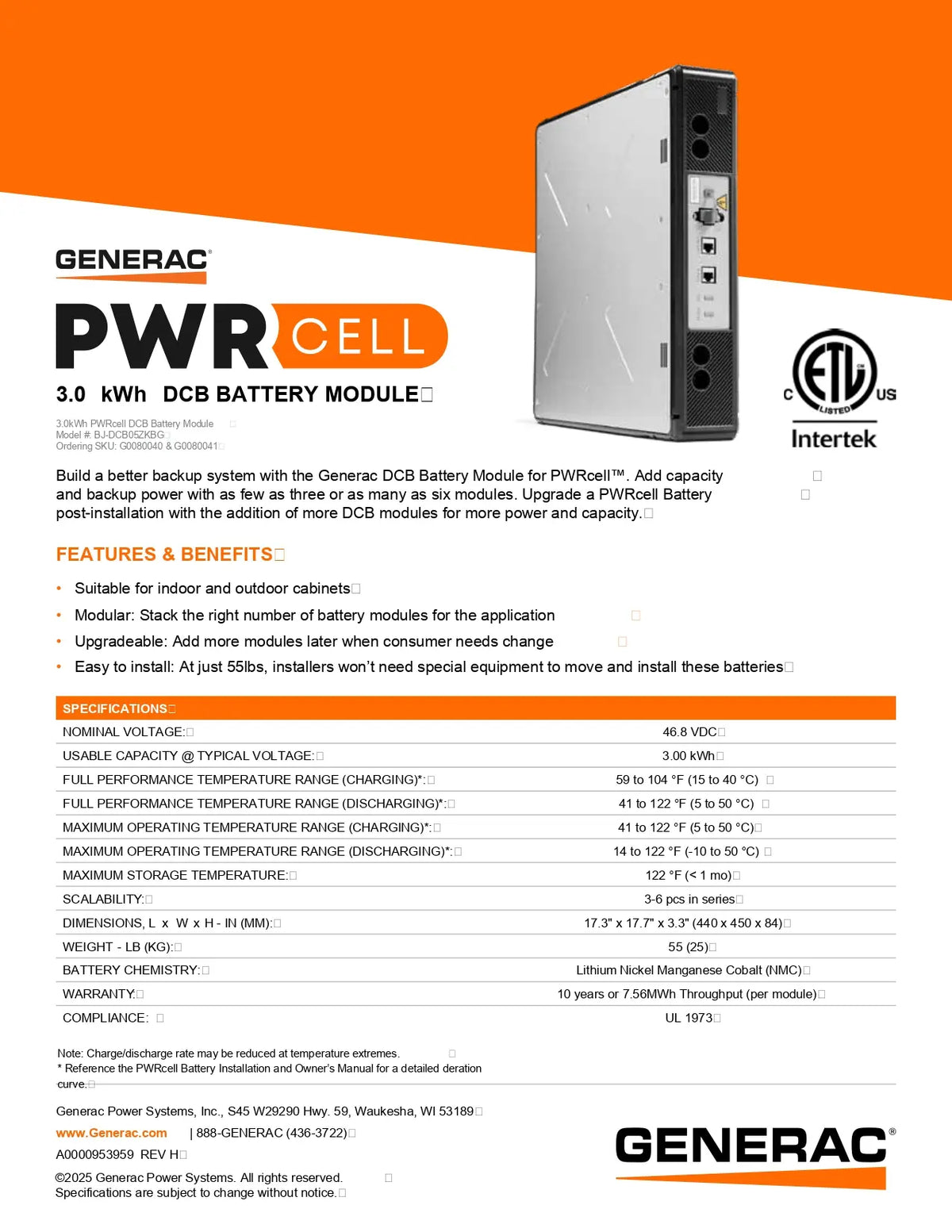

Technical Specifications:

• NOMINAL VOLTAGE: 46.8 VDC
• USABLE CAPACITY @ TYPICAL VOLTAGE: 3.00 kWh

• FULL PERFORMANCE TEMPERATURE RANGE (CHARGING)*: 59 to 104 °F (15 to 40 °C)
• FULL PERFORMANCE TEMPERATURE RANGE (DISCHARGING)*: 41 to 122 °F (5 to 50 °C)
• MAXIMUM OPERATING TEMPERATURE RANGE (CHARGING)*: 41 to 122 °F (5 to 50 °C)
• MAXIMUM OPERATING TEMPERATURE RANGE (DISCHARGING)*: 14 to 122 °F (-10 to 50 °C)
• MAXIMUM STORAGE TEMPERATURE: 122 °F (< 1 mo)

• SCALABILITY: 3-6 pcs in series
• WEIGHT - LB (KG):55 (25)
• DIMENSIONS, L x W x H - IN (MM): 17.3" x 17.7" x 3.3" (440 x 450 x 84)
• BATTERY CHEMISTRY: Lithium Nickel Manganese Cobalt (NMC)
• WARRANTY: 10 years or 7.56MWh Throughput (per module)
• COMPLIANCE: UL 1973
