Generac G0073640 Ecobee Smart Thermostat (included w/ purchase of PWRcell 2 system)

Generac Ecobee Smart Thermostat Enhanced

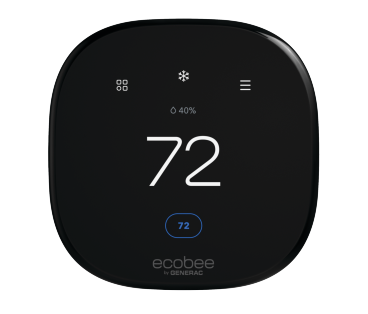

The Generac G0073640 Ecobee Smart Thermostat Enhanced is an advanced 24 VAC energy management thermostat engineered for seamless integration with Generac PWRcell 2 solar storage and generator systems. Featuring a 4 inch full-color touchscreen display (540 × 540 resolution) and an integrated occupancy sensor, this thermostat delivers precise climate control while optimizing household energy consumption.

Designed to communicate natively with both the Ecobee app and Generac Mobile Link, the unit provides real-time system diagnostics including PWRcell 2 dashboards, standby generator status, and propane tank levels. The device supports multi-stage conventional and heat pump HVAC configurations, connects across major smart home platforms, and includes a 5-year limited factory warranty when bundled with PWRcell 2 system installations.

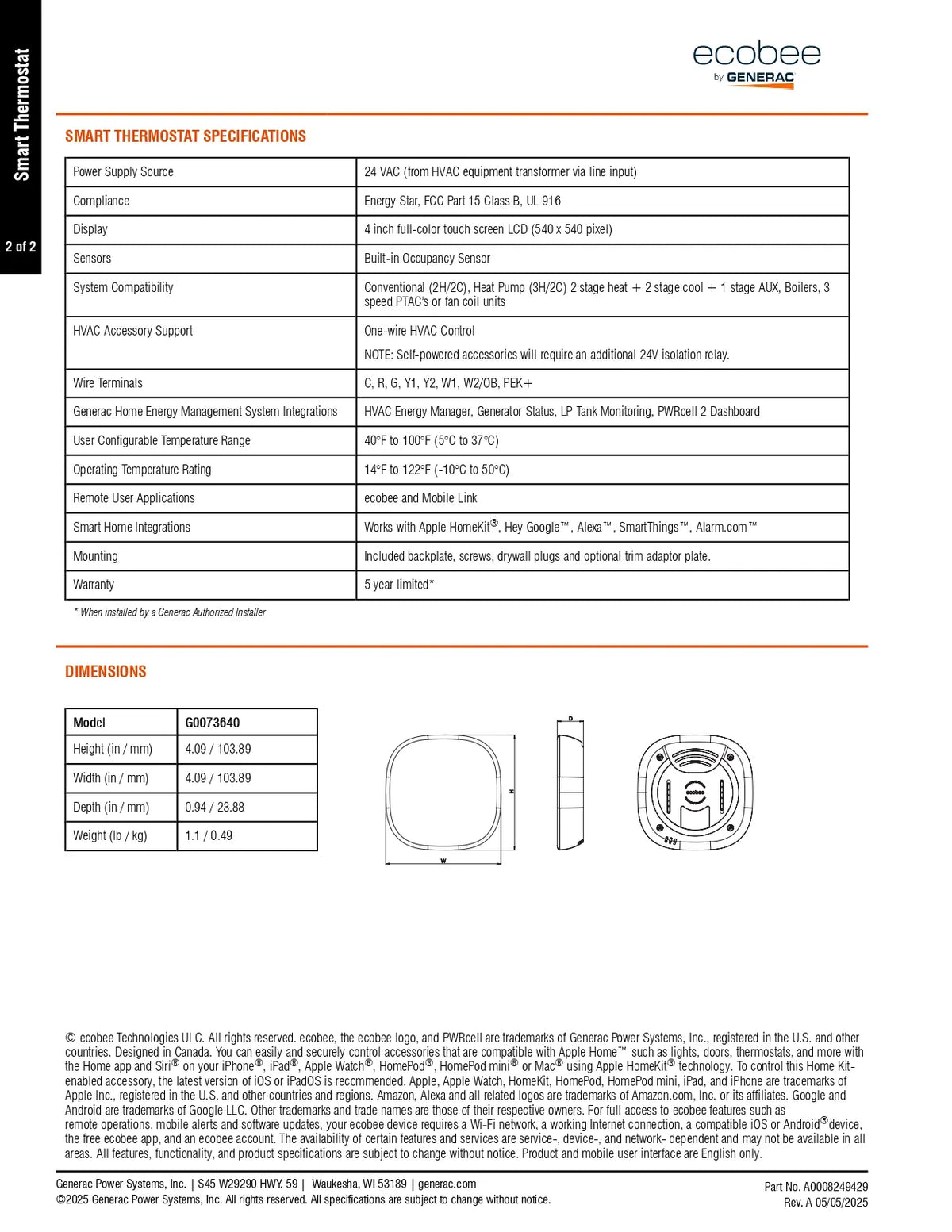

Technical Specifications:

• Manufacturer: Generac Power Systems

• Manufacturer Part #: G0073640
• Power Supply: 24 VAC
• Display: 4-inch full-color touchscreen LCD
• Display Resolution: 540 × 540 pixels
• Built-in Sensor: Occupancy sensor
• System Compatibility: Conventional 2H/2C; heat pump 3H/2C with 2-stage heat + 2-stage cool + 1-stage AUX; boilers; 3-speed PTACs; fan-coil units
• HVAC Accessory Support: One-wire HVAC control
• Wire Terminals: C, R, G, Y1, Y2, W1, W2/OB, PEK+
• Temperature Setting Range: 40°F–100°F (5°C–37°C)
• Operating Temperature: 14°F–122°F (-10°C–50°C)
• Connectivity / Apps: Ecobee app and Generac Mobile Link
• Generac Integrations: HVAC Energy Manager, Generator Status, LP Tank Monitoring, PWRcell 2 Dashboard
• Smart Home Compatibility: Apple HomeKit, Google Assistant, Amazon Alexa, SmartThings, Alarm.com
• Compliance: ENERGY STAR, FCC Part 15 Class B, UL 916
• WEIGHT LB (KG): 1.1 (0.49)
• DIMENSIONS, L x W x H - IN (MM): 0.94 (23.88) x 4.09 (103.89) x 4.09 (103.89)
• Warranty: 5-Year limited Warranty
