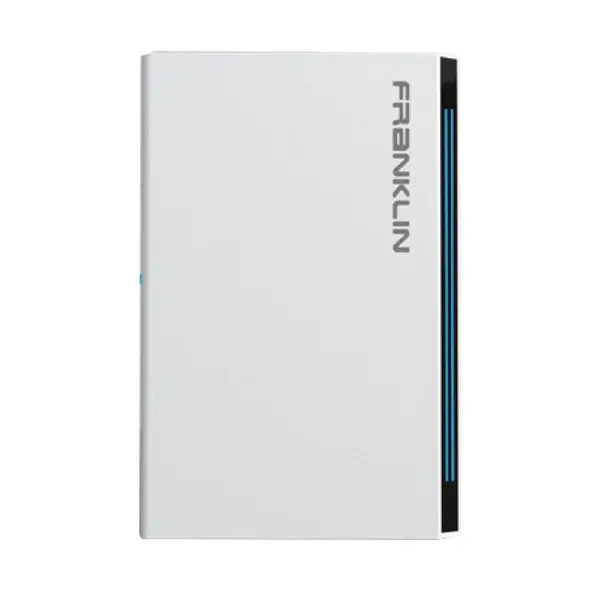

FranklinWH aGate X AGT-R1V2-US Energy Management Device

FranklinWH aGate X AGT-R1V2-US Energy Management Device

The aGate serves as the controller for all home power sources by interconnecting solar, grid, batteries, and a standby generator to supply electricity to the home. It seamlessly transitions the home supply from grid power to backup power so that always-on appliances, such as the refrigerator and network router, will not be affected when the grid goes down.

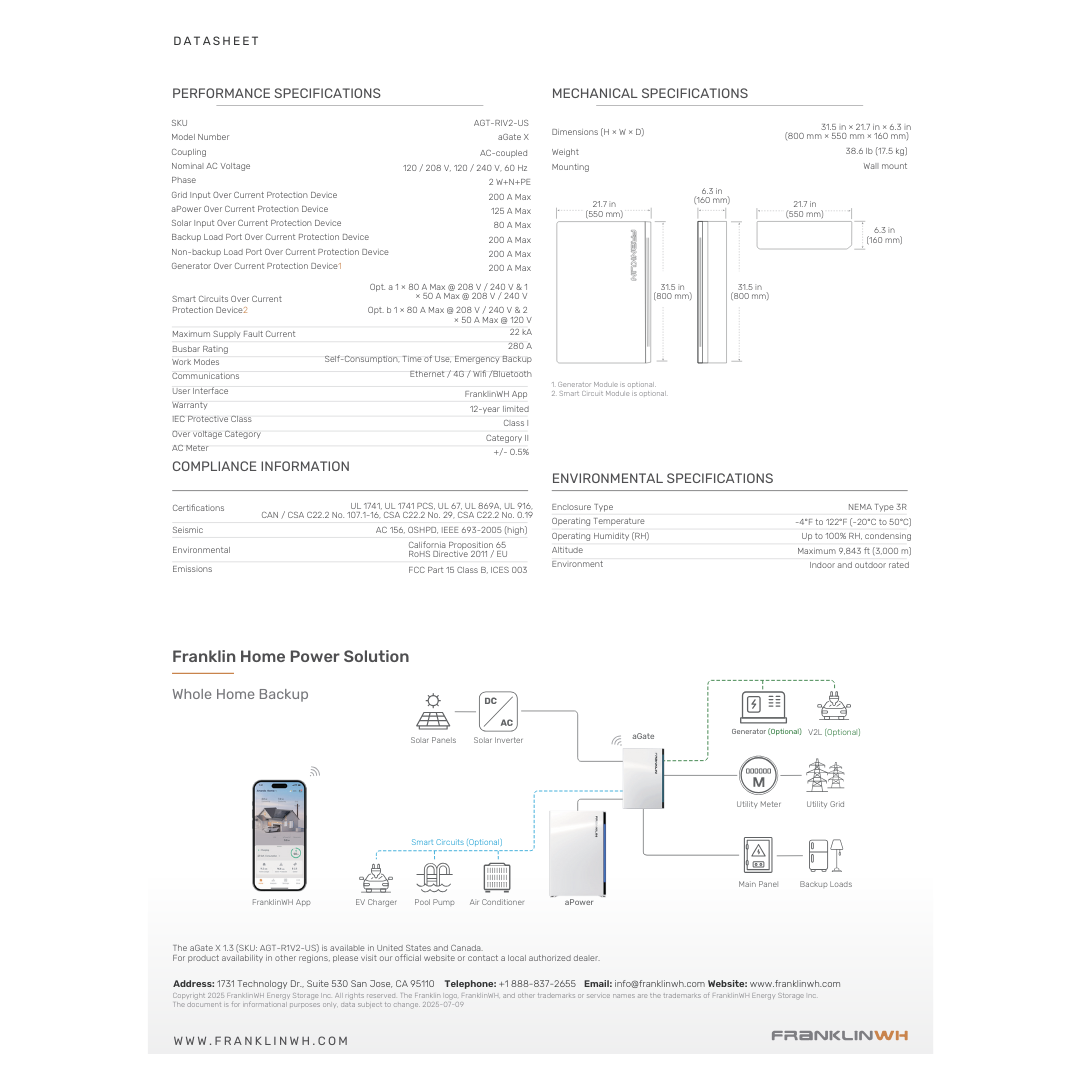

Technical Specifications:

• Coupling: AC-coupled
• Nominal AC Voltage: 120 / 208 V, 120 / 240 V, 60 Hz
• Phase: 2 W+N+PE
• Grid Input Over Current Protection Device: 200 A Max
• aPower Over Current Protection Device: 125 A Max
• Solar Input Over Current Protection Device: 80 A Max
• Backup Load Port Over Current Protection Device: 200 A Max
• Non-backup Load Port Over Current Protection Device: 200 A Max
• Generator Over Current Protection Device1: 200 A Max
• Maximum Supply Fault Current: 22 kA
• Busbar Rating: 280 A
• Work Modes: Self-Consumption, Time of Use, Emergency Backup
• Communications: Ethernet / 4G / Wifi /Bluetooth
• User Interface: FranklinWH App
• Warranty: 12-year limited
• IEC Protective Class: Class I
• Over voltage Category: Category II
• AC Meter: +/- 0.5%
• Dimensions (H × W × D): 31.5 in × 21.7 in × 6.3 in
• Weight: 38.6 lb (17.5 kg)
• Mounting: Wall mount
