Description

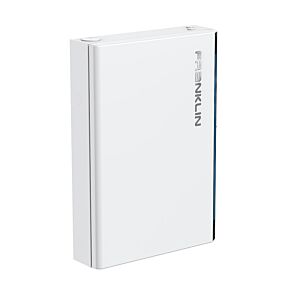

FranklinWH aGate X AGT-R1V1-US Energy Management Device
The Franklin Home Power (FHP) system is an advanced energy control system that integrates the grid, solar generation, batteries, and generators. It is managed via a simple mobile app and provides real-time monitoring and control for a home’s day-to-day energy usage. The FHP system is designed to supply energy from multiple power sources during grid outages, ensuring that your home stays powered up even when the grid is down.
Technical Specifications:
- Battery Chemistry: Lithium Iron Phosphate (LFP)
- Usable System Energy : 13.6 kWh per unit, scalable up to 15 units4
- Warranted Energy Throughput (12yrs): 43 MWh
- Inverter Topology: Isolated
- Nominal AC Voltage: 120V / 240V, 60 Hz
- Maximum Continuous / Peak Discharge Power (10 s): 5 kW / 10 kW
- Round Trip Efficiency: 89%5
- Noise Emission (optimal): ＜30 dB (A)
- Noise Emission (optimal): ＜30 dB (A)
- User Interface: FranklinWH app
- Warranty: 12 years
-
Downloads

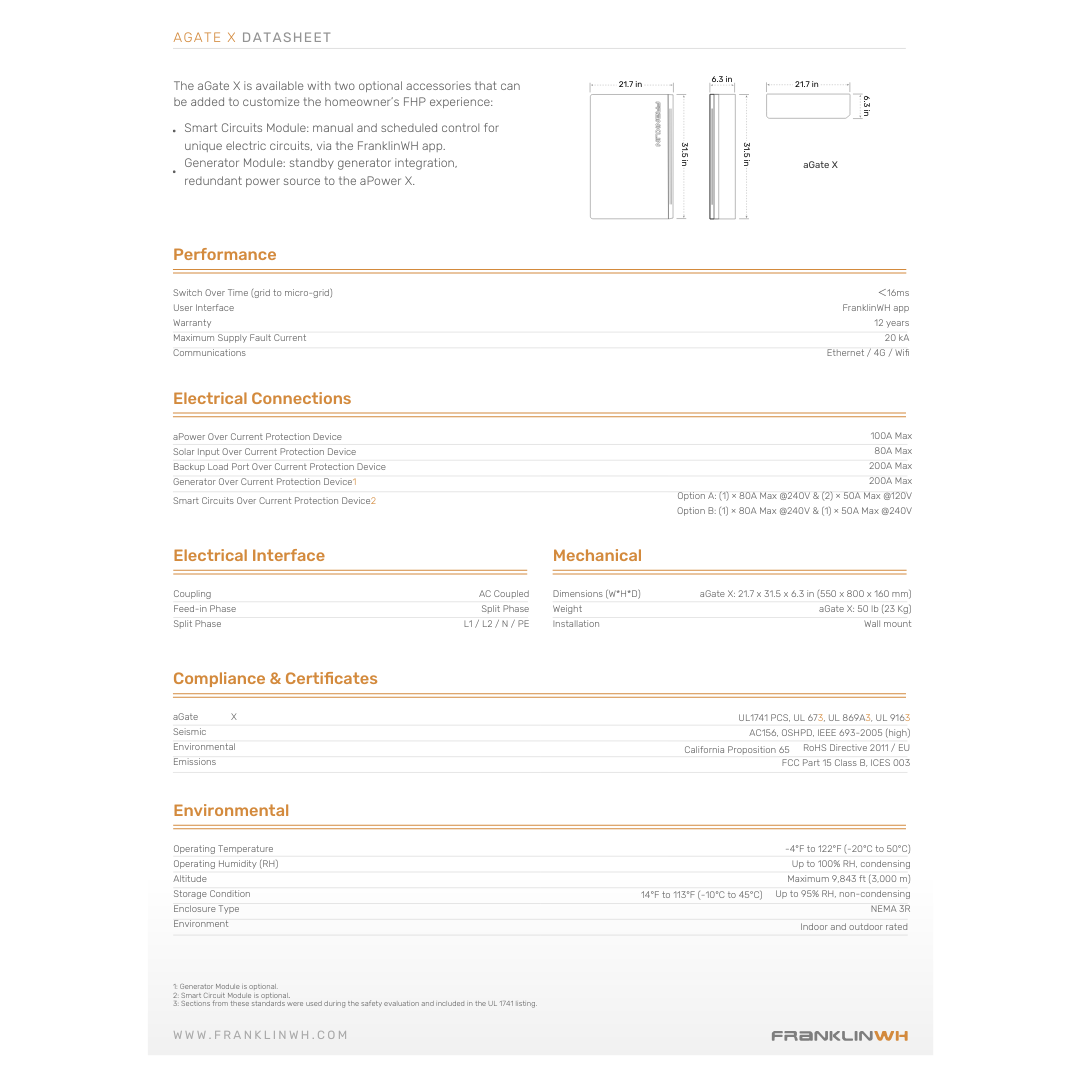

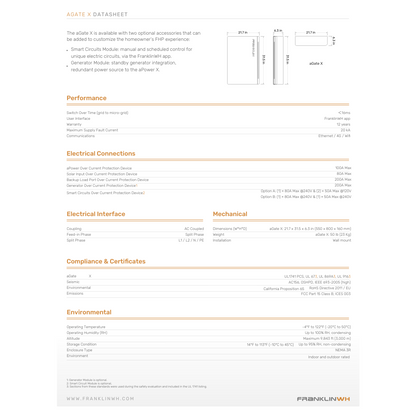

Download Spec Sheet
Designed in compliance with applicable BCI, DIN, BS and IEC standards. Tested in compliance to BCI and IEC standards.
