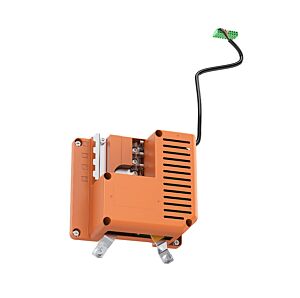

FranklinWH FWH-ACCY-SCV1-US Smart Circuits Module

FranklinWH FWH-ACCY-SCV1-US Smart Circuits Module

The FranklinWH Smart Circuits Module is an optional component of the FranklinWH App that allows you to manage and control unique electric loads remotely and automatically from anywhere and anytime. It is designed to provide flexible management and control over high-power loads connected through the Smart Circuits. The module can be used with or without solar, making your power supply redundant, robust, and resilient.

Features:

• Easy Control: Remotely and automatically manage unique family loads, connecting and disconnecting them easily via the FranklinWH app.
• Smart Use: Set the appropriate working time for family appliances, add convenience to your daily life.
• Cost Saving: Work within TOU rate structures to power large loads at a low electricity price.

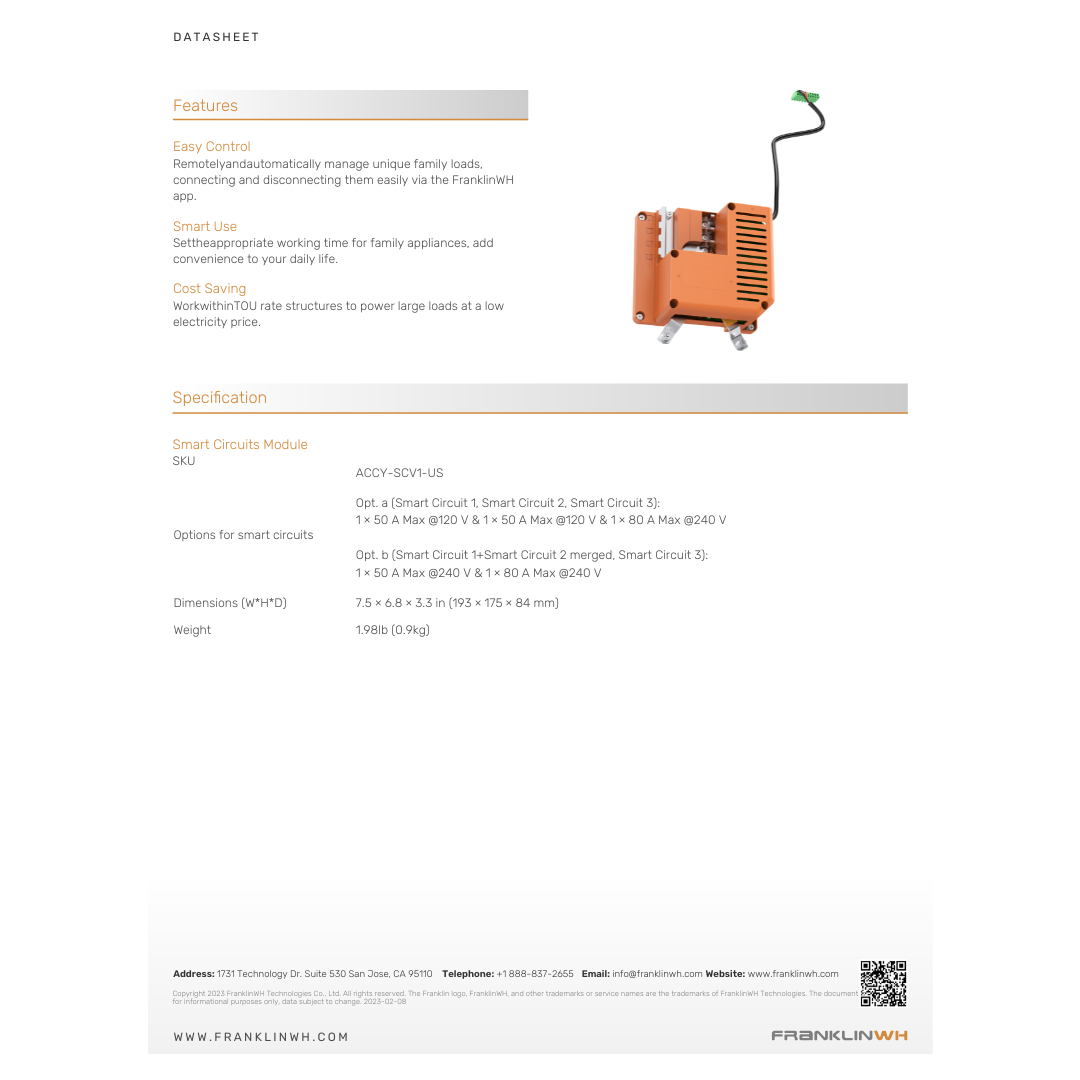

Technical Specifications:

• SKU: ACCY-SCV1-US
• Options for smart circuits: Opt. a (Smart Circuit 1, Smart Circuit 2, Smart Circuit 3): 1 × 50 A Max @120 V & 1 × 50 A Max @120 V & 1 × 80 A Max @240 V / Opt. b (Smart Circuit 1+Smart Circuit 2 merged, Smart Circuit 3): 1 × 50 A Max @240 V & 1 × 80 A Max @240 V
• Dimensions (W*H*D): 7.5 × 6.8 × 3.3 in (193 × 175 × 84 mm)
• Weight: 1.98lb (0.9kg)
