FranklinWH FWH-ACCY-LiDollyV1 Lifting Dolly

FranklinWH Battery Lifting Dolly (ACCY-LiDollyV1)

Make Heavy Battery Installs Easy

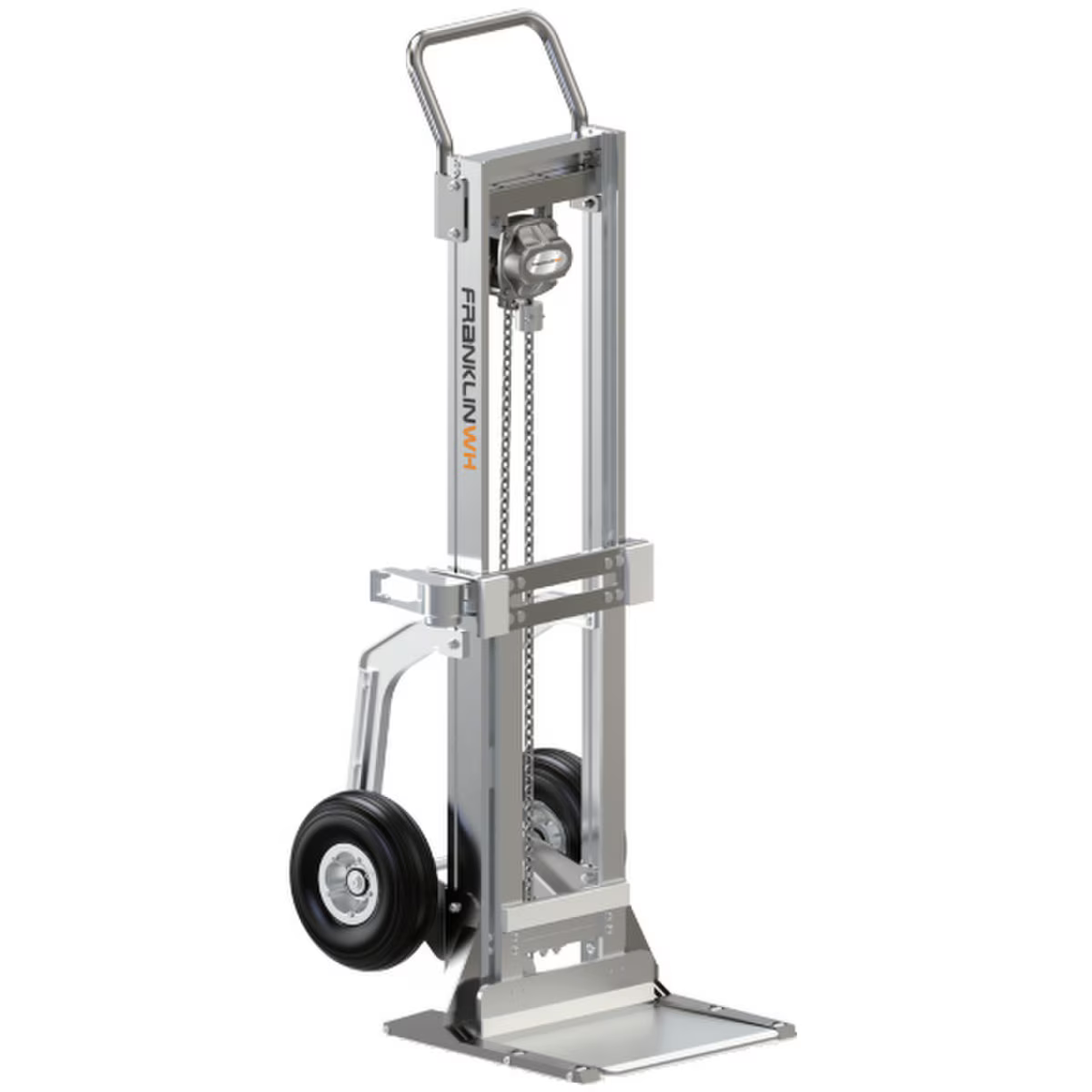

The FranklinWH Battery Lifting Dolly (ACCY-LiDollyV1) is an essential job-site tool designed for solar and battery storage installation crews. Engineered specifically to streamline the transport and wall-mounting of heavy aPower energy storage modules, this heavy-duty dolly utilizes a sprocket-driven lifting mechanism powered by a standard cordless power drill.

By eliminating manual lifting, the lifting dolly reduces installer strain, prevents workplace injuries, and accelerates installation times for both residential home battery installs and commercial energy projects.

• Special Orders are subject to additional policy terms such as the manufacturers lead times and Min order quantity and packaging multiples. In some cases a non-refundable deposit may also be required.

Key Performance Features:

• High Lift Capacity: It safely carries up to 551.2 lbs (250 kg), so you can handle big battery projects without the struggle.
• Precision Height Control: Lift units up to 33.5 inches (850 mm) high to line them up perfectly with wall mounts.
• Drill-Powered Mechanism: No more tiring manual pumping. Just connect your power drill to the gear system and let it do the lifting.
• Enhanced Maneuverability: Features large pneumatic tires for stability on various job site terrains, with compatibility for solid tires if preferred.
• 45° Standing Support: The dolly is designed to lean back at a steady 45-degree angle while loaded, helping you steer and line up the battery easily.
• Pro Tip for Heavy Loads: If you are lifting close to the 551-lb limit, it is  highly recommend using a high-torque, professional-grade drill for the smoothest lift.

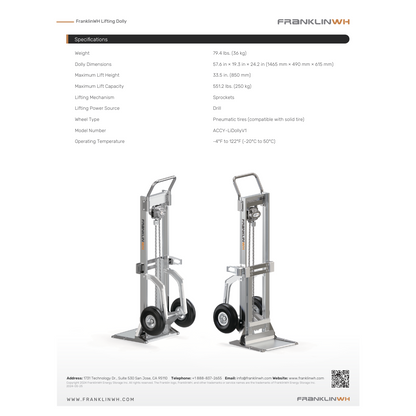

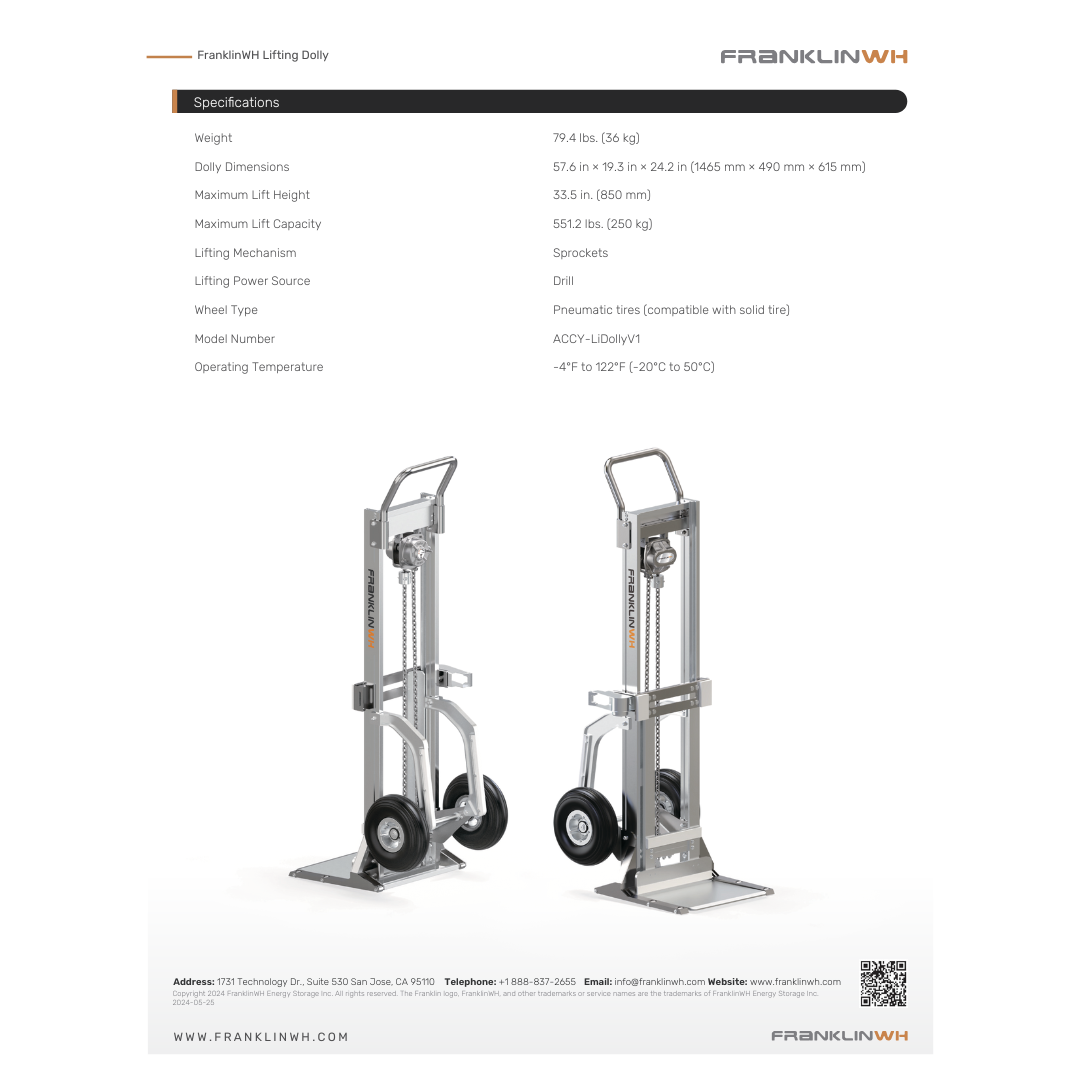

Technical Specifications:

• Weight: 79.4 lbs. (36 kg)
• Dolly Dimensions: 57.6 in × 19.3 in × 24.2 in (1465 mm × 490 mm × 615 mm)
• Maximum Lift Height: 33.5 in. (850 mm)
• Maximum Lift Capacity: 551.2 lbs. (250 kg)
• Lifting Mechanism: Sprockets
• Lifting Power Source: Drill
• Wheel Type: Pneumatic tires (compatible with solid tire)
• Model Number :ACCY-LiDollyV1
• Operating Temperature: -4°F to 122°F (-20°C to 50°C)
