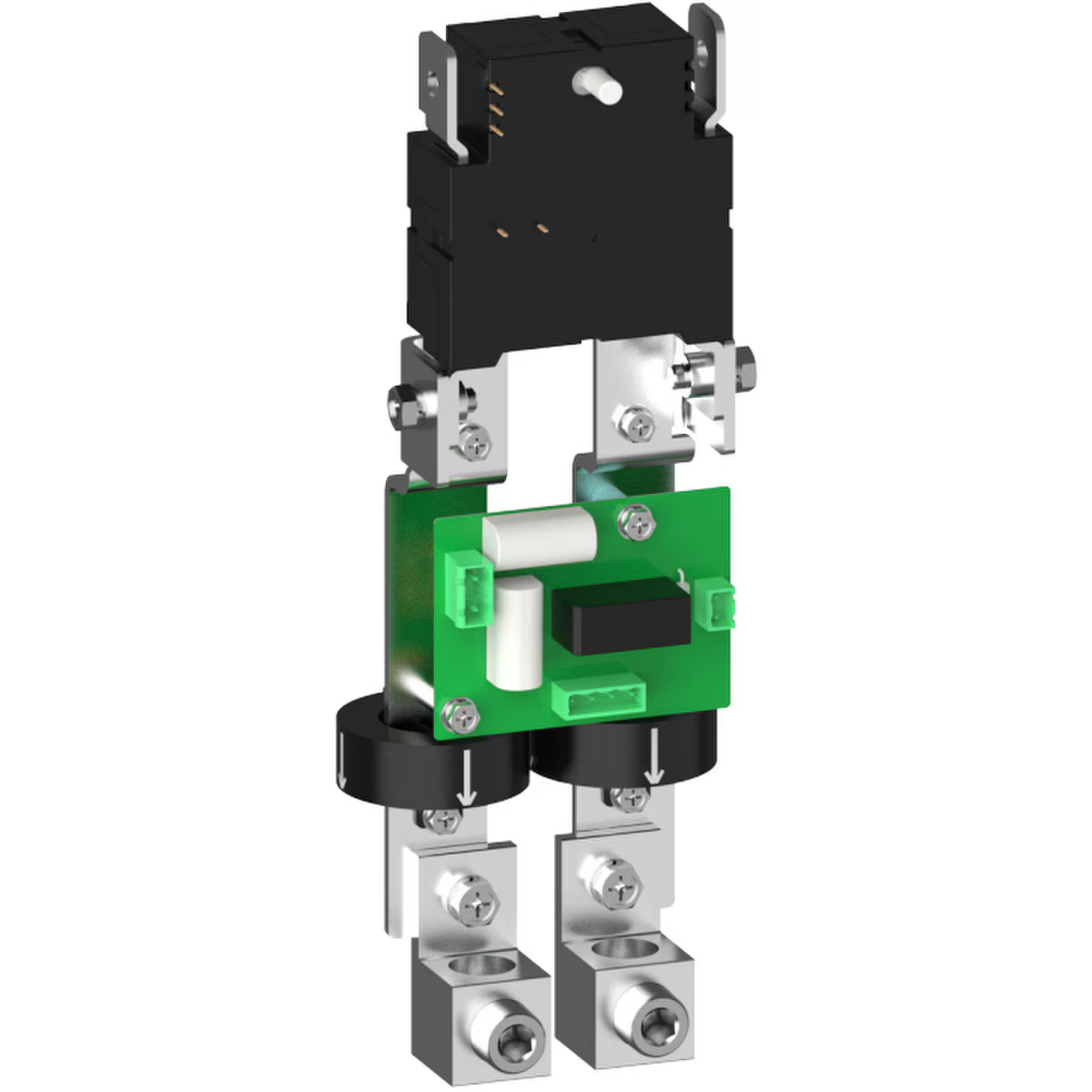

FranklinWH FWH-ACCY-GENV2-US Generator-backup Smart Controller, 200A, 120/240Vac, with CTs

FranklinWH FWH-ACCY-GENV2-US Generator-backup Smart Controller, 200A, 120/240Vac, with CTs

Safe and reliable energy relies on multiple sources of power. The FHP Generator Module adds generators to provide a complete home energy management solution

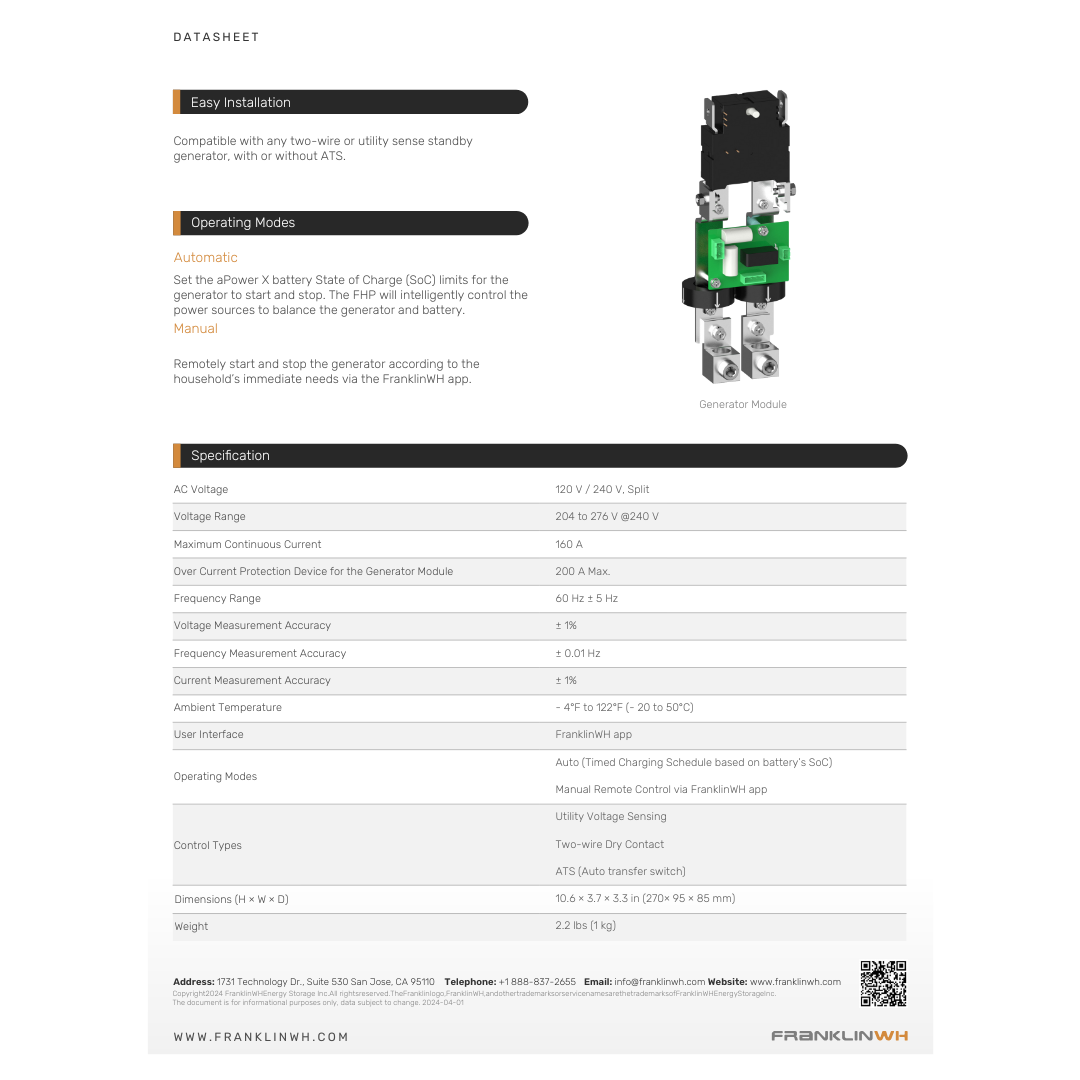

Technical Specifications:

• AC Voltage: 120 V / 240 V, Split
• Voltage Range: 204 to 276 V @240 V
• Maximum Continuous Current: 160 A
• Over Current Protection Device for the Generator Module: 200 A Max
• Frequency Range: 60 Hz ± 5 Hz
• Voltage Measurement Accuracy: ± 1%
• Frequency Measurement Accuracy: ± 0.01 Hz
• Current Measurement Accuracy: ± 1%
• Ambient Temperature: - 4°F to 122°F (- 20 to 50°C)
• User Interface: FranklinWH app
• Operating Modes: Auto (Timed Charging Schedule based on battery’s SoC) / Manual Remote Control via FranklinWH app
• Control Types: Utility Voltage Sensing / Two-wire Dry Contact / ATS (Auto transfer switch)
• Dimensions (H × W × D): 10.6 × 3.7 × 3.3 in (270× 95 × 85 mm)
• Weight: 2.2 lbs (1 kg)
