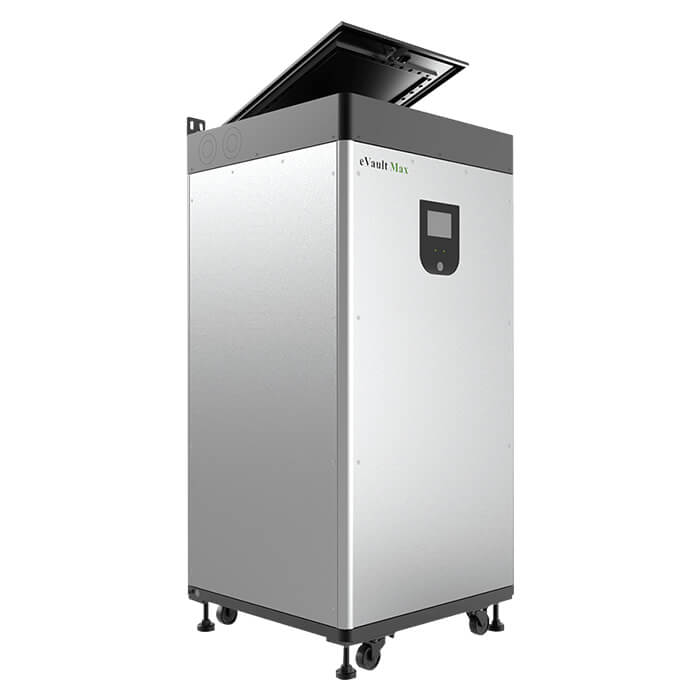

Fortress eVault Max 18.5

Fortress eVault Max 18.5

Engineered for simplicity and performance, the eVault MAX features AC and DC coupling options and a serviceable top-access design that makes installation faster and more reliable. Whether you’re powering a home, small business, or critical backup system, the eVault MAX offers the safety, capacity, and flexibility to get the job done..

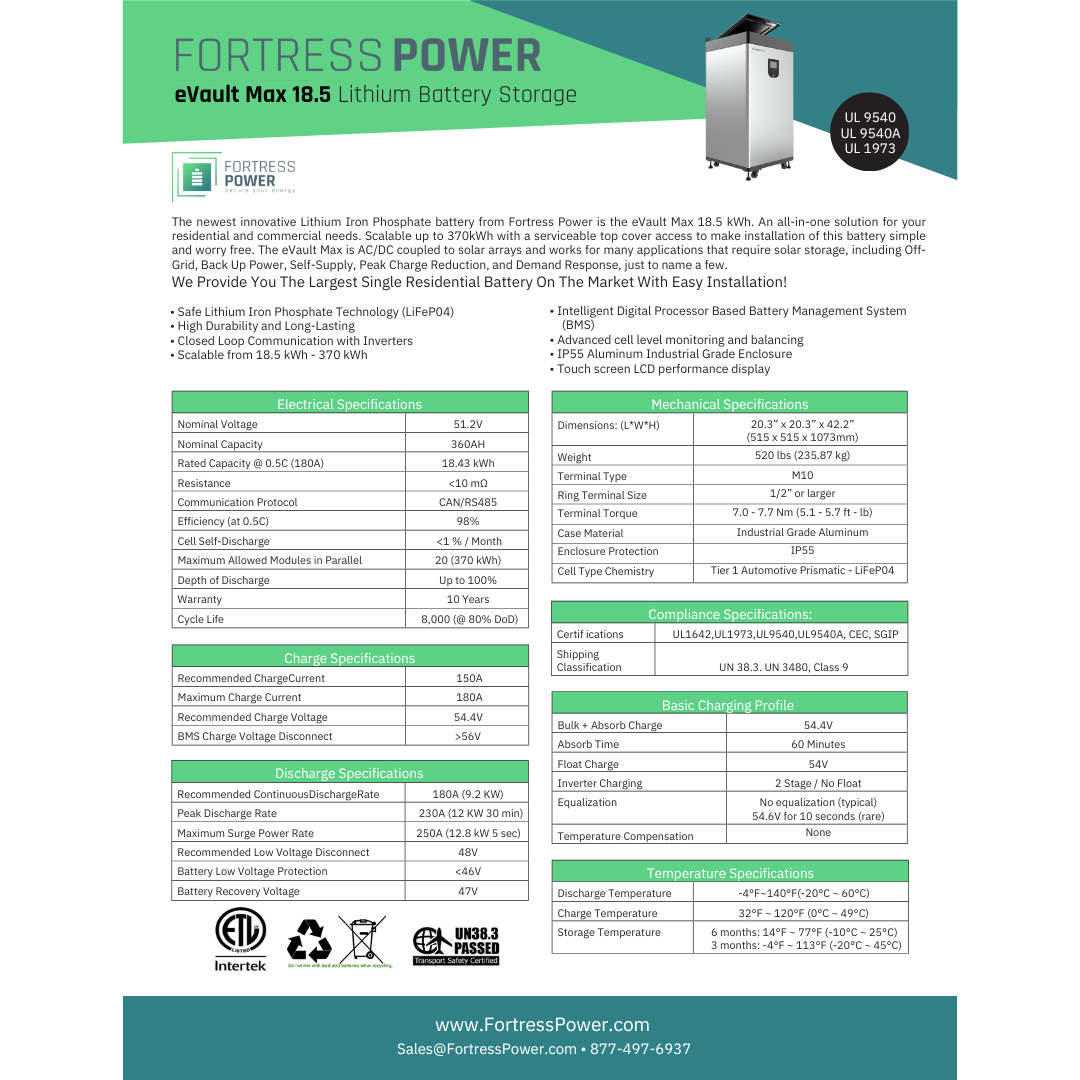

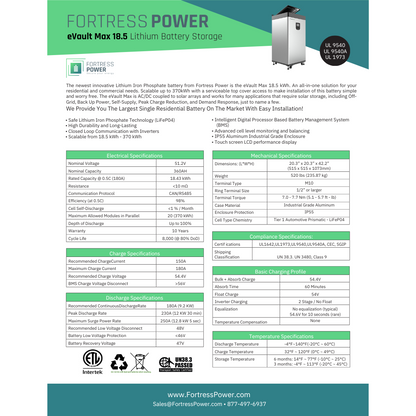

Technical Specifications:

• Total Energy (kWh): 18.5
• Capacity[Ah]: 360
• Nominal Voltage [V]: 1.2 (48)
• Voltage Range[V]: 48-55
• Recommended Charge Current [A]: 150
• Max. Charge Current (Continuous)[A]: 180
• Max. Discharge Current (Continuous)[A]: 180
• Max. Pulse Current (for 10 sec) [A]: 200
• Charging Temperature[F]: 32 to 120
• Discharging Temperature[F]: 14 to 77
• Dimension [H xW x D, inch]: 20.3 x 20.3 x 42.2
• Weight[lbs] : 520
• Enclosure Protection Rating: IP55
• Mounting options: Floor standing
• Certificates: UL 1642, UL1973, UL9540
• Warranty: 10 Years
• Scalability: Maximum 20 in Parallel (370 kWh)
• Communication: CAN/RS485
• High Current Circuit Breaker: 250A
• Efficiency: >98%
