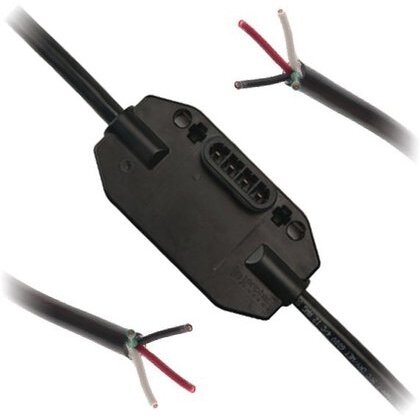

Enphase ET10-208-BULK Trunk Cable for M215 and M250, 208VAC, 5 Conductors, Portrait Orientation
ET10‑208‑BULK is a 208 VAC AC trunk cable used in Enphase Engage cabling systems for solar microinverters like the M215 / M250. It’s a bulk length AC cable with pre‑installed connectors spaced along it, designed for 208 V three‑phase solar array installations in portrait orientation (modules mounted vertically).
Technical Specifications:
- Voltage Type: 208 VAC
- Conductor Count: 5 conductors
- Orientation: Portrait layout
- Connector Spacing: ~1.025 m (40″) spacing
- Weight (approx): 221 lbs (100 kg)
- Cable temperature rating 90°C (194°F) wet/dry
-
Resources

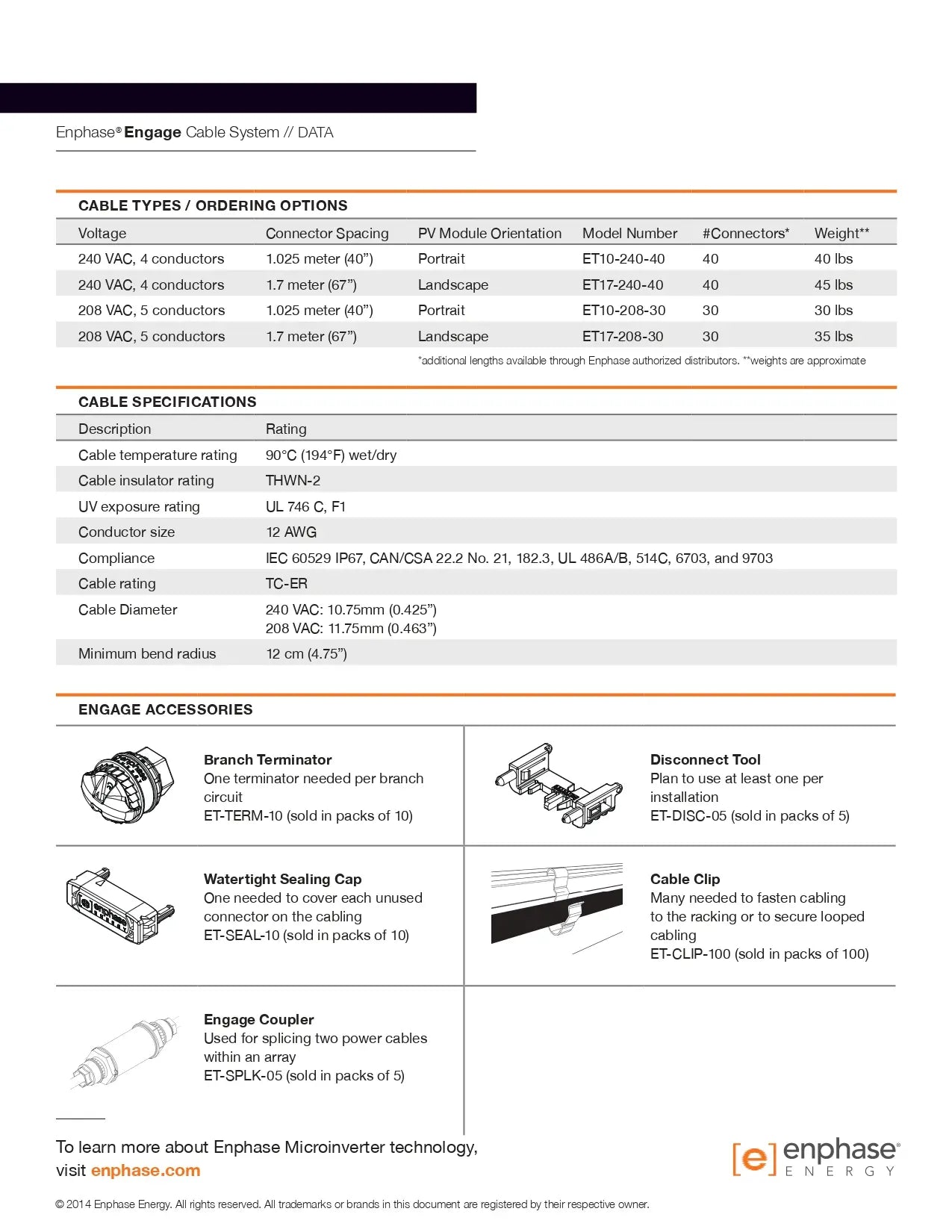

Datasheet
✔️ Datasheet
Quick Installation Guide
No Quick Installation Guide file resource available. Email support@solux.energy for file request.
Warranty
No Warranty file resource available. Email support@solux.energy for file request.
Download Spec Sheet
Designed in compliance with applicable BCI, DIN, BS and IEC standards. Tested in compliance to BCI and IEC standards.
