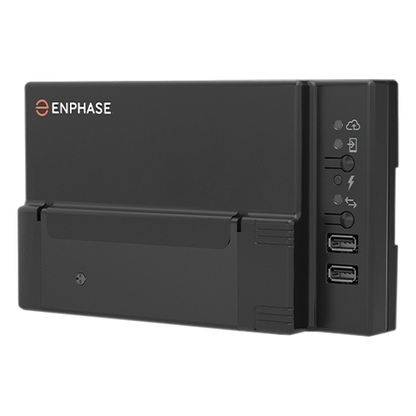

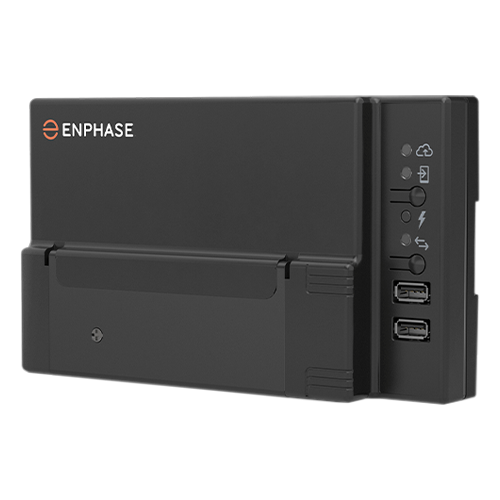

Enphase ENV-S-AB-120-A Envoy-S Standard With Power Cord

Enphase EN-ENV-S-AB-120-A 120/240VAC Envoy S Standard

The Envoy S Standard provides energy usage insights, remote software update capabilities, load management, and smart grid functionalities. An integral component of the Enphase Energy System, it bridges the communication between legacy microinverters on the roof with standard AC powerlines with the Enphase Cloud for remote monitoring through the Enphase App and Installer Portal. The Envoy S Metered can control grid management functions and monitor production.

Technical Specifications:

• 120/240 VAC split-phase power
• Integrated Wi-Fi
• Enables web-based monitoring and control
• Bidirectional communications for remote upgrades
• Number of microinverters polled: Up to 600
• Dimensions (WxHxD): 21.3 x 12.6 x 4.5 cm (8.4” x 5” x 1.8”)
• Weight: 17.6 oz (498 g)
• Environmental rating: IP3X, for installation indoors or in an NRTL-certified, NEMA type 3R enclosure.
• Altitude: To 2000 meters (6,560 feet)
• Integrated Wi-Fi: 802.11b/g/n
• Ethernet: 802.3, Cat5 Ethernet cable (not included)
• Cellular: Optional, order CELLMODEM-01
