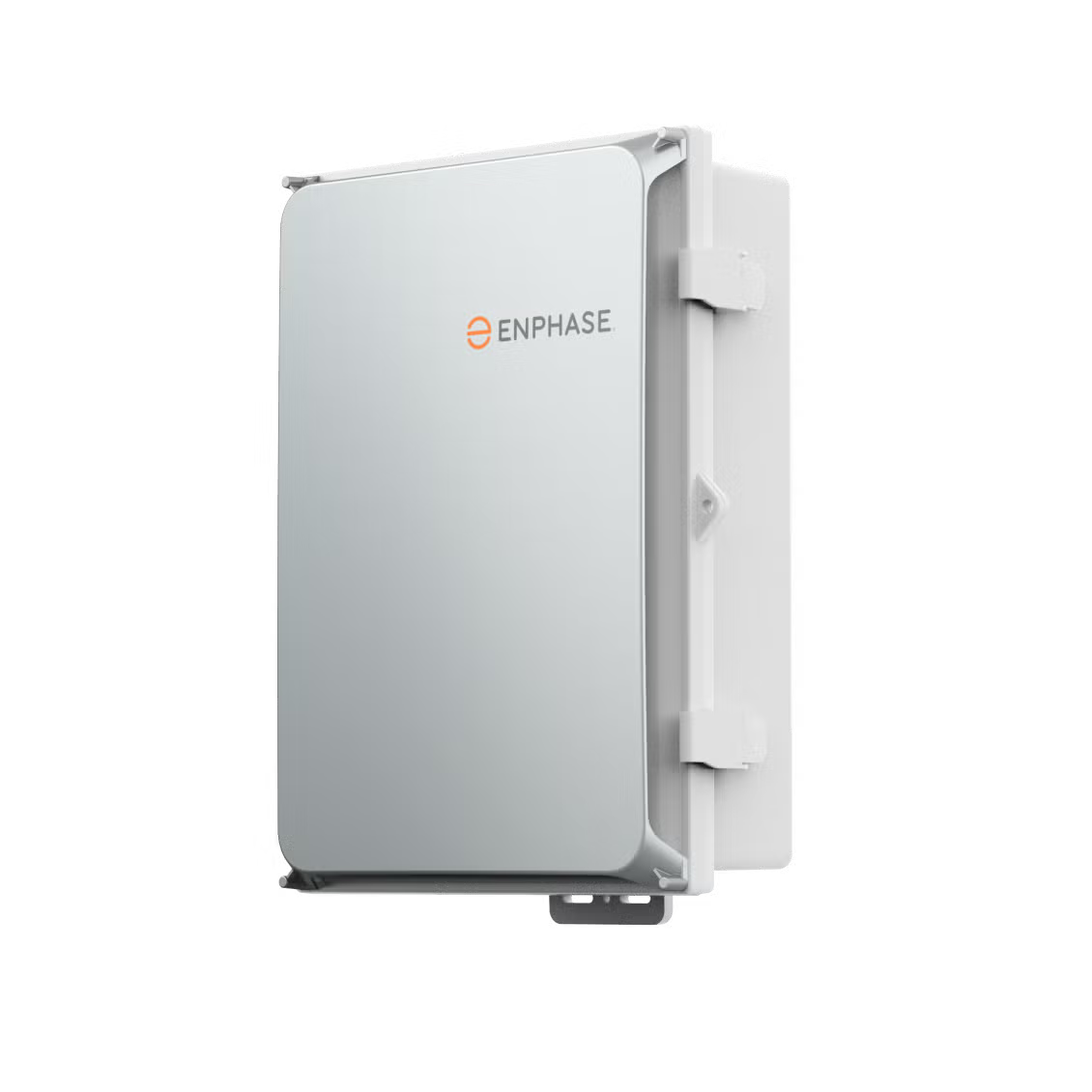

Enphase EN-X-IQ-AM1-240-5 80A 120/240VAC IQ Combiner 5 w/ IQ Gateway Printed Circuit Board

Enphase EN-X-IQ-AM1-240-5 80A 120/240VAC IQ Combiner 5 w/ IQ Gateway Printed Circuit Board

The IQ Combiner 5 consolidates interconnection equipment into a single enclosure, and streamlines IQ Series Microinverters and IQ Gateway installation by providing a consistent, pre-wired solution for residential applications. It uses Control Cable wiring for communication and is compatible with IQ System Controller 3/3G and IQ Battery 5P.

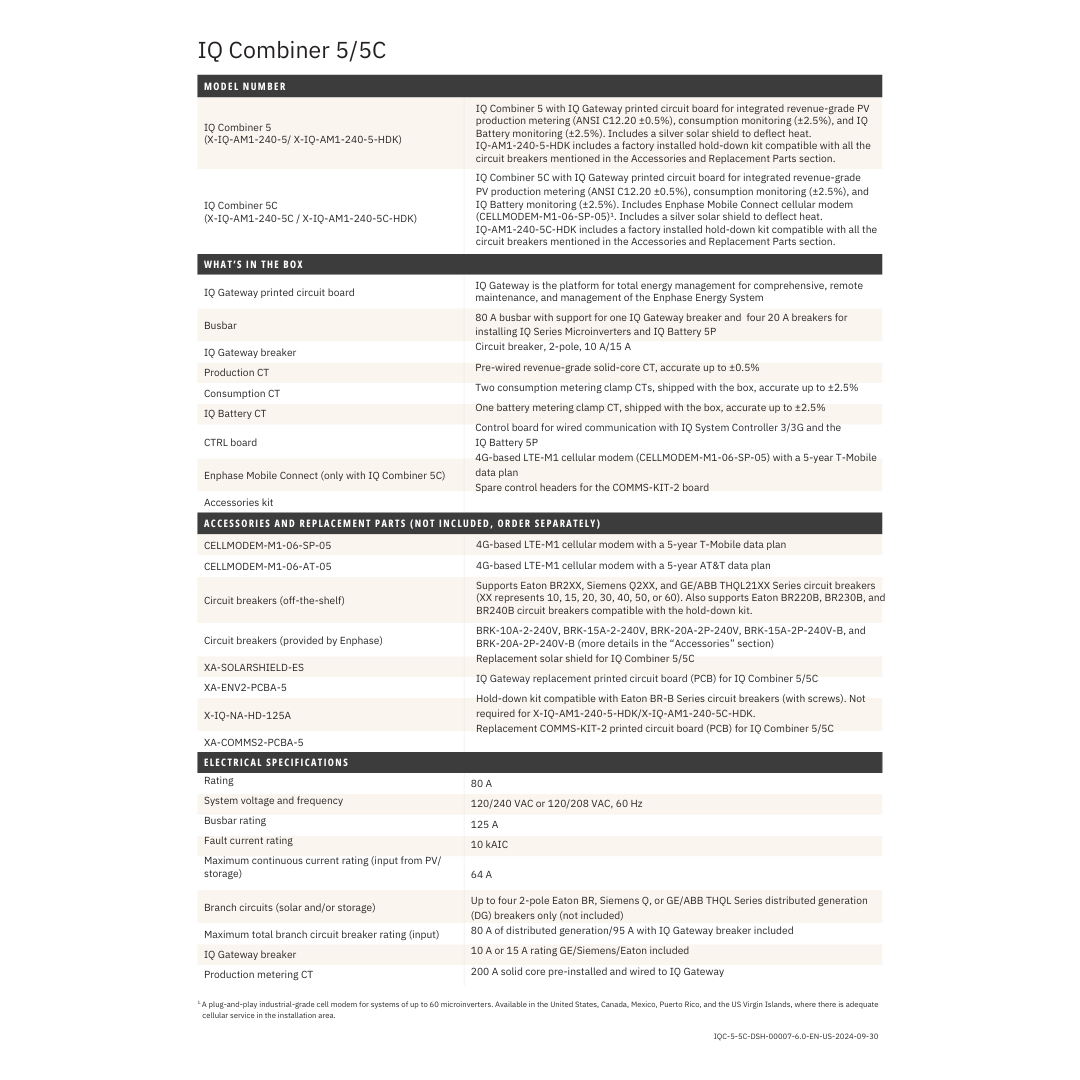

Technical Specifications:

• Rating: 80 A
• System voltage: 120/240 VAC, 60 Hz
• Eaton BR series busbar rating: 125 A
• Maximum continuous current rating (input from PV/storage): 64 A
• Branch circuits (solar and/or storage): Up to four 2-pole Eaton BR series distributed generation (DG) breakers only (not included)
• Maximum total branch circuit breaker rating (input): 80 A of distributed generation/95 A with IQ Gateway breaker included
• IQ Gateway breaker: 10 A or 15 A rating GE/Siemens/Eaton included
• Production metering CT: 200 A solid core pre-installed and wired to IQ Gateway
• Consumption monitoring CT (CT-200-CLAMP): A pair of 200 A clamp-style current transformers is included with the box
• IQ Battery metering CT: 200 A clamp-style current transformer for IQ Battery metering, included with the box
• Depth: 6.63 in
• Width: 14.75 in
• Height: 19.5 in
• Weight: 16.5 lbs
