Enphase EN-QD-12-13-120-CUT-01 QD cable (4x12AWG) 60-72 cell

MUST be ordered in multiples of full box qty: 3

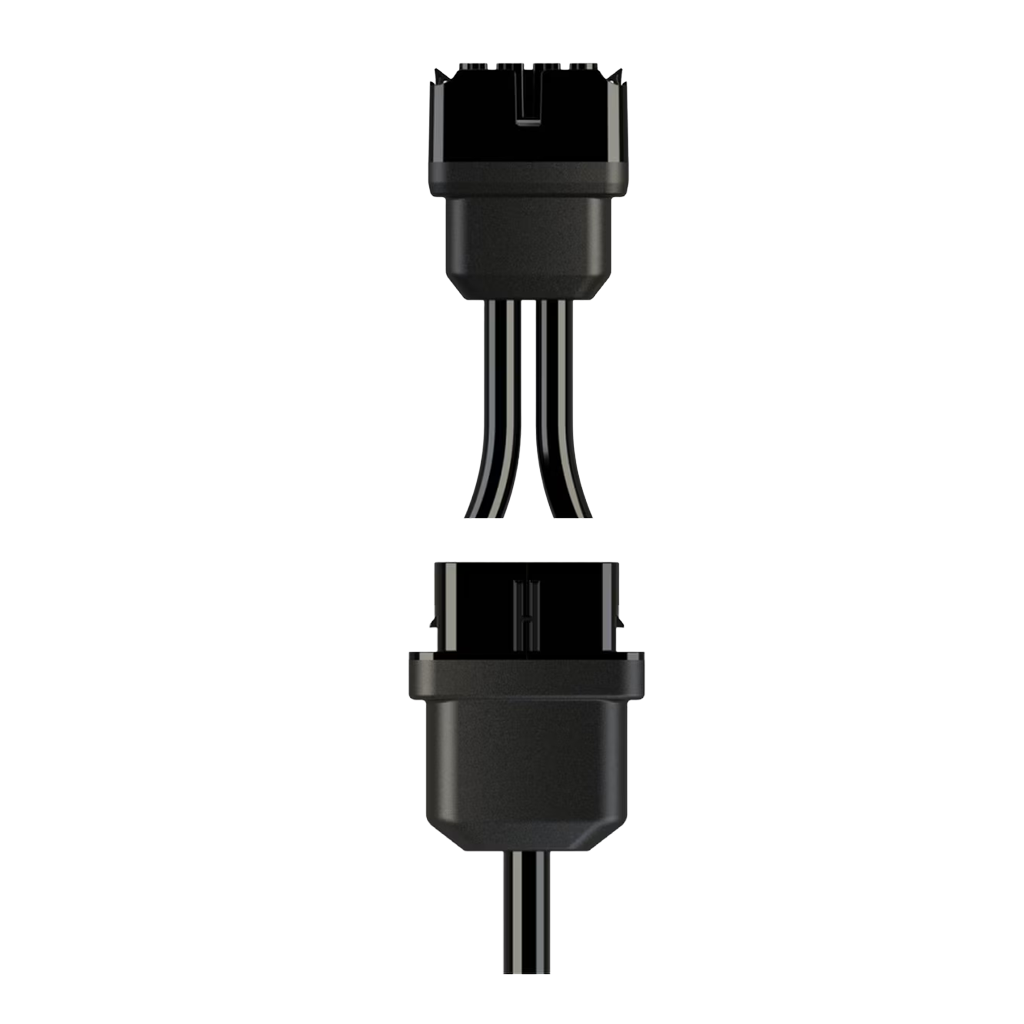

MUST BE SOLD IN MULTIPLES OF 3 CONNECTORS. WARNING: Cut cable lengths may include 2 sections of cable with a minimum of 12 micro connectors on the shorter cable length. Use of field wireable connectors and/or junction box may be required to follow design guidelines. · QD cable (4x12AWG) 60-72 cell. · Connector spacing is 1.7m (5.6ft). · 1.3m (4.3ft) max spacing between microinverters. · 4-pin male connectors plug directly into the IQ8 Commercial Microinverters. Connector count varies based in cut length and must be multiples of 3. · Center tap every 6 connectors, first center tap will be after 3 or 6 connectors and cut will start at connector 1 or 4

• Manufacturer Part Number: QD-12-13-120
• Shipping Weight: 1.42 lb
• Shipping Dimensions: 38 x 6 x 2 in
• Case Qty: 120
• Pallet Qty: 720
