Description

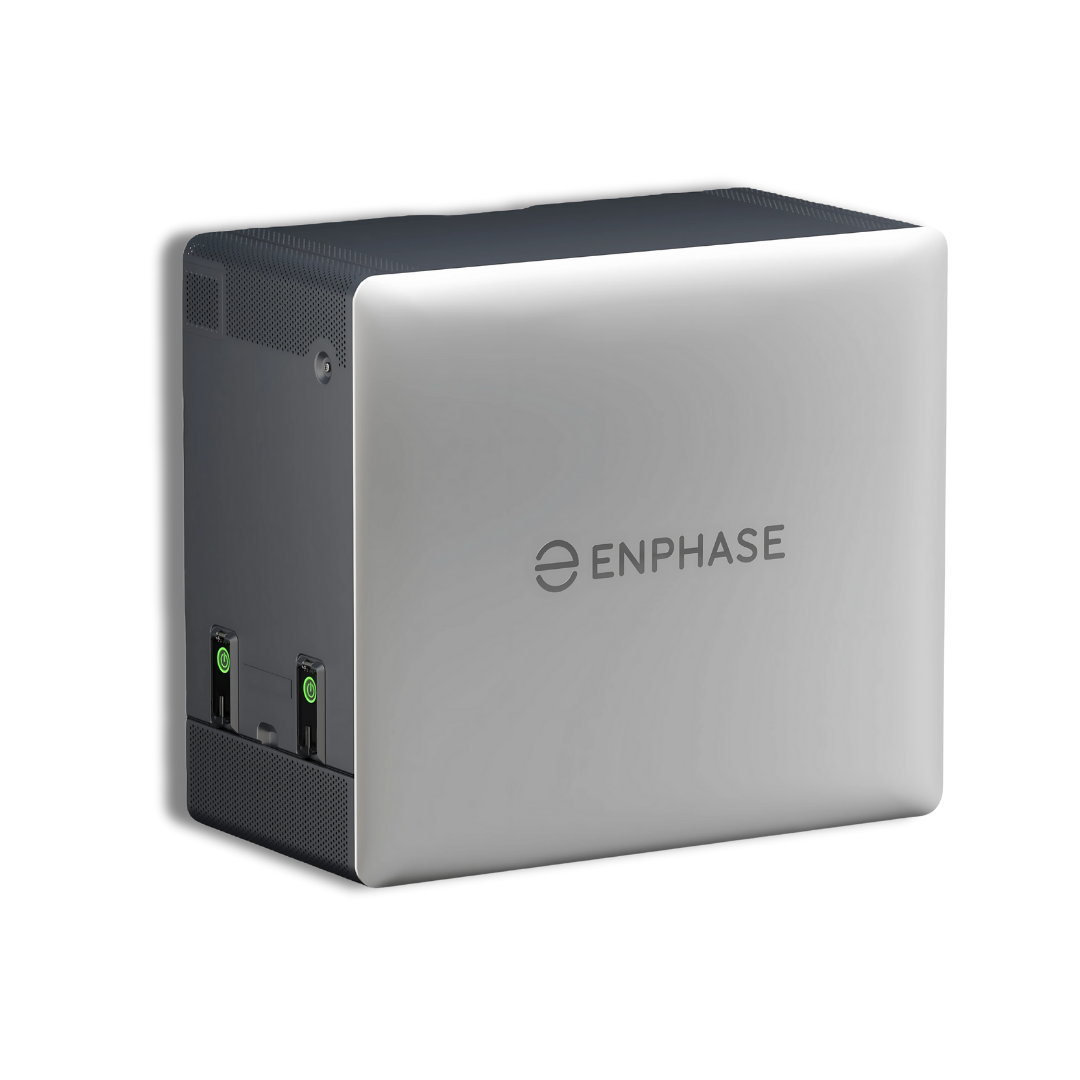

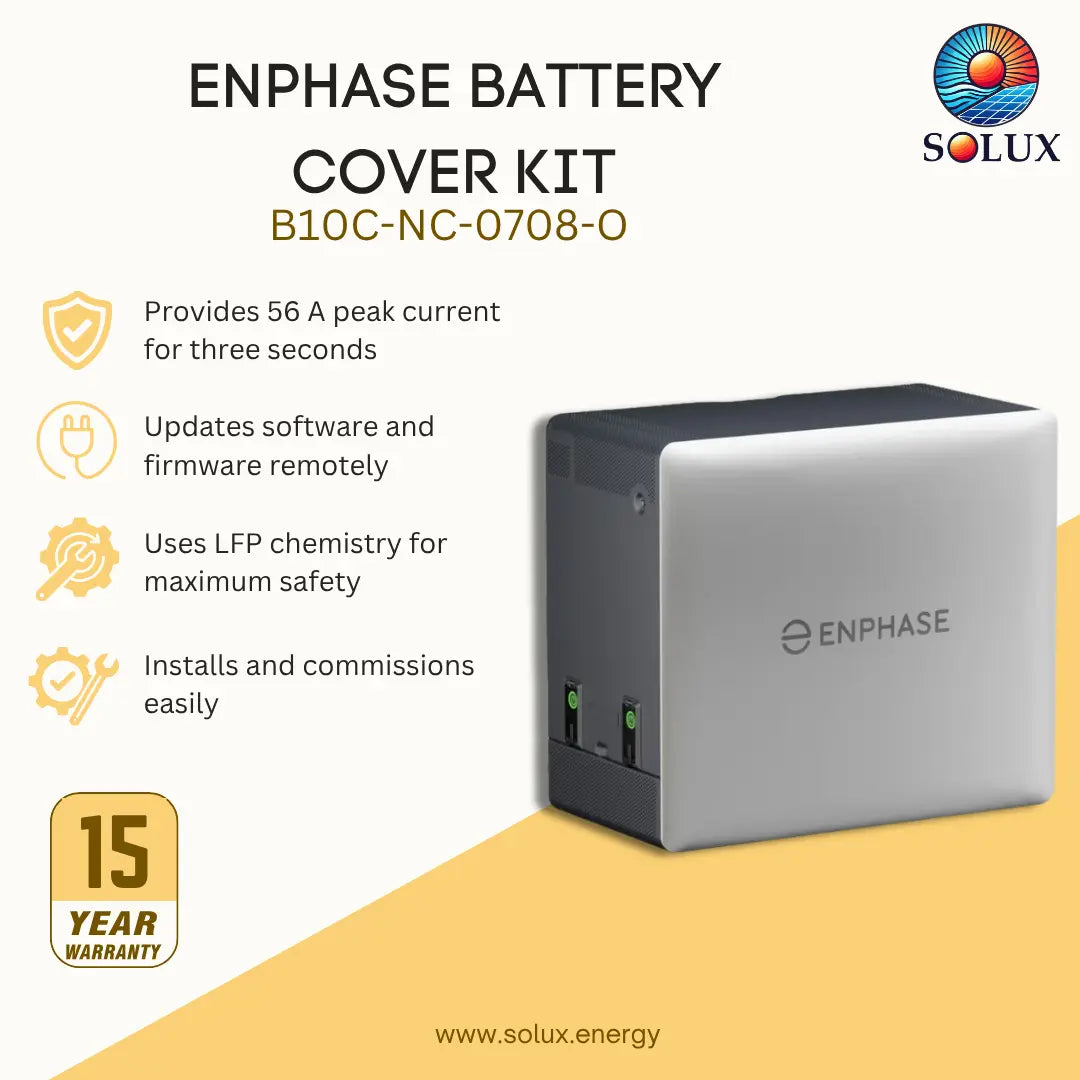

Enphase IQ Battery 10C Cover & Interconnect Kit (B10C-NC-0708-O)
The B10C-NC-0708-O is the essential enclosure and wiring kit for the Enphase IQ Battery 10C system. This all-in-one cover that houses two 5 kWh battery units provides a sleek, professional finish and includes the critical interconnect wiring required for a seamless installation. *Battery Sold Separately (part#: EN-B05-C01-US00-1-3)
Designed for the 4th-generation Enphase storage ecosystem, this component ensures your 10 kWh battery system maintains its compact, powerful, and reliable profile while supporting whole-home backup needs.
The Enphase 10C battery is fully compatible with IQ7 and IQ8 series microinverters. For full off-grid or whole-home backup functionality, the system may require the IQ Combiner 6C or the IQ Meter Collar.
-
System Performance & Key Specifications:
- Rated (continuous) output power: 7.08 kVA
- Rated output current (@240 VL-L AC~): 29.5 A
- Rated neutral current (@120 VL-N AC~): 24 A
- Interconnection: Single-phase
- Nominal voltage: 120/240 VAC~
- Nominal frequency: 60 Hz
- Usable capacity: 10.0 kWh
- Ambient operating temperature range (charging): −20°C to 50°C (−4°F to 122°F), Non-condensing
- Ambient operating temperature range (discharging): −20°C to 55°C (−4°F to 131°F), Non-condensing
- Chemistry: Lithium iron phosphate (LFP)
- Mounting: Wall-mount or pedestal-mount (sold separately)
-
Downloads
Datasheet
✔️ Download Datasheet
Quick Installation Guide
✔️ Download Installation Guide
Warranty
See warranty terms on the data sheet.

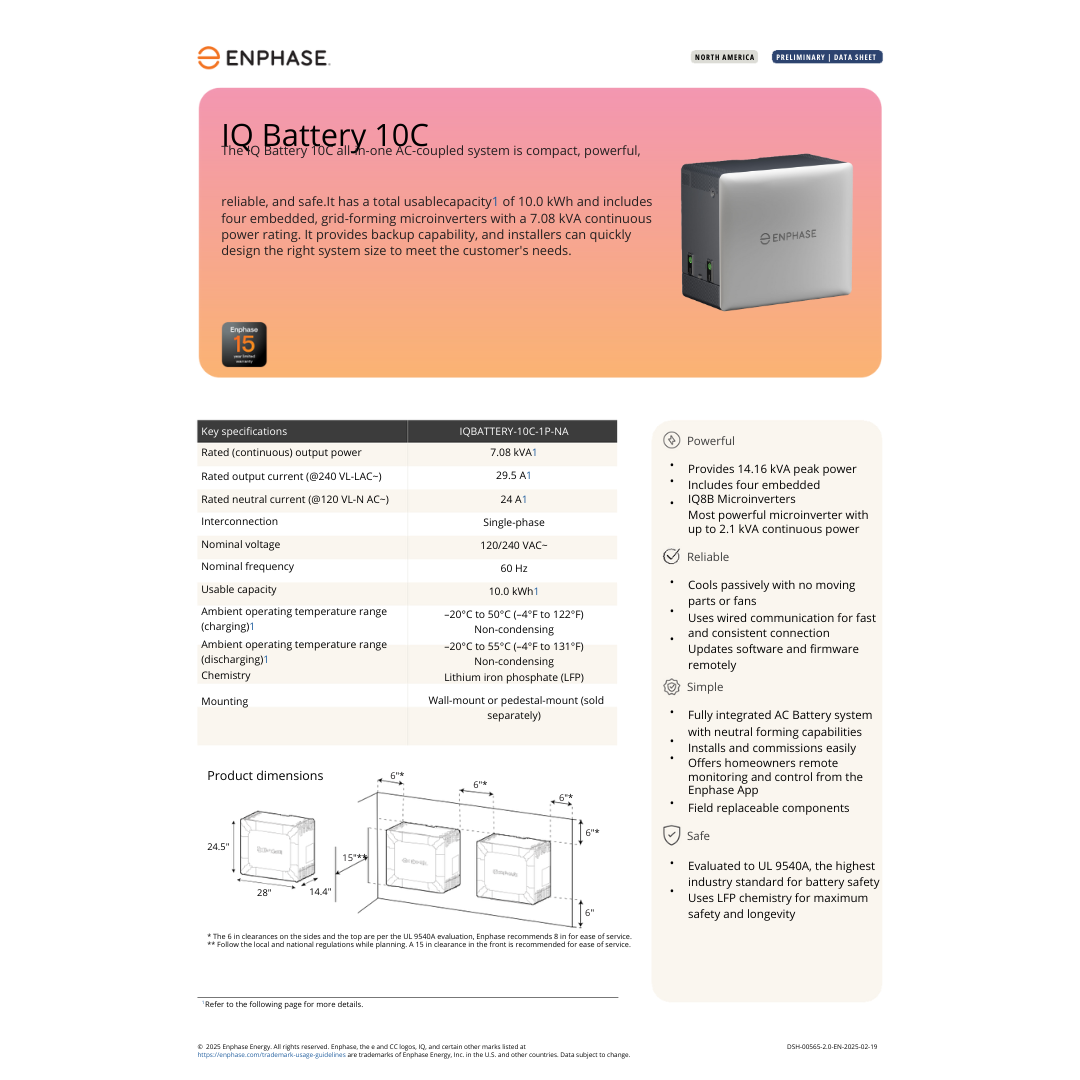

Download Spec Sheet
The IQ Battery 10C all-in-one AC-coupled system is compact, powerful, reliable, and safe. It has a total usable capacity of 10.0 kWh and includes four embedded, grid-forming microinverters with a 7.08 kVA continuous power rating.
