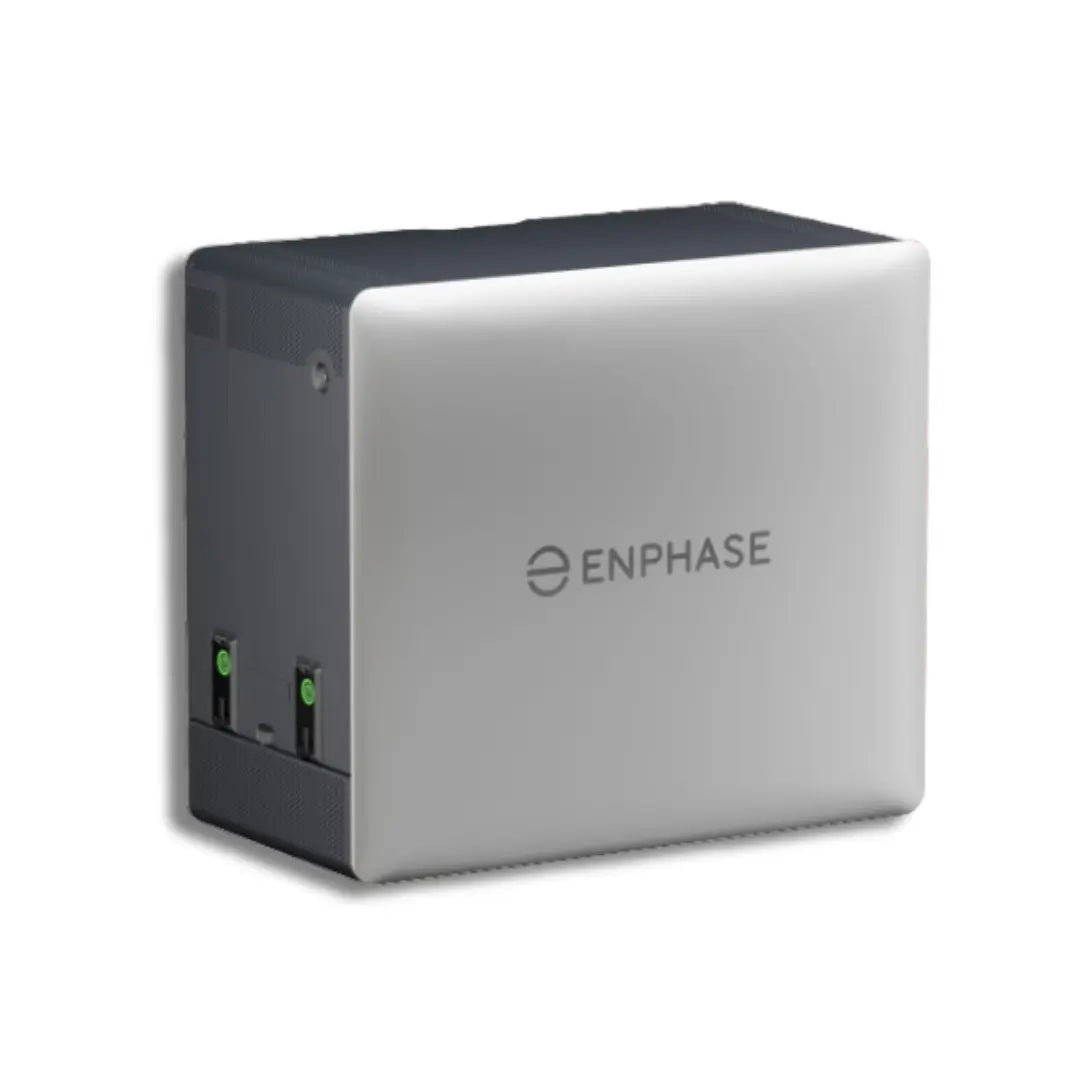

Enphase B05-C01-US00-1-3 5kWh Battery Unit & Mounting Bracket

Enphase IQ Battery 5P 5.0 kWh AC-Coupled Storage Unit (B05-C01-US00-1-3)

The Enphase IQ Battery 5P (B05-C01-US00-1-3) is an AC-coupled 5.0 kWh home energy storage solution. Equipped with six (6) embedded grid-forming IQ8D-BAT microinverters, this unit delivers 3.84 kVA of continuous AC power and up to 7.68 kVA of peak power.

Constructed with Lithium Iron Phosphate (LFP) cell chemistry, the IQ Battery 5P utilizes hardwired Control Wire communications for high-speed backup response times. This SKU includes one (1) 5.0 kWh battery unit and one (1) mounting bracket.

• Note: This unit is sold WITHOUT the ID cover. The cover must be ordered separately (SKU: EN-B10C-NC-0708-O or B05-C-0550-O depending on your configuration).

Performance Highlights:

• Instantaneous Response: New wired communication system for high-speed, reliable backup.
• 3.84 kVA Continuous Power: Delivers nearly double the output capacity of previous 5kWh generations.
• 15-Year Warranty: Industry-leading limited warranty for long-term home energy security.
• Chemistry: Lithium Iron Phosphate (LFP) for maximum safety and durability.

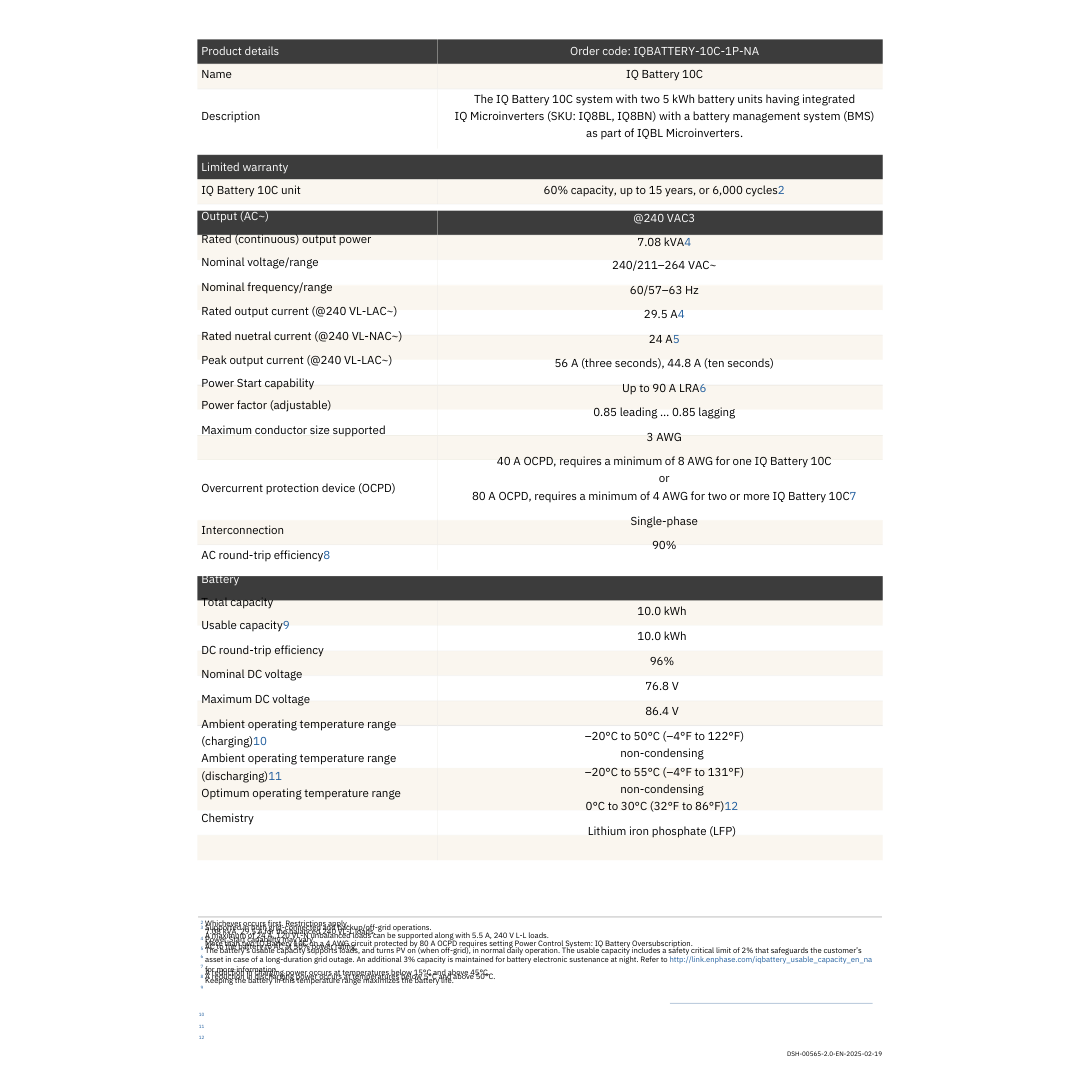

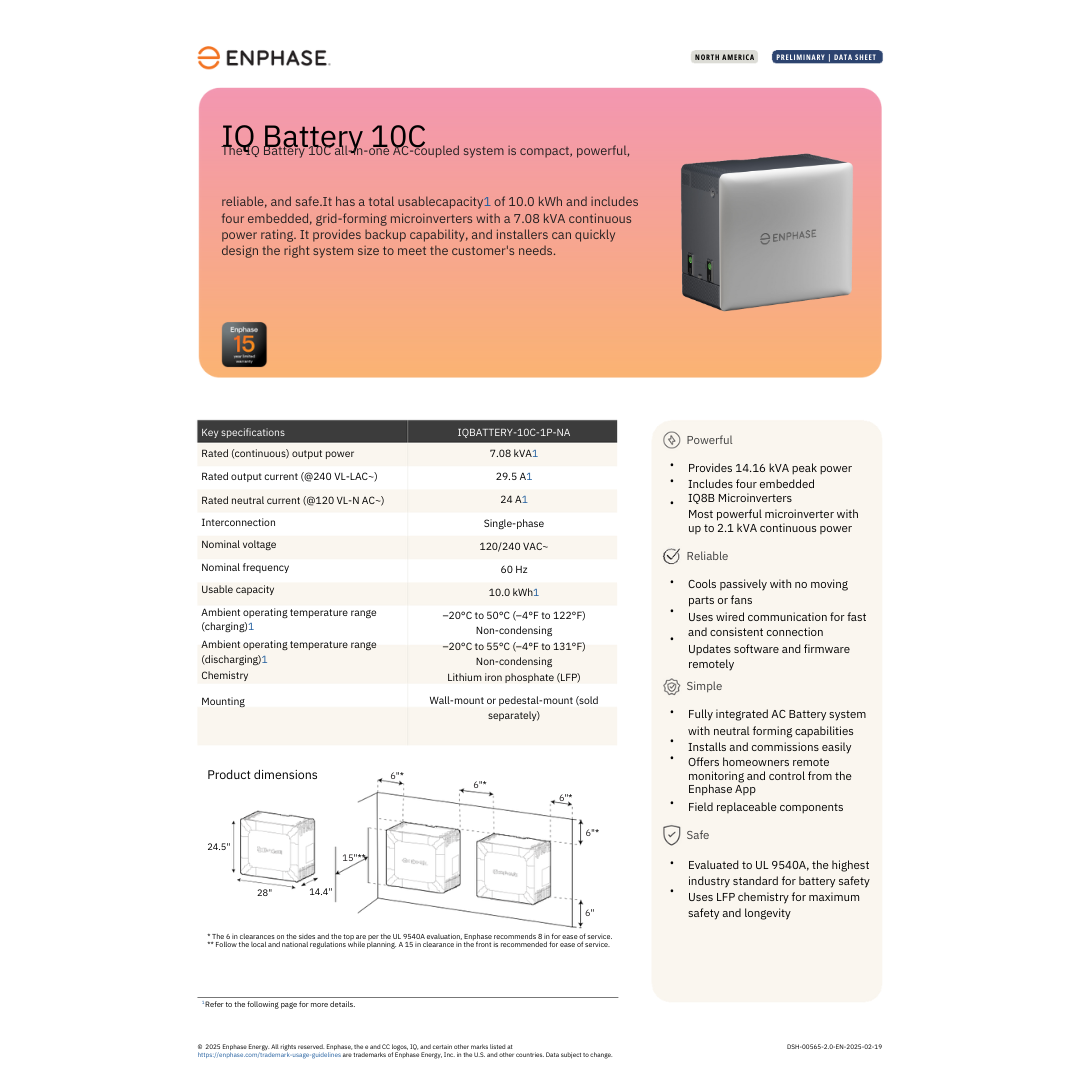

Technical Specifications:

• Rated (continuous) output power: 7.08 kVA
• Rated output current (@240 V_L-L AC~): 29.5 A
• Rated neutral current (@120 V_L-N AC~): 24 A
• Interconnection: Single-phase
• Nominal voltage: 120/240 VAC~
• Nominal frequency: 60 Hz
• Usable capacity: 10.0 kWh
• Ambient operating temperature range (charging): −20°C to 50°C (−4°F to 122°F), Non-condensing
• Ambient operating temperature range (discharging): −20°C to 55°C (−4°F to 131°F), Non-condensing
• Chemistry: Lithium iron phosphate (LFP)
• Mounting: Wall-mount or pedestal-mount (sold separately)
